Product details

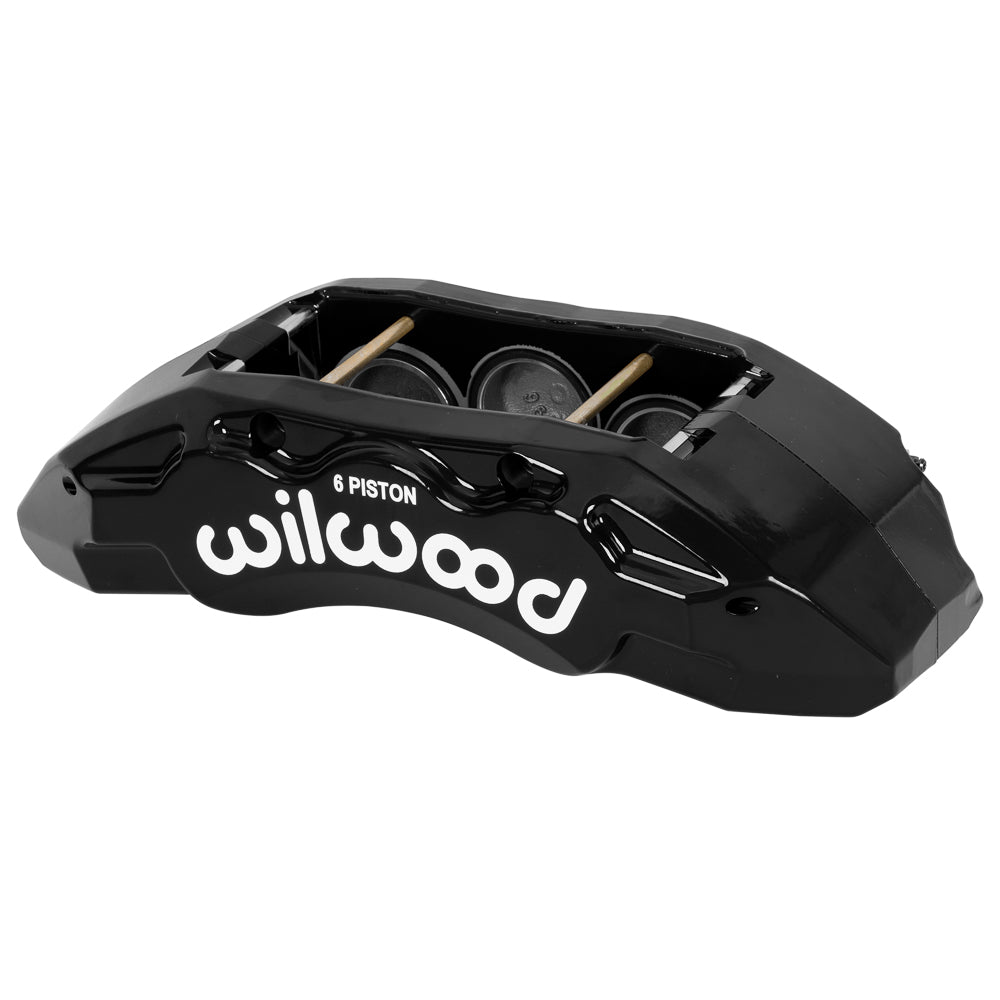

The black right front TX6-DM is a Wilwood six-piston component for the 2011–2019 GM heavy-duty truck brake arrangement. Its 2.00/1.88/1.88-inch stainless pistons and 11.22-inch direct-lug centers distinguish the configuration from the later GM spindle version. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-17641-BK. Type: TX6-DM Forged Lug Mount caliper.
- Bore sequence 2.00/1.88/1.88 inches across 6 pistons. Piston construction: stainless steel; specified effective area 8.70 square inches.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Attachment geometry: lug mount with 11.22-inch centers; right hand.
- Construction and surface: forged aluminum, finished in Black Powder Coat.
- Rotor dimensions: outside diameter 15.00 inches; nominal width 1.50 inch, with width limits of 1.42–1.50 inch.
- Caliper component weight: approximately 14.6 lb.
- Pad fit uses shape 10120. Match the pad to the rotor and intended operating conditions.
- Piston dust boots: yes.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Match the 2011–2019 GM 2500/3500 conversion and corresponding rotor offset. Confirm the flexline and wheel-clearance envelope before installing the caliper, preserving the correct right-hand differential-piston orientation.
