Product details

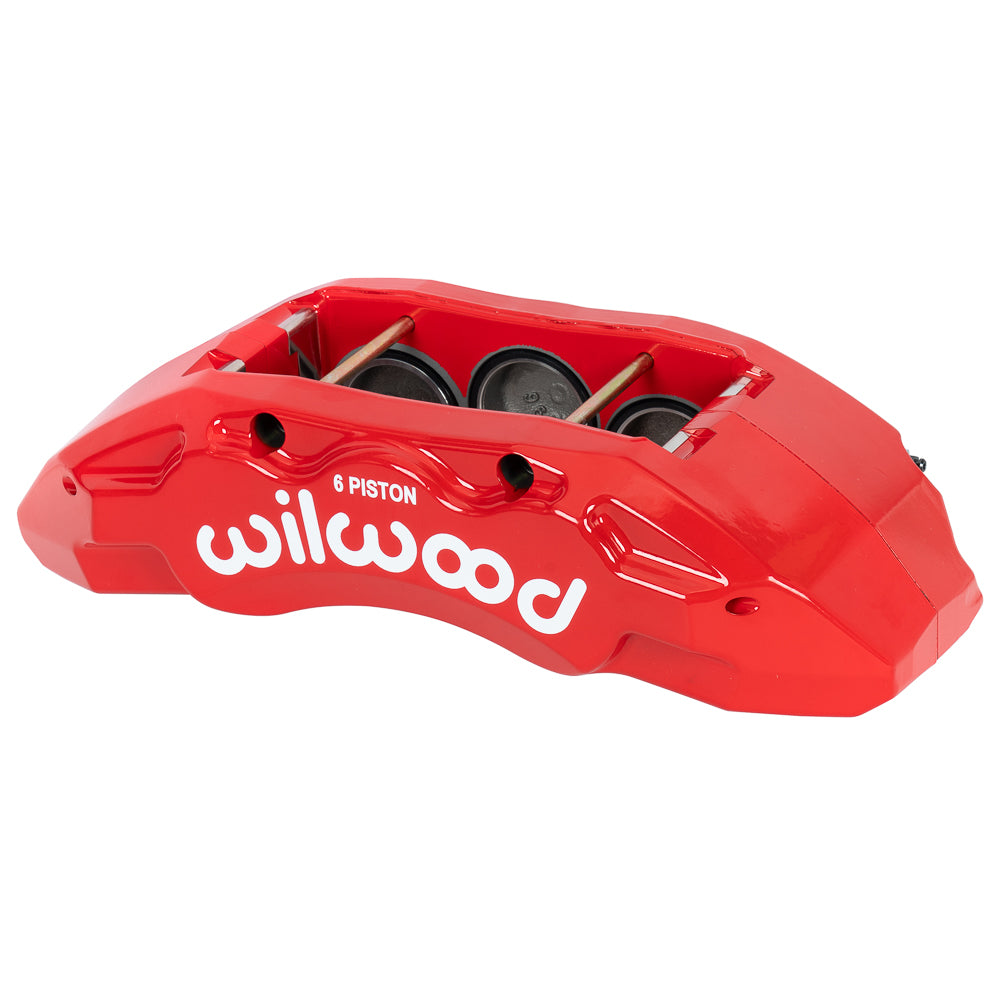

This red left front Wilwood TX6-DM supplies the six-piston caliper in the specified 2005–2012 Ford F-250/F-350 brake conversion. A forged direct-lug body holds the 2.00/1.88/1.88-inch piston sequence and retains the nominal 1.50-inch rotor channel. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17609-RD. Type: TX6-DM Forged Lug Mount caliper.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Mounting: lug, 8.47-inch centers; orientation: left hand.
- Piston arrangement: 6 stainless steel pistons; bore specification 2.00/1.88/1.88 inches. Effective piston area: 8.70 square inches.
- Rotor channel: 1.50-inch nominal width. Specified width limits: 1.42–1.50 inch; rotor outside diameter: 15.00 inches.
- Caliper body: forged aluminum; finish: Red Powder Coat.
- Piston dust boots: yes.
- Brake pad shape: 10120. Choose pad dimensions and friction material for the brake system.
- Caliper component weight: approximately 14.1 lb.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Compare the actual installed package with the appropriate early or late hose arrangement in the instructions. The matching 15.00-inch rotor, wheel space and correct left-hand orientation are required checks before replacing an individual caliper.
For help matching this caliper, contact PMB Performance with the brake-package details and rotor measurements. Our team has more than 20 years of experience with brake parts and fitment.
