Product details

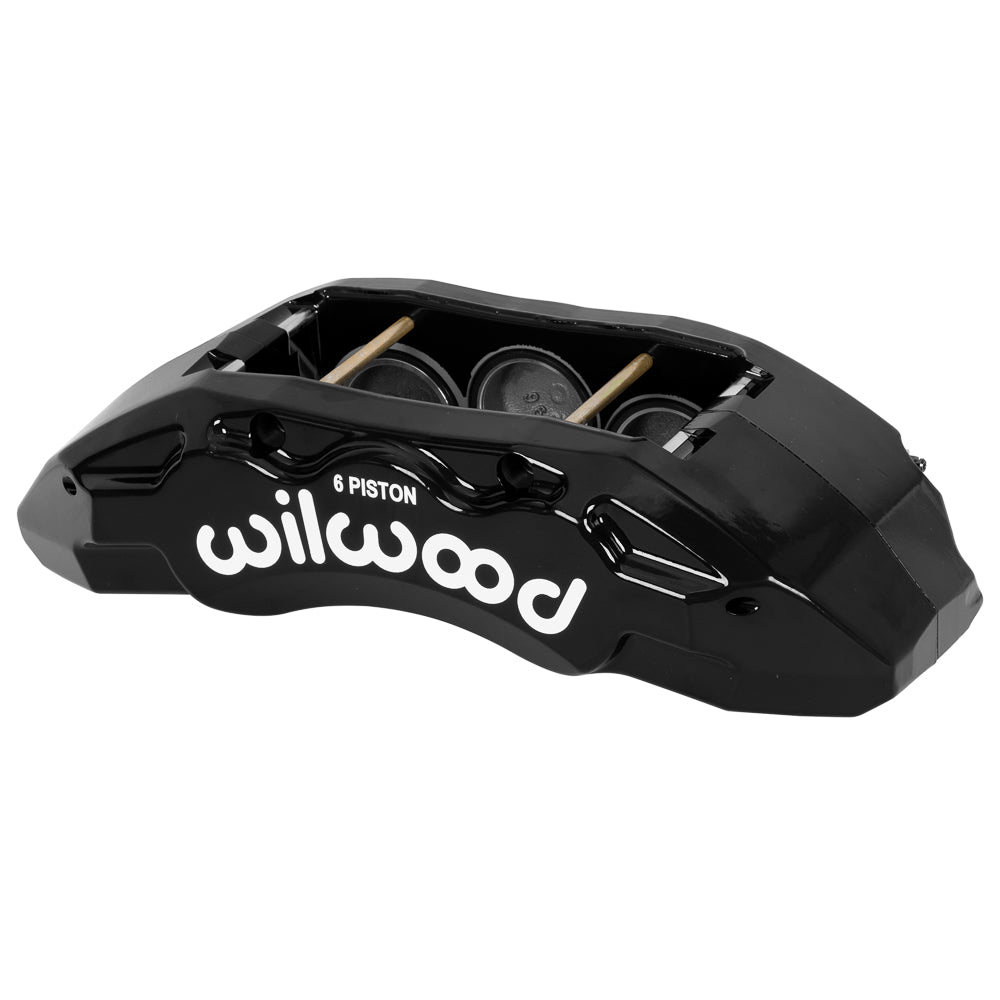

Black powder coat finishes this left front Wilwood TX6-DM for the earlier Ford truck conversion. Its six dust-booted stainless pistons, 8.47-inch mounting centers and nominal 1.50-inch rotor-width bridge identify the selected hardware. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977; its motorsport, street-performance and specialized range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17609-BK. Type: TX6-DM Forged Lug Mount caliper.
- Construction and surface: forged aluminum, finished in Black Powder Coat.
- Bore sequence 2.00/1.88/1.88 inches across 6 pistons. Piston construction: stainless steel; specified effective area 8.70 square inches.
- Attachment geometry: lug mount with 8.47-inch centers; left hand.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Rotor dimensions: outside diameter 15.00 inches; nominal width 1.50 inch, with width limits of 1.42–1.50 inch.
- Pad fit uses shape 10120. Match the pad to the rotor and intended operating conditions.
- Caliper component weight: approximately 14.1 lb.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Piston dust boots: yes.
Fitment & Compatibility
Verify whether the existing conversion follows the 2005–2010 or 2011–2012 F-250/F-350 installation, with the matching hose set. Check the 15.00-inch Wilwood rotor and clearances around the wheel and inlet fitting before assembly.
