Product details

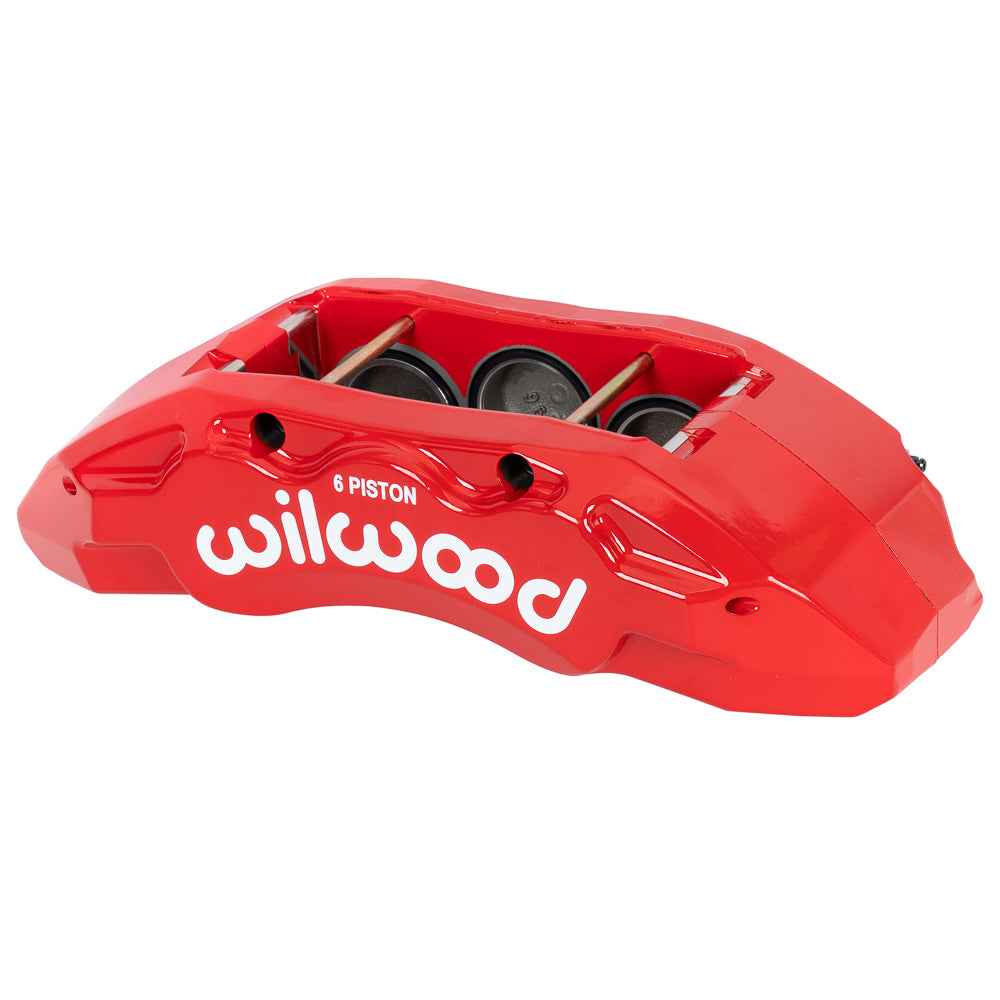

A red TX6-DM body houses this right front Wilwood caliper's six 2.00/1.88/1.88-inch stainless pistons. The 8.47-inch direct-lug pattern and nominal 1.50-inch rotor-width channel belong to the specified 2005–2012 Ford F-250/F-350 conversion. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-17608-RD. Type: TX6-DM Forged Lug Mount caliper.
- Piston arrangement: 6 stainless steel pistons; bore specification 2.00/1.88/1.88 inches. Effective piston area: 8.70 square inches.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Mounting: lug, 8.47-inch centers; orientation: right hand.
- Caliper body: forged aluminum; finish: Red Powder Coat.
- Rotor channel: 1.50-inch nominal width. Specified width limits: 1.42–1.50 inch; rotor outside diameter: 15.00 inches.
- Caliper component weight: approximately 14.1 lb.
- Brake pad shape: 10120. Choose pad dimensions and friction material for the brake system.
- Piston dust boots: yes.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Match the actual spindle and appropriate year-specific flexline package, including the split between 2005–2010 and 2011–2012 installations. Confirm the 15.00-inch rotor and wheel-clearance drawing along with the right-hand caliper orientation.
PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and mounting details for help comparing this configuration.
