Product details

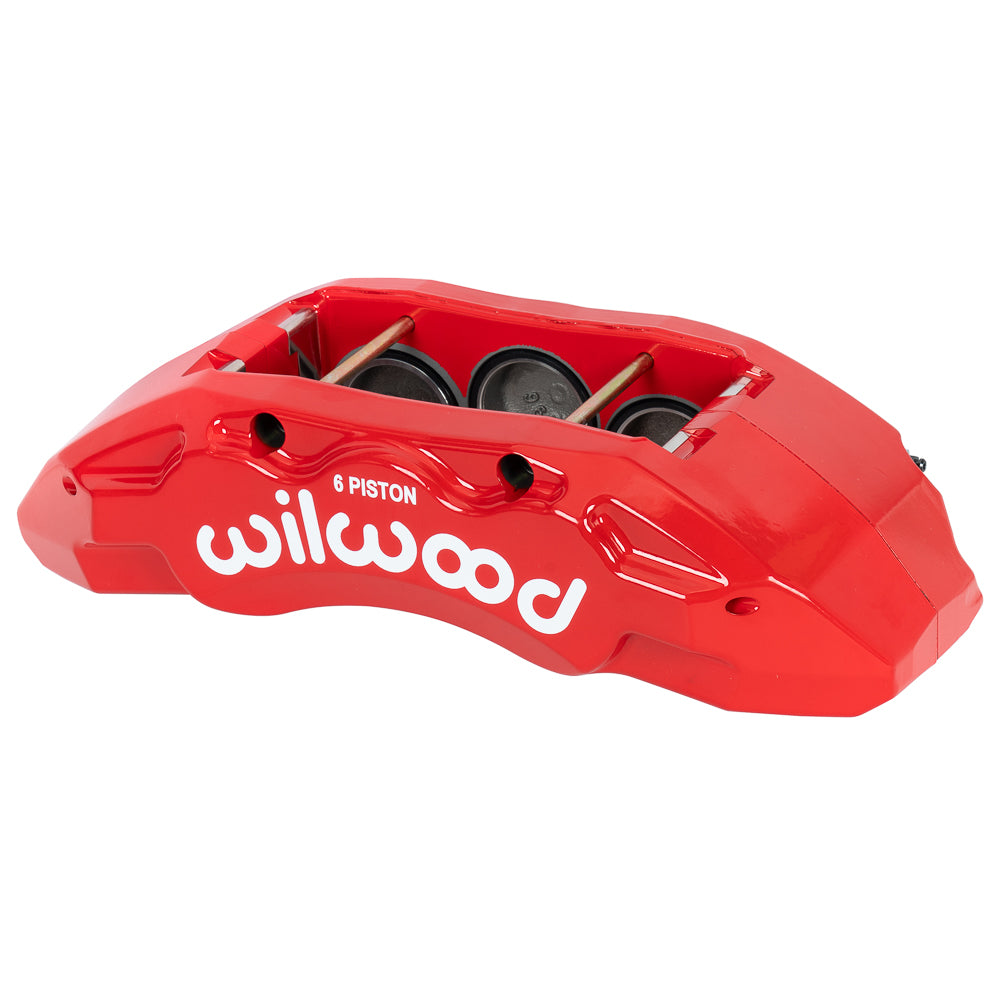

A red forged TX6-DM body holds six stainless pistons in this right front Wilwood caliper. It is the 8.70-square-inch configuration for the specified Ram 2500/3500 conversion, with a 1.50-inch nominal rotor-width channel. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977; its motorsport, street-performance and specialized range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17602-RD. Type: TX6-DM Forged Lug Mount caliper.
- Caliper body: forged aluminum; finish: Red Powder Coat.
- Piston arrangement: 6 stainless steel pistons; bore specification 2.00/1.88/1.88 inches. Effective piston area: 8.70 square inches.
- Mounting: lug, 10.24-inch centers; orientation: right hand.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Rotor channel: 1.50-inch nominal width. Specified width limits: 1.42–1.50 inch; rotor outside diameter: 15.00 inches.
- Brake pad shape: 10120. Choose pad dimensions and friction material for the brake system.
- Caliper component weight: approximately 14.2 lb.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Piston dust boots: yes.
Fitment & Compatibility
The documented package covers Ram 2500/3500 2014–2023 and uses a matching 15.00-inch Wilwood rotor. Confirm direct-lug attachment, line fittings and wheel clearance together; the caliper by itself does not provide the conversion's rotor or plumbing.
