Product details

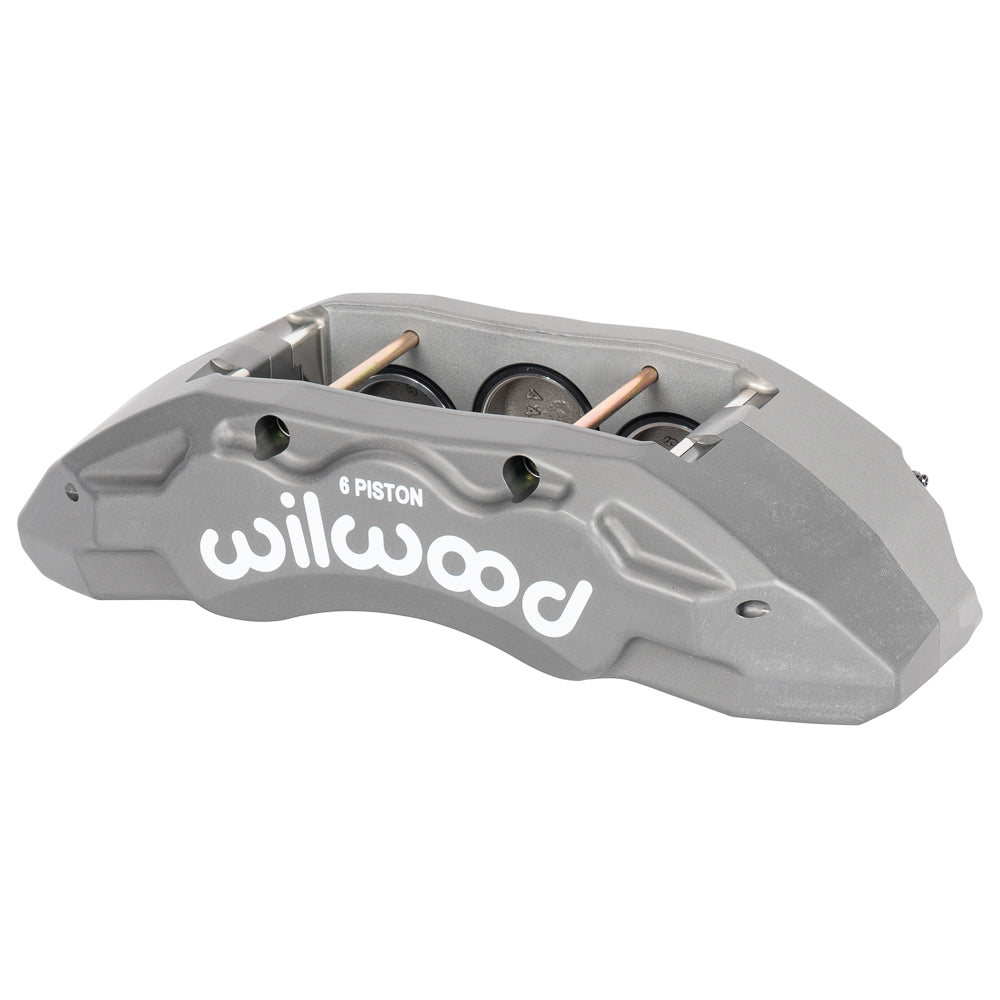

The anodized right front Wilwood TX6-DM is the 10.24-inch lug-center version used by the documented Ram 2500/3500 brake conversion. Six stainless pistons operate in a forged aluminum body, with 8.70 square inches of effective area and a nominal 1.50-inch rotor channel. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-17602. Type: TX6-DM Forged Lug Mount caliper.
- 6-piston hydraulic layout with 2.00/1.88/1.88-inch bores and 8.70 sq in of effective area; piston type: stainless steel.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- 10.24-inch-center lug attachment, right hand orientation.
- Type III Anodize finish on a forged aluminum body.
- Nominal rotor width 1.50 inch; compatible width range 1.42–1.50 inch. Rotor diameter specification: 15.00 inches.
- Caliper component weight: approximately 14.2 lb.
- Compatible pad profile 10120; confirm thickness and compound for the installation.
- Piston dust boots: yes.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Match the Ram 2500/3500 2014–2023 application to the complete Wilwood rotor and hose arrangement. Check spindle geometry, rotor offset and wheel clearance; matching the truck name does not establish stock-rotor compatibility.
PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and mounting details for help comparing this configuration.
