Product details

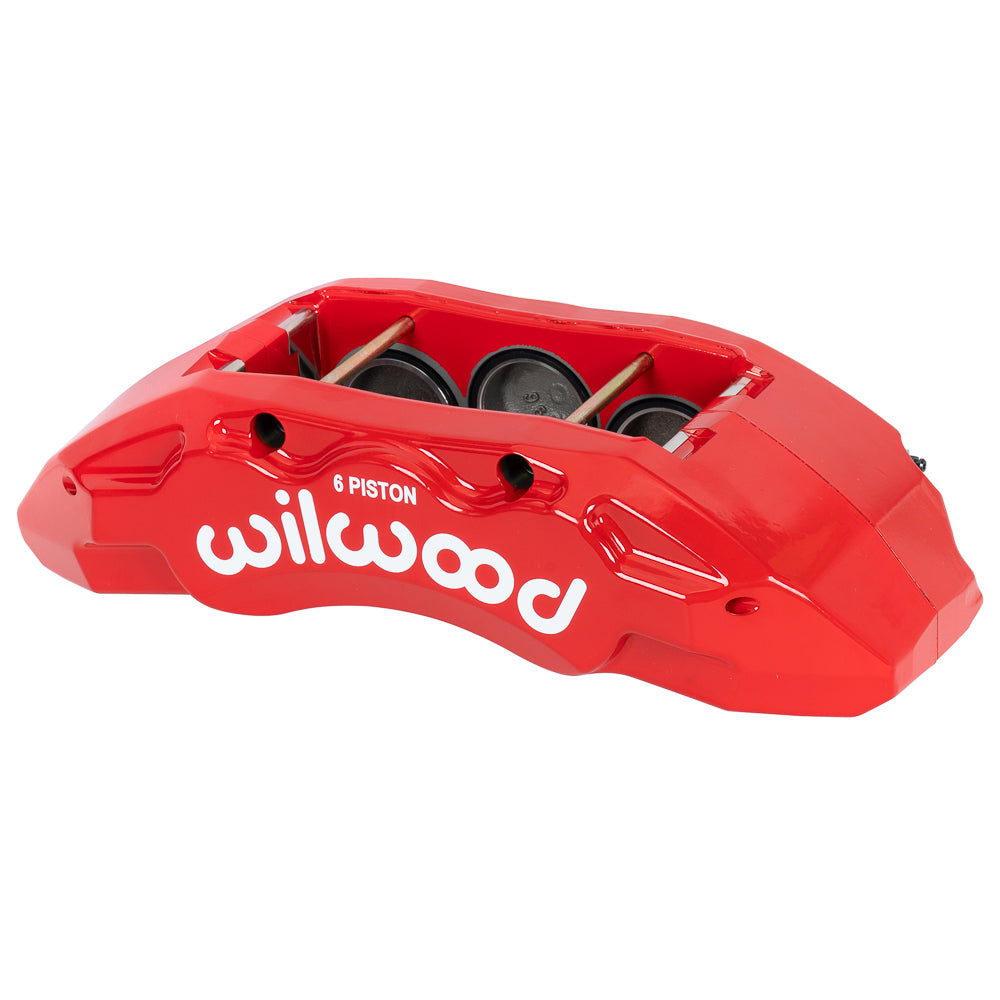

This red left front Wilwood TX6-DM is a six-piston replacement component for the documented Ford F-250/F-350 conversion. A nominal 1.50-inch rotor-width channel and 8.70-square-inch effective area accompany the forged direct-lug body. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17595-RD. Type: TX6-DM Forged Lug Mount caliper.
- Mounting: lug, 10.00-inch centers; orientation: left hand.
- Rotor channel: 1.50-inch nominal width. Specified width limits: 1.42–1.50 inch; rotor outside diameter: 15.00 inches.
- Brake pad shape: 10120. Choose pad dimensions and friction material for the brake system.
- Piston arrangement: 6 stainless steel pistons; bore specification 2.00/1.88/1.88 inches. Effective piston area: 8.70 square inches.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Caliper body: forged aluminum; finish: Red Powder Coat.
- Caliper component weight: approximately 14.3 lb.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Piston dust boots: yes.
Fitment & Compatibility
Use the 2013–2022 installation package and its 15.00-inch Wilwood rotors to evaluate fit. Confirm flexline routing and the wheel-clearance drawing before assembly, retaining the correct left-hand piston orientation.
