Product details

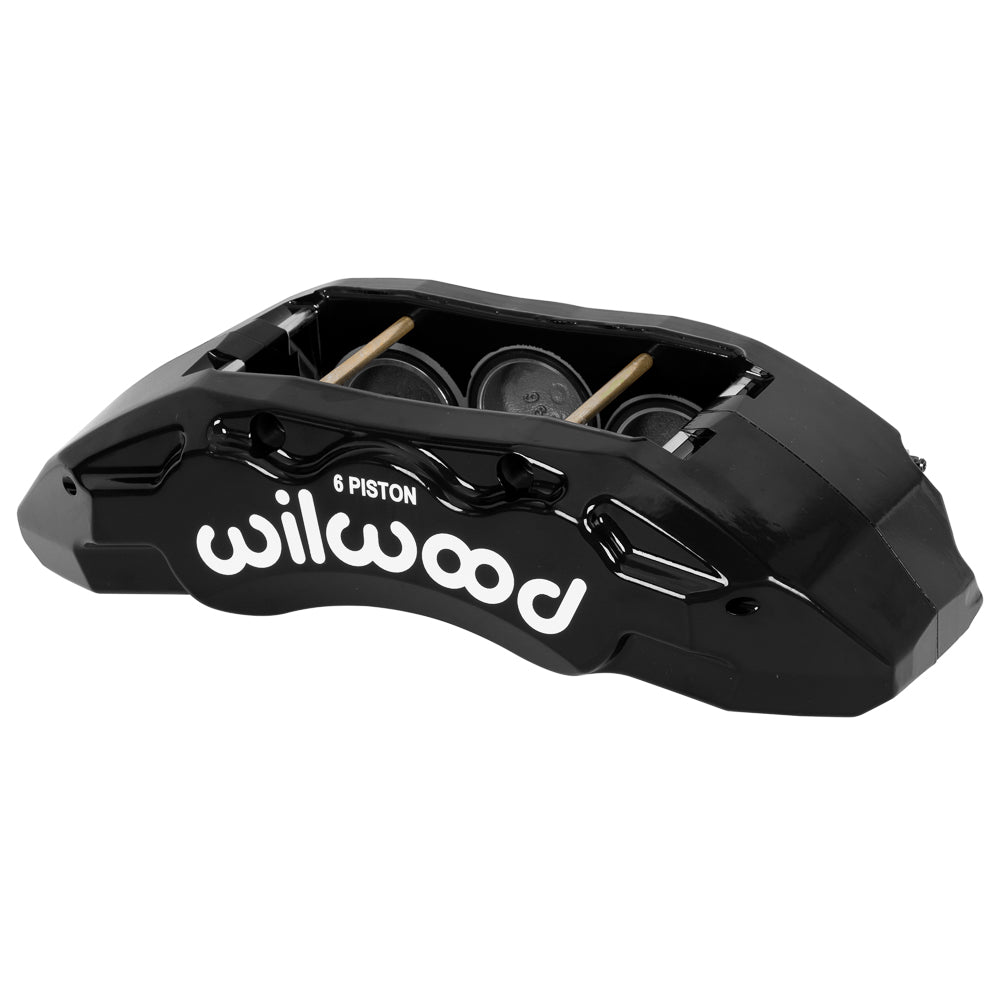

A black TX6-DM housing carries this Wilwood left front caliper's six stainless pistons. The 2.00/1.88/1.88-inch bore sequence and 10.00-inch direct-lug centers suit the defined Ford F-250/F-350 2013–2022 brake package. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977; its motorsport, street-performance and specialized range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17595-BK. Type: TX6-DM Forged Lug Mount caliper.
- Rotor dimensions: outside diameter 15.00 inches; nominal width 1.50 inch, with width limits of 1.42–1.50 inch.
- Bore sequence 2.00/1.88/1.88 inches across 6 pistons. Piston construction: stainless steel; specified effective area 8.70 square inches.
- Construction and surface: forged aluminum, finished in Black Powder Coat.
- Attachment geometry: lug mount with 10.00-inch centers; left hand.
- Pad fit uses shape 10120. Match the pad to the rotor and intended operating conditions.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Piston dust boots: yes.
- Caliper component weight: approximately 14.3 lb.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Compare the caliper with the installed conversion's rotor dimensions, spindle and line fittings. Check a nominal 1.50-inch rotor width and verify clearance around the wheel barrel, spokes and caliper retaining hardware.
