Product details

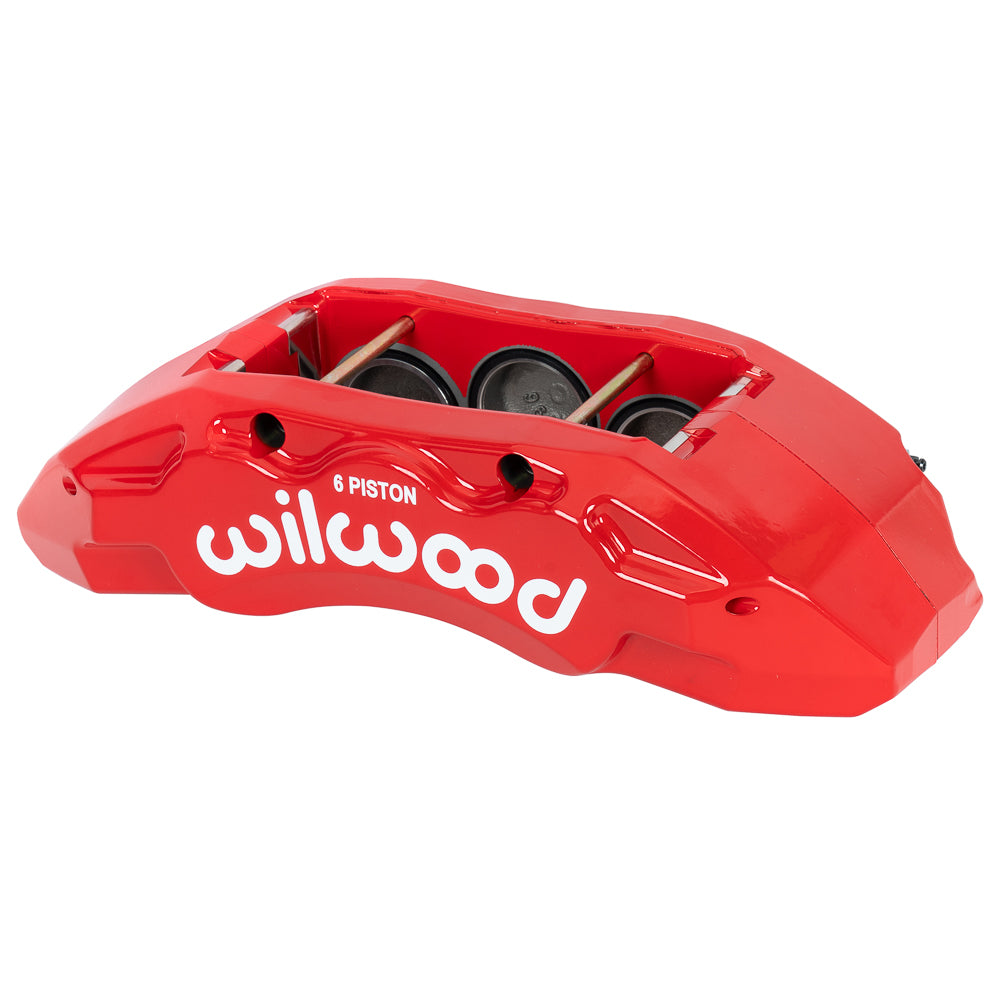

Red powder coat finishes this right front Wilwood TX6-DM, a component of the specified 2013–2022 Ford F-250/F-350 brake conversion. Its forged housing carries six dust-booted stainless pistons, with a direct-lug arrangement on 10.00-inch centers. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-17594-RD. Type: TX6-DM Forged Lug Mount caliper.
- Piston arrangement: 6 stainless steel pistons; bore specification 2.00/1.88/1.88 inches. Effective piston area: 8.70 square inches.
- Rotor channel: 1.50-inch nominal width. Specified width limits: 1.42–1.50 inch; rotor outside diameter: 15.00 inches.
- Mounting: lug, 10.00-inch centers; orientation: right hand.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Caliper body: forged aluminum; finish: Red Powder Coat.
- Brake pad shape: 10120. Choose pad dimensions and friction material for the brake system.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Piston dust boots: yes.
- Caliper component weight: approximately 14.3 lb.
Fitment & Compatibility
Confirm the conversion rotor's 15.00-inch diameter and its 1.42–1.50-inch permissible width range. Verify hose fit and wheel space with the exact installation package before replacing an individual caliper.
