Product details

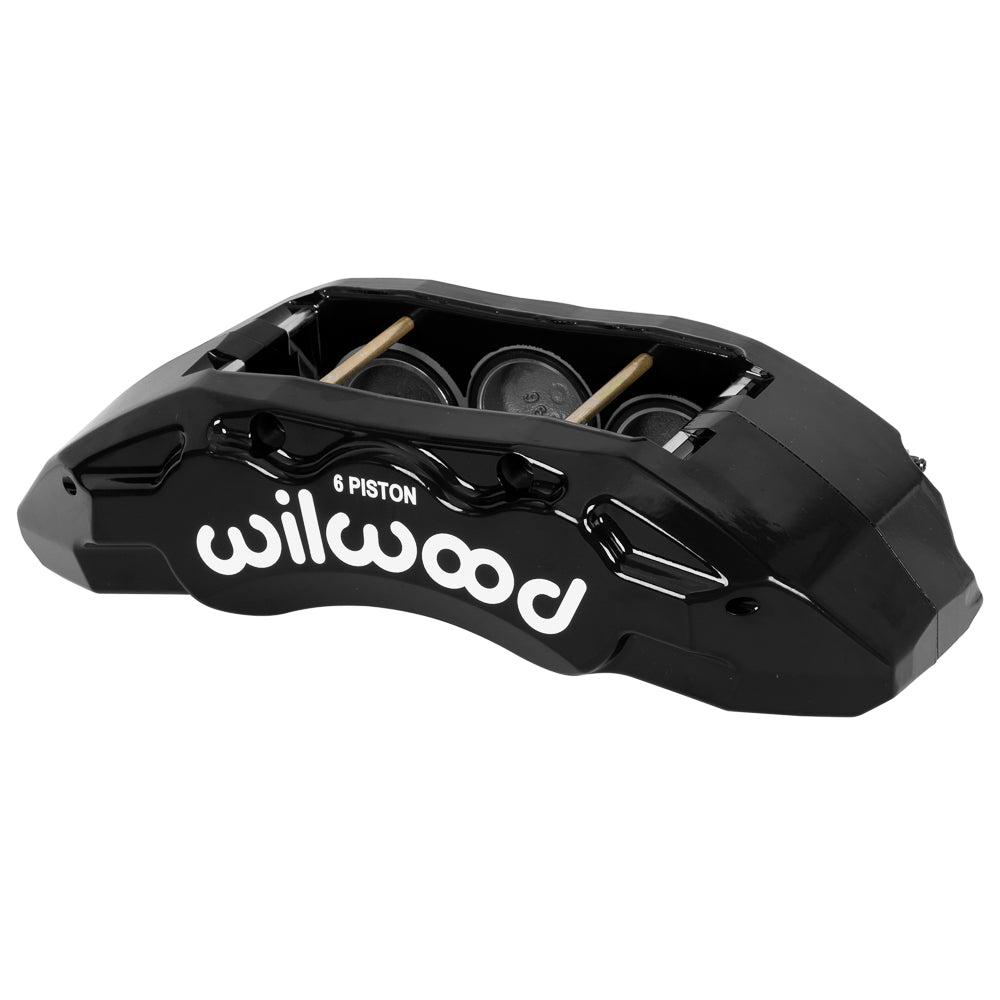

The black right front TX6-DM provides the six-piston caliper in this Wilwood Ford F-250/F-350 arrangement. Its 2.00/1.88/1.88-inch bores supply 8.70 square inches of effective area, and the body attaches through a 10.00-inch direct-lug pattern. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17594-BK. Type: TX6-DM Forged Lug Mount caliper.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Attachment geometry: lug mount with 10.00-inch centers; right hand.
- Bore sequence 2.00/1.88/1.88 inches across 6 pistons. Piston construction: stainless steel; specified effective area 8.70 square inches.
- Rotor dimensions: outside diameter 15.00 inches; nominal width 1.50 inch, with width limits of 1.42–1.50 inch.
- Construction and surface: forged aluminum, finished in Black Powder Coat.
- Piston dust boots: yes.
- Pad fit uses shape 10120. Match the pad to the rotor and intended operating conditions.
- Caliper component weight: approximately 14.3 lb.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Match the 2013–2022 conversion package and the 15.00-inch-diameter Wilwood rotor with 1.50-inch width arrangement. Check the wheel drawing and inlet routing against the truck's actual equipment rather than relying on family appearance or model year alone.
