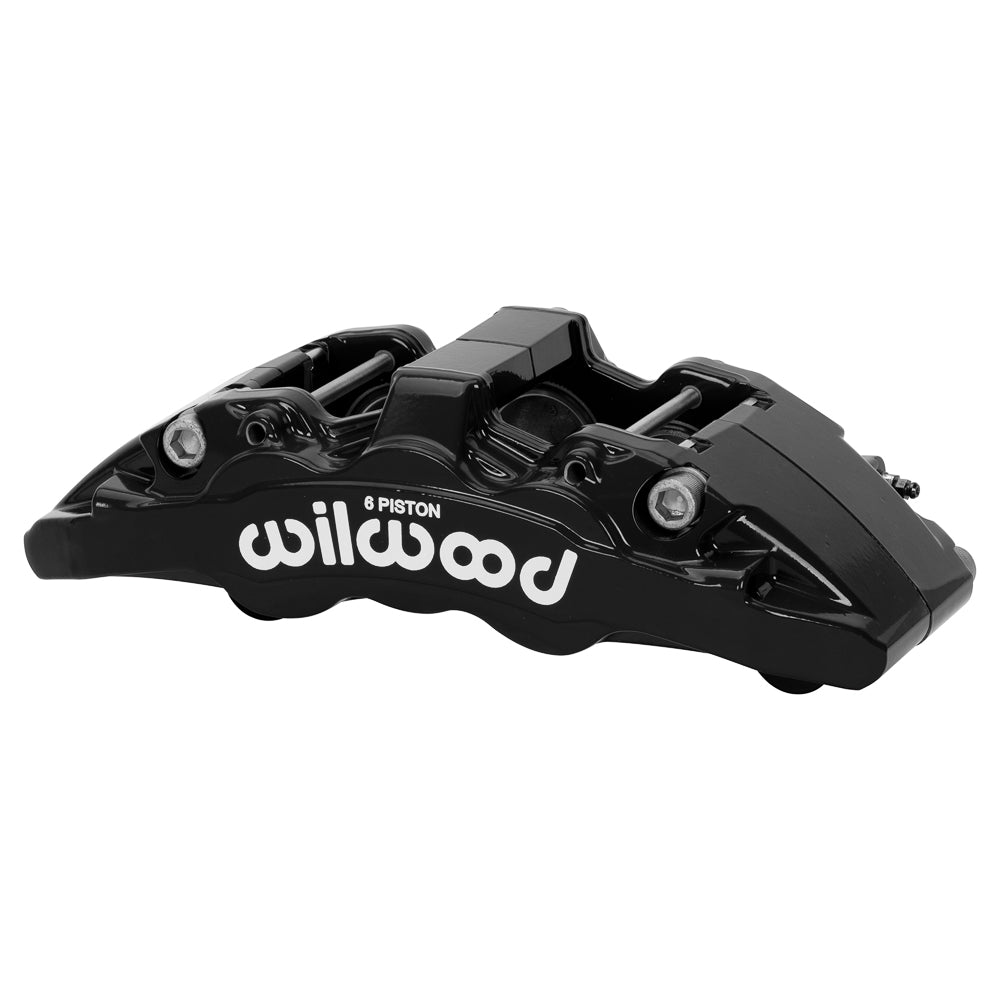

Wilwood Black Front Right Aero6-DM Caliper, Ram 1500 2013–2018 Conversion / Six Pistons: Black Aero6-DM caliper with white Wilwood lettering, open center bridge and end fittings visible.

Wilwood Black Front Right Aero6-DM Caliper, Ram 1500 2013–2018 Conversion / Six Pistons

SKU: 120-17591-BK

$796.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

For the 2013–2018 Ram 1500 Aero6-DM conversion, this is the black right front six-piston caliper. Internal fluid passages connect its opposing piston banks, and a 5.91-inch direct-lug pattern locates the forged body on the compatible spindle. Keeping the specified 6.52-square-inch effective area matters when replacing just one component in an established brake setup. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc braking systems for motorsport, street-performance and specialized applications, with a component range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-17591-BK. Type: AeroDM Lug Mount caliper.
  • Construction and surface: forged aluminum, finished in Black Powder Coat.
  • Attachment geometry: lug mount with 5.91-inch centers; right hand. 0.52-inch holes.
  • Bore sequence 1.75/1.62/1.62 inches across 6 pistons. Piston construction: stainless steel; specified effective area 6.52 square inches.
  • Pad fit uses shape 6617. Match the pad to the rotor and intended operating conditions.
  • Rotor dimensions: outside diameter 12.19–13.56 inches; nominal width 1.25 inch, with width limits of 1.10–1.25 inch.
  • Piston dust boots: no.
  • Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
  • Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
  • Caliper component weight: approximately 8.9 lb.

Fitment & Compatibility

Match the 2WD or 4WD Ram 1500 application with the complete conversion instructions. Check the rotor's 13.38-inch diameter, hat offset and nominal 1.25-inch width arrangement together, then inspect hose and wheel clearance with the caliper installed.

With 20+ years of experience, PMB Performance can help assess the brake hardware. Provide the caliper number, rotor dimensions and bracket measurements when asking about compatibility.
