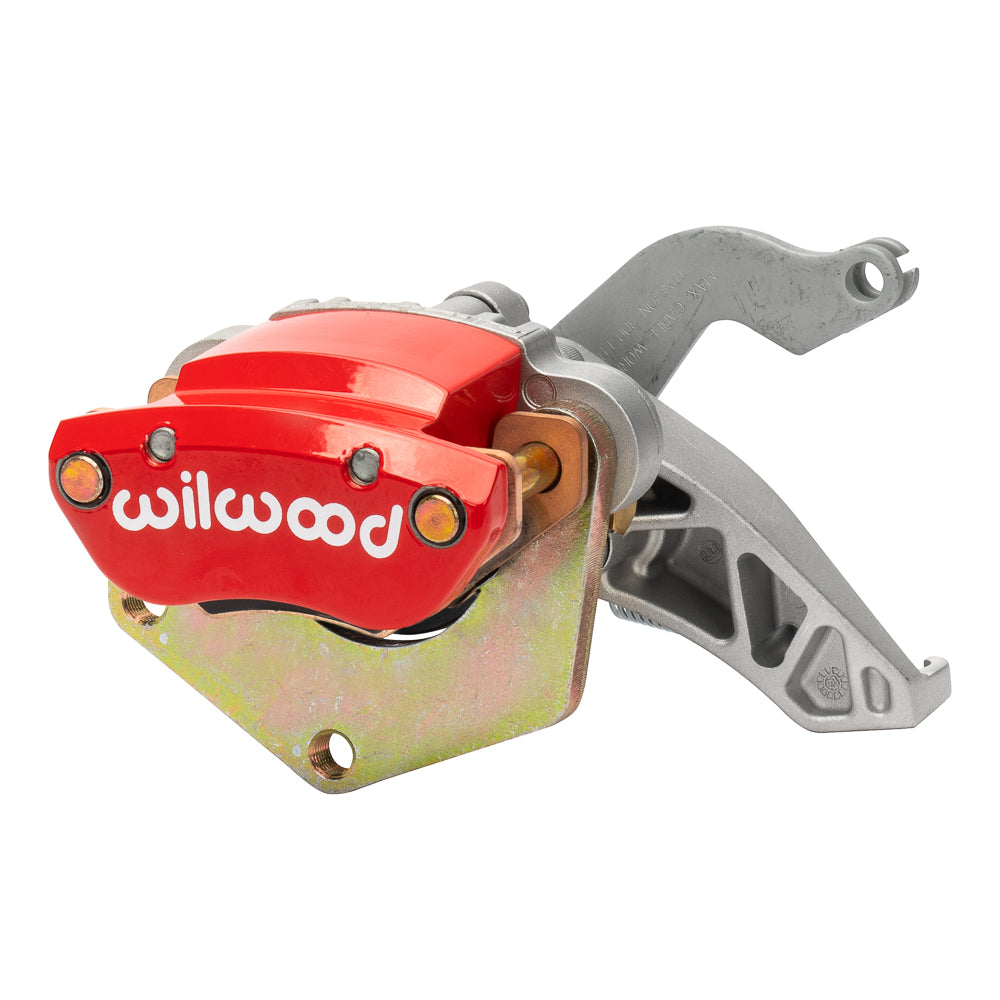

Wilwood Red Left MC4 Parking Caliper, Right-Hand Cable Lever / Offset Plate on 2.00-Inch Hole Centers: Red MC4 parking caliper in an angled view, showing its gold-toned offset mounting plate and right-extending lever.

Wilwood Red Left MC4 Parking Caliper, Right-Hand Cable Lever / Offset Plate on 2.00-Inch Hole Centers

SKU: 120-17477-RD

$243.97 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red powder coat finishes this left-hand Wilwood MC4 parking caliper. Its right-hand lever and offset plate with mounting holes on 2.00-inch centers distinguish the installation from MC4 units using a straight bracket or an opposite-pull actuator. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

  • Manufacturer part number: 120-17477-RD. Type: MC4 Mechanical caliper.
  • Mechanical piston count: 1. Bore: 1.19 inch; piston material: aluminum. Cable applied, with dust boot: yes.
  • Actuation: parking-brake cable with a 0.310-inch barrel end. Manual wear adjustment and a cable return spring are provided.
  • Mounting: floating caliper on an offset mounting plate, 2.00-inch centers; orientation: left hand. 1.20-inch mounting height.
  • Caliper body: die-cast aluminum body with a forged aluminum anvil; finish: Red Powder Coat.
  • Rotor channel: 0.81-inch nominal width. Specified width limits: 0.70–0.81 inch; rotor outside diameter: 11.00–14.00 inches.
  • Brake pad shape: 6407. Choose pad dimensions and friction material for the brake system.
  • Caliper component weight: approximately 3.3 lb.
  • Assembly: one mechanical parking caliper, supplied with pads, noise-control shields and a steel mounting bracket. The service-brake system is separate.

Fitment & Compatibility

Confirm the caliper side, lever hand and cable route as three separate fit checks. The nominal 0.81-inch-wide rotor must also suit the pad position and specified width limits, with room for manual adjustment and full spring return.
