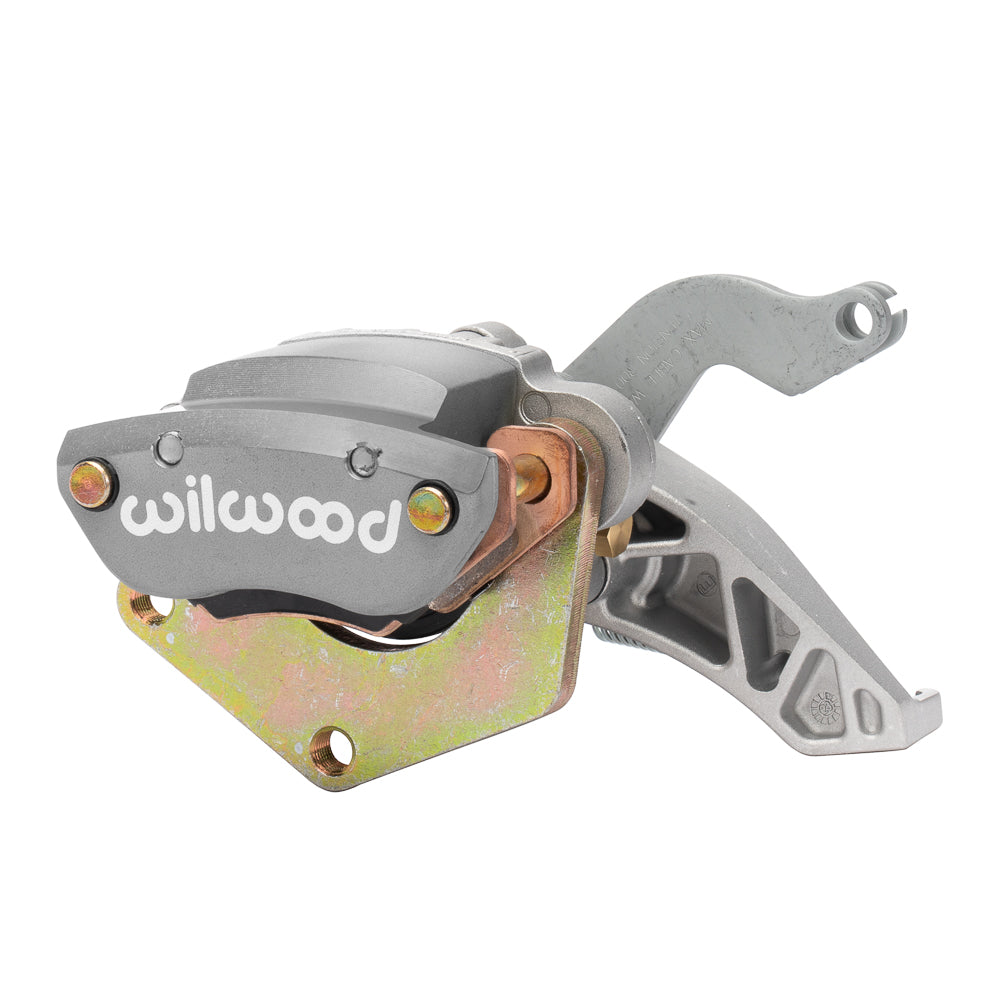

Wilwood Left MC4 Mechanical Parking Caliper, Anodized Body / 1.19-Inch Piston and Right-Hand Lever: Gray MC4 parking caliper with white lettering, an offset plate below and a metal lever extending toward the upper right.

Wilwood Left MC4 Mechanical Parking Caliper, Anodized Body / 1.19-Inch Piston and Right-Hand Lever

SKU: 120-17477

$243.97 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This anodized left-hand Wilwood MC4 uses the right-hand cable lever specified for this configuration. Its offset mounting plate and mechanically applied piston provide a separate parking brake, with the nominal 0.81-inch rotor width selected independently of the hydraulic service caliper. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977; its motorsport, street-performance and specialized range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-17477. Type: MC4 Mechanical caliper.
  • Nominal rotor width 0.81 inch; compatible width range 0.70–0.81 inch. Rotor diameter specification: 11.00–14.00 inches.
  • Mechanical piston count: 1. Bore: 1.19 inch; piston material: aluminum. Cable applied, with dust boot: yes.
  • Type III Anodize finish on a die-cast aluminum body with a forged aluminum anvil body.
  • 2.00-inch-center floating caliper on an offset mounting plate attachment, left hand orientation. 1.20-inch mounting height.
  • Compatible pad profile 6407; confirm thickness and compound for the installation.
  • Actuation: parking-brake cable with a 0.310-inch barrel end. Manual wear adjustment and a cable return spring are provided.
  • Caliper component weight: approximately 3.3 lb.
  • Assembly: one mechanical parking caliper, supplied with pads, noise-control shields and a steel mounting bracket. The service-brake system is separate.

Fitment & Compatibility

Distinguish the left-hand caliper from its right-hand lever when checking cable access. Verify the 2.00-inch mounting-hole spacing on the offset plate against the dedicated drawing, and ensure both pad alignment and cable travel remain correct through adjustment.

Manufacturer warning, brake pads only: Cancer and Reproductive Harm. P65Warnings.ca.gov.

PMB Performance brings over 20 years of experience to brake-component selection. Share the installed caliper, rotor size and mounting arrangement so the relevant dimensions can be compared.
