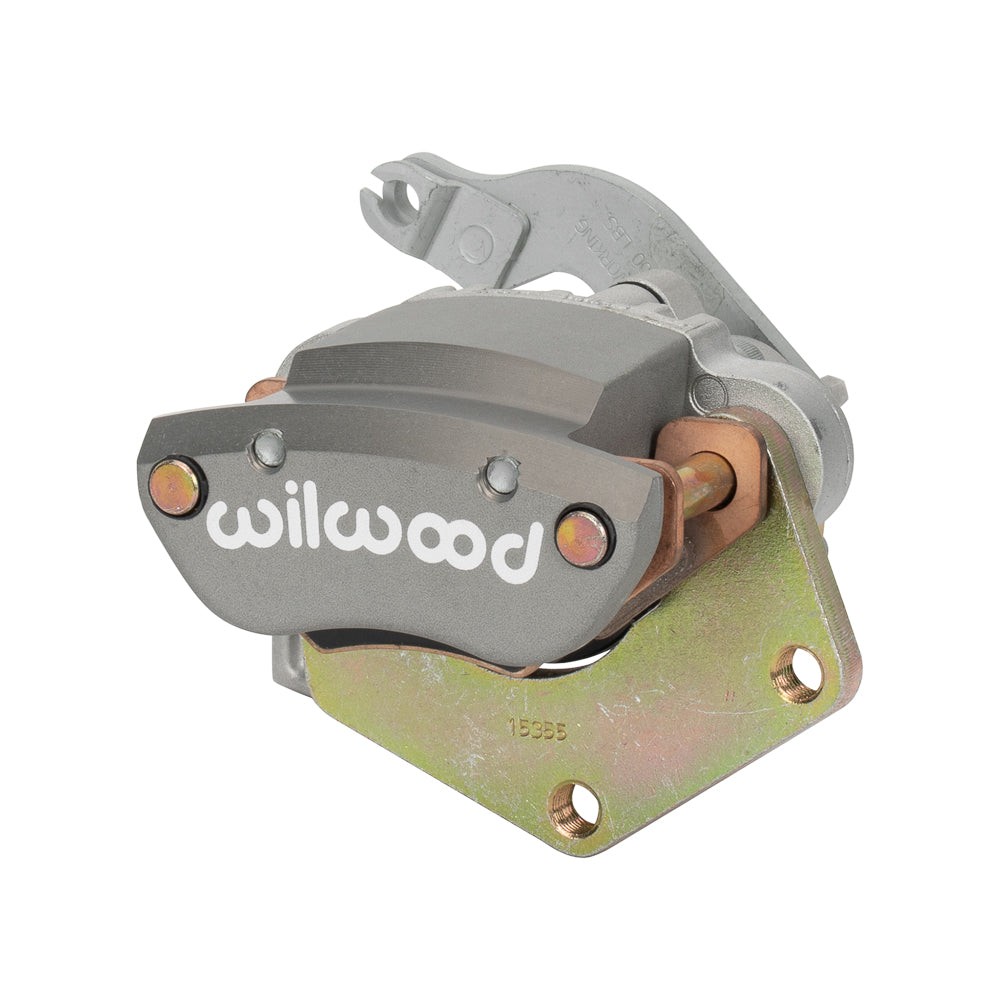

Wilwood Right MC4 Anodized Parking Caliper, Left-Hand Lever / Offset Plate with 2.00-Inch Hole Centers

This right-hand Wilwood MC4 pairs the caliper body with a left-hand cable lever. The dedicated offset plate has mounting holes on 2.00-inch centers, while the mechanical piston and return spring provide parking operation on a nominal 0.81-inch-wide rotor. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-17476. Type: MC4 Mechanical caliper.
• Actuation: parking-brake cable with a 0.310-inch barrel end. Manual wear adjustment and a cable return spring are provided.
• 2.00-inch-center floating caliper on an offset mounting plate attachment, right hand orientation. 1.20-inch mounting height.
• Mechanical piston count: 1. Bore: 1.19 inch; piston material: aluminum. Cable applied, with dust boot: yes.
• Nominal rotor width 0.81 inch; compatible width range 0.70–0.81 inch. Rotor diameter specification: 11.00–14.00 inches.
• Type III Anodize finish on a die-cast aluminum body with a forged aluminum anvil body.
• Caliper component weight: approximately 3.3 lb.
• Compatible pad profile 6407; confirm thickness and compound for the installation.
• Assembly: one mechanical parking caliper, supplied with pads, noise-control shields and a steel mounting bracket. The service-brake system is separate.

Fitment & Compatibility

Check the caliper hand and cable-lever hand separately; both affect how the cable reaches the assembly. Compare the mounting holes on the offset plate with the dedicated drawing, then verify rotor midline and full lever travel alongside the service brakes.

Manufacturer warning, brake pads only: Cancer and Reproductive Harm. P65Warnings.ca.gov.

For help matching this caliper, contact PMB Performance with the brake-package details and rotor measurements. Our team has more than 20 years of experience with brake parts and fitment.
