Product details

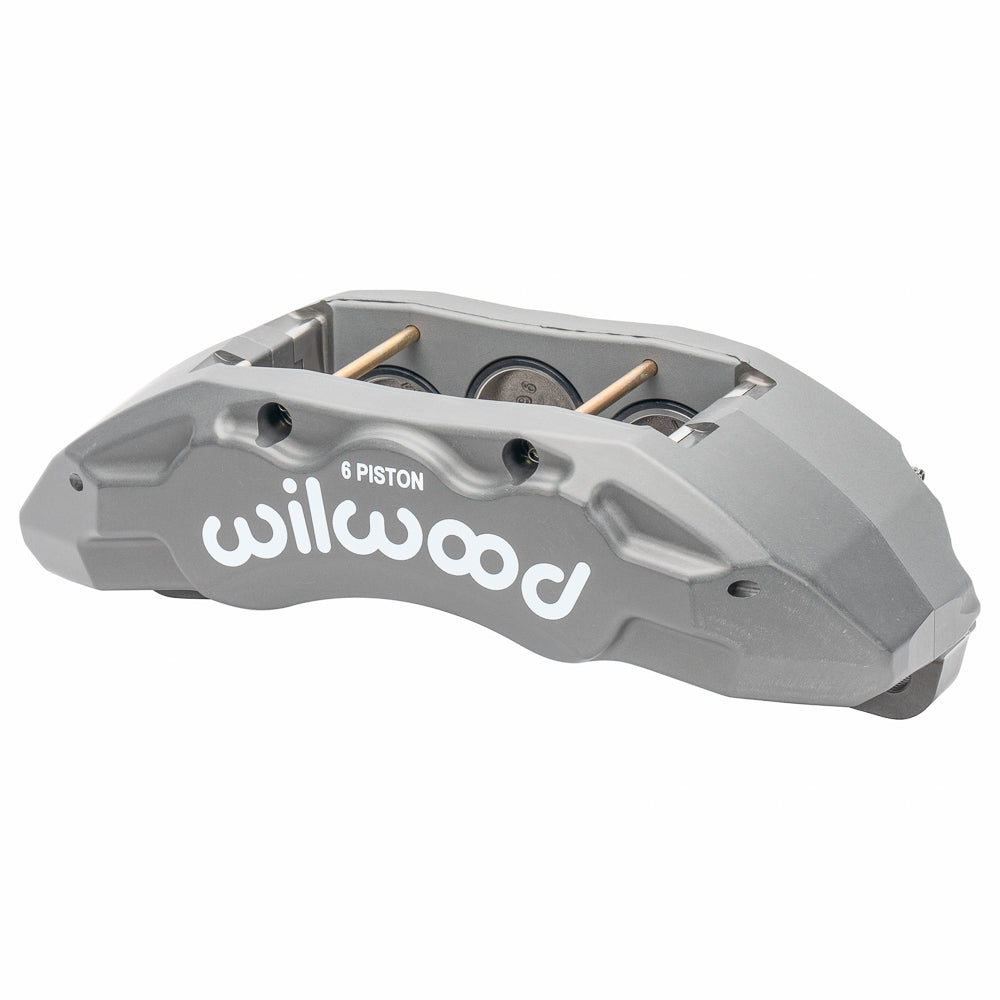

The anodized left front Wilwood TX6-DM is selected for the GM 2500/3500 heavy-duty conversion beginning with the documented 2020 application. Its six-piston body uses 2.00/1.88/1.88-inch differential bores and a nominal 1.50-inch rotor channel. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-17467. Type: TX6-DM Forged Lug Mount caliper.
- 6-piston hydraulic layout with 2.00/1.88/1.88-inch bores and 8.70 sq in of effective area; piston type: stainless steel.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- 12.05-inch-center lug attachment, left hand orientation.
- Type III Anodize finish on a forged aluminum body.
- Nominal rotor width 1.50 inch; compatible width range 1.42–1.50 inch. Rotor diameter specification: 15.00 inches.
- Caliper component weight: approximately 14.6 lb.
- Compatible pad profile 10120; confirm thickness and compound for the installation.
- Piston dust boots: yes.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Compare the caliper with the truck's existing Wilwood conversion rather than its original brake appearance. Check the 12.05-inch direct-lug interface, matched 15.00-inch rotor and hose connection, then verify the intended wheel has the prescribed clearance.
PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and mounting details for help comparing this configuration.
