Product details

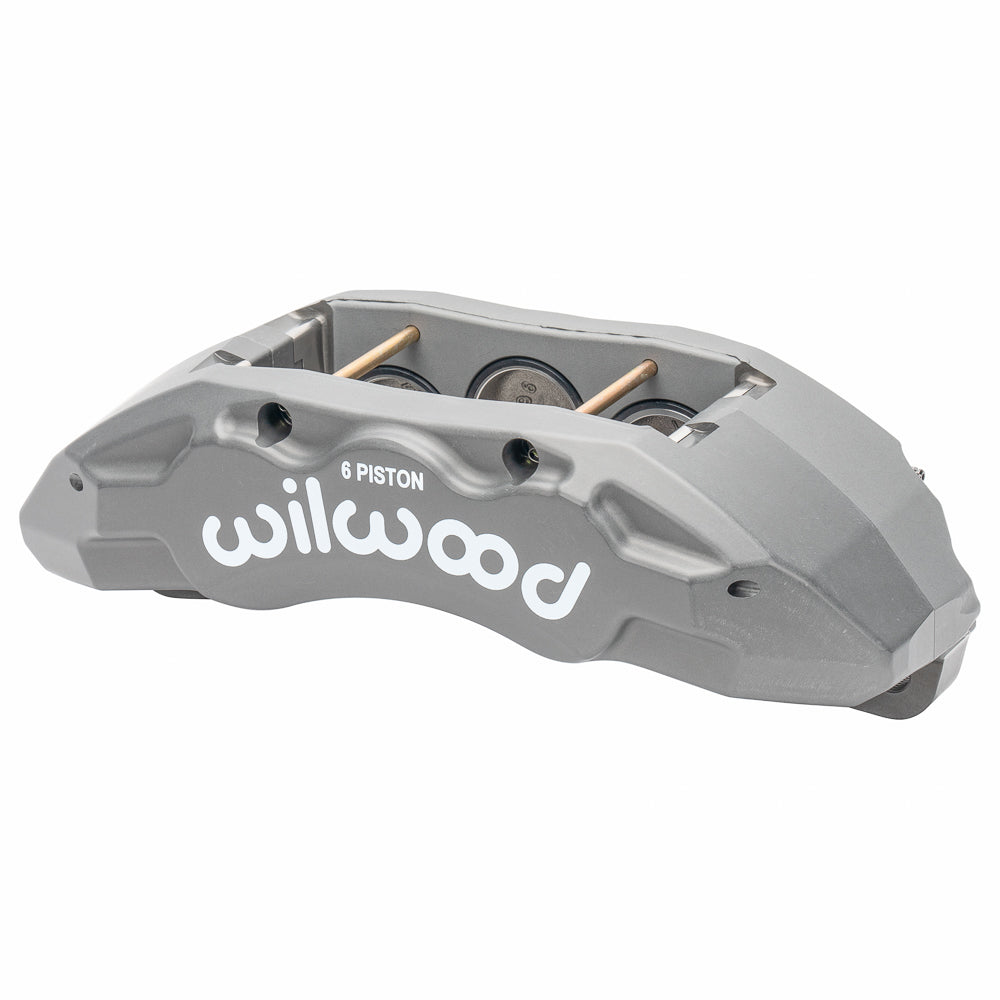

This anodized right front Wilwood TX6-DM is a component of the heavy-duty GM 2500/3500 conversion documented for 2020 and later trucks. Six stainless pistons, a forged body and 12.05-inch lug centers are paired with the 15.00-inch-diameter rotor with 1.50-inch width package. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc braking systems for motorsport, street-performance and specialized applications, with a component range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17466. Type: TX6-DM Forged Lug Mount caliper.
- Type III Anodize finish on a forged aluminum body.
- 12.05-inch-center lug attachment, right hand orientation.
- 6-piston hydraulic layout with 2.00/1.88/1.88-inch bores and 8.70 sq in of effective area; piston type: stainless steel.
- Compatible pad profile 10120; confirm thickness and compound for the installation.
- Nominal rotor width 1.50 inch; compatible width range 1.42–1.50 inch. Rotor diameter specification: 15.00 inches.
- Piston dust boots: yes.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Caliper component weight: approximately 14.6 lb.
Fitment & Compatibility
Confirm the truck's exact application and the matching Wilwood conversion hardware. The direct-lug caliper still requires the specified rotor, flexline and wheel clearance; it should not be treated as a stock-rotor replacement merely because it bolts to the spindle.
With 20+ years of experience, PMB Performance can help assess the brake hardware. Provide the caliper number, rotor dimensions and bracket measurements when asking about compatibility.
