Wilwood Black Dynapro Low-Profile Four-Piston Brake Caliper for 0.50-Inch-Wide Rotors

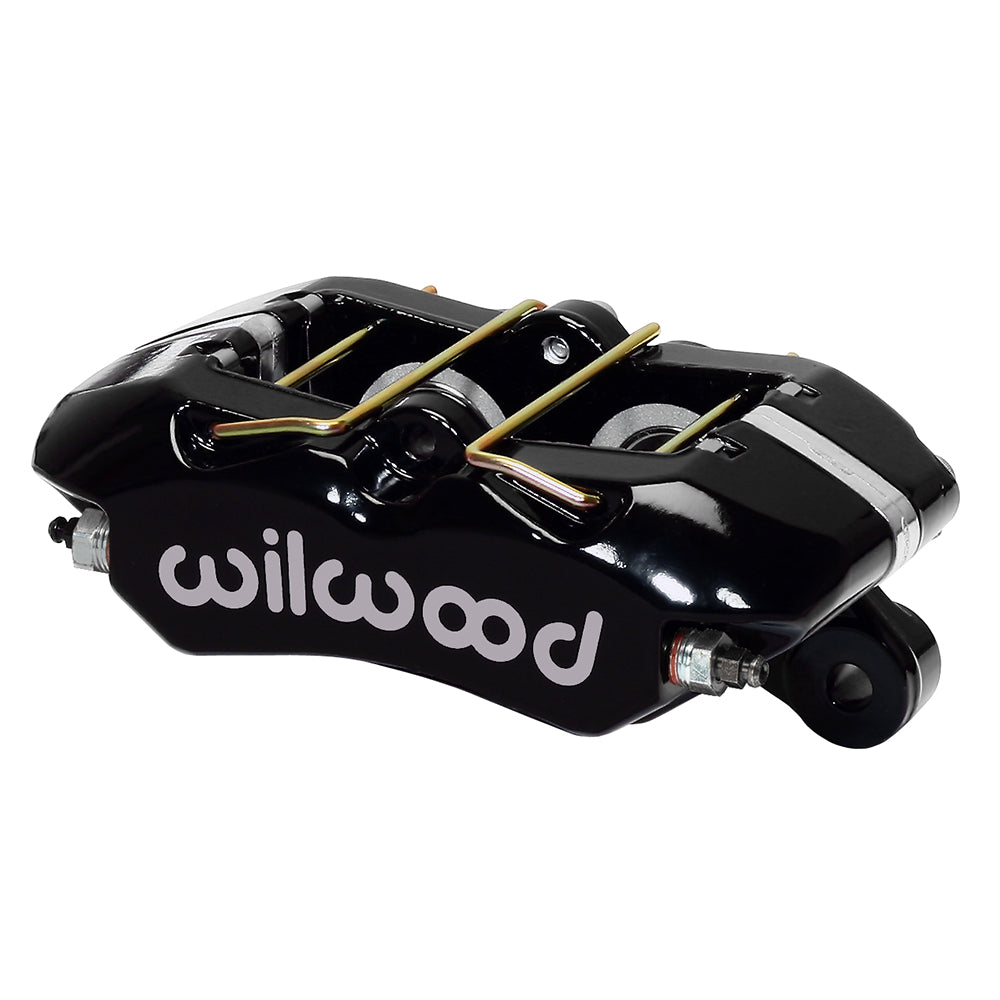

This black Wilwood Dynapro Low-Profile caliper combines four equal stainless pistons with a forged housing for tight outboard clearance. The nominal 0.50-inch rotor width and 4812 pad shape identify the smaller swept-area arrangement. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-17460-BK. Type: Forged Dynapro Lug Mount Low-Profile caliper.
• Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
• Attachment geometry: lug mount with 5.25-inch centers; universal. 0.39-inch holes; 2.10-inch mounting height.
• Bore sequence 1.38/1.38 inches across 4 pistons. Piston construction: stainless steel; specified effective area 3.00 square inches.
• Rotor dimensions: outside diameter 11.00–13.06 inches; nominal width 0.50 inch, with width limits of 0.44–0.50 inch.
• Construction and surface: forged aluminum, finished in Black Powder Coat.
• Piston dust boots: no.
• Pad fit uses shape 4812. Match the pad to the rotor and intended operating conditions.
• Caliper component weight: approximately 3.6 lb.
• Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.

Fitment & Compatibility

Verify the rotor hat sits clear of the caliper body and the bracket aligns the friction material correctly. Confirm the 5.25-inch lug spacing, hydraulic balance and 1/8-27 NPT hose fitting with the assembled brake.

For help matching this caliper, contact PMB Performance with the brake-package details and rotor measurements. Our team has more than 20 years of experience with brake parts and fitment.
