Product details

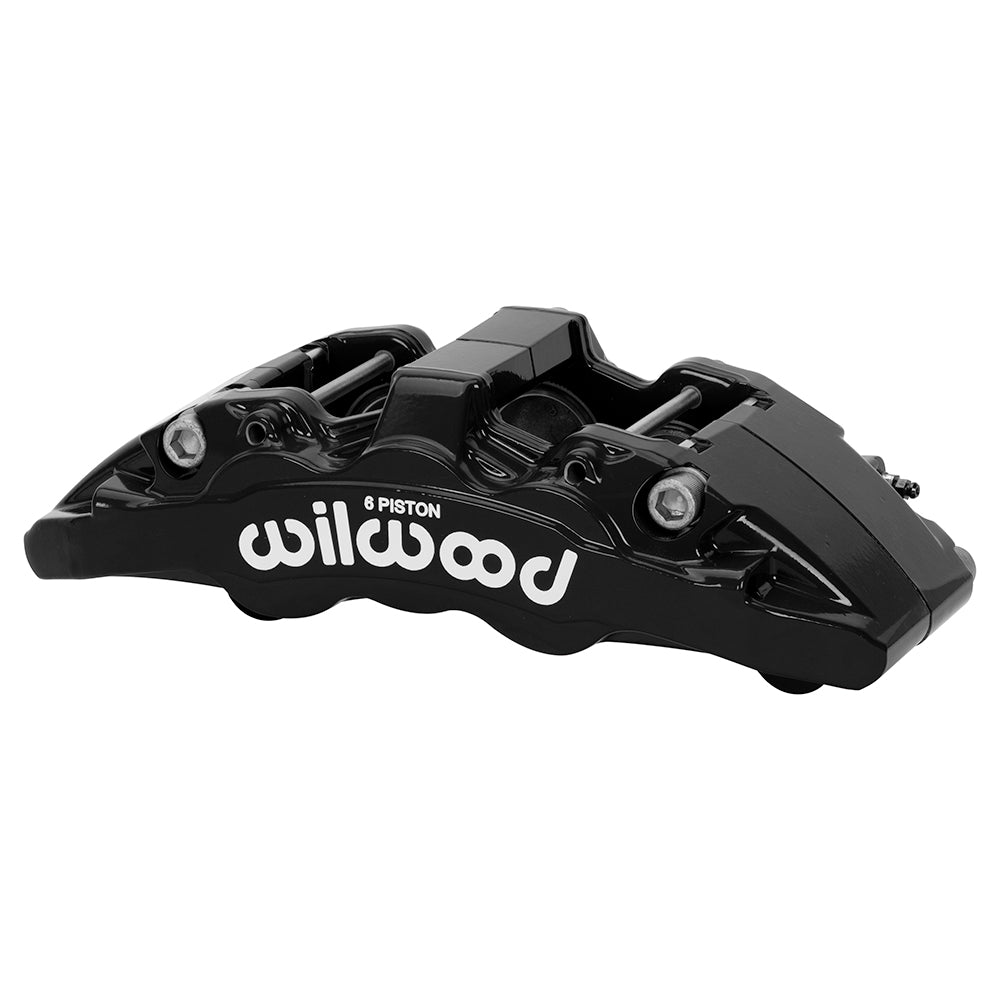

The left front black Wilwood Aero6-DM is a six-piston replacement component for the specified LC300/Tundra brake setup. It combines 1.75/1.62/1.62-inch differential bores with a 7.09-inch lug pattern and internal fluid passages. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-17459-BK. Type: AeroDM Lug Mount caliper.
- Bore sequence 1.75/1.62/1.62 inches across 6 pistons. Piston construction: stainless steel; specified effective area 6.52 square inches.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Attachment geometry: lug mount with 7.09-inch centers; left hand. 0.55-inch holes.
- Construction and surface: forged aluminum, finished in Black Powder Coat.
- Rotor dimensions: outside diameter 12.19–13.56 inches; nominal width 1.30 inch, with width limits of 1.10–1.30 inch.
- Caliper component weight: approximately 8.9 lb.
- Pad fit uses shape 6617. Match the pad to the rotor and intended operating conditions.
- Piston dust boots: no.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Check the 2022–2024 Toyota LC300/Tundra application against the package instructions, including the nominal 1.30-inch rotor-width arrangement. Verify rotor offset, line routing and the complete wheel-clearance envelope with the caliper installed.
PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and mounting details for help comparing this configuration.
