Product details

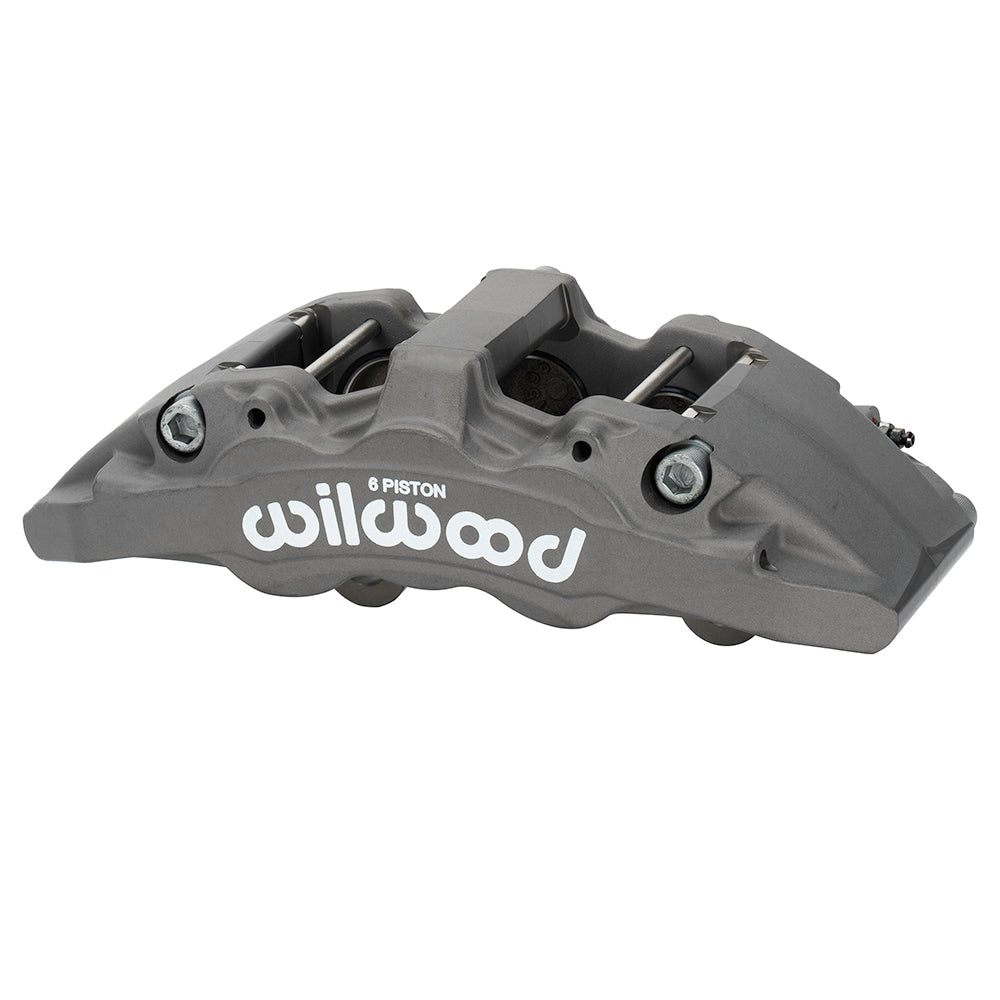

This anodized left front Wilwood Aero6-DM carries the six differential pistons needed by the documented LC300/Tundra conversion. A nominal 1.30-inch rotor channel accompanies its forged direct-lug body, with vehicle fit dependent on the complete Wilwood arrangement. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17459. Type: AeroDM Lug Mount caliper.
- 7.09-inch-center lug attachment, left hand orientation. 0.55-inch holes.
- Nominal rotor width 1.30 inch; compatible width range 1.10–1.30 inch. Rotor diameter specification: 12.19–13.56 inches.
- Compatible pad profile 6617; confirm thickness and compound for the installation.
- 6-piston hydraulic layout with 1.75/1.62/1.62-inch bores and 6.52 sq in of effective area; piston type: stainless steel.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Type III Anodize finish on a forged aluminum body.
- Caliper component weight: approximately 8.9 lb.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Piston dust boots: no.
Fitment & Compatibility
For Toyota LC300/Tundra 2022–2024 applications, verify the companion 13.56-inch rotor and correct flexline package. Compare wheel-barrel and spoke clearance before installation, and retain the specified left-hand piston orientation.
For help matching this caliper, contact PMB Performance with the brake-package details and rotor measurements. Our team has more than 20 years of experience with brake parts and fitment.
