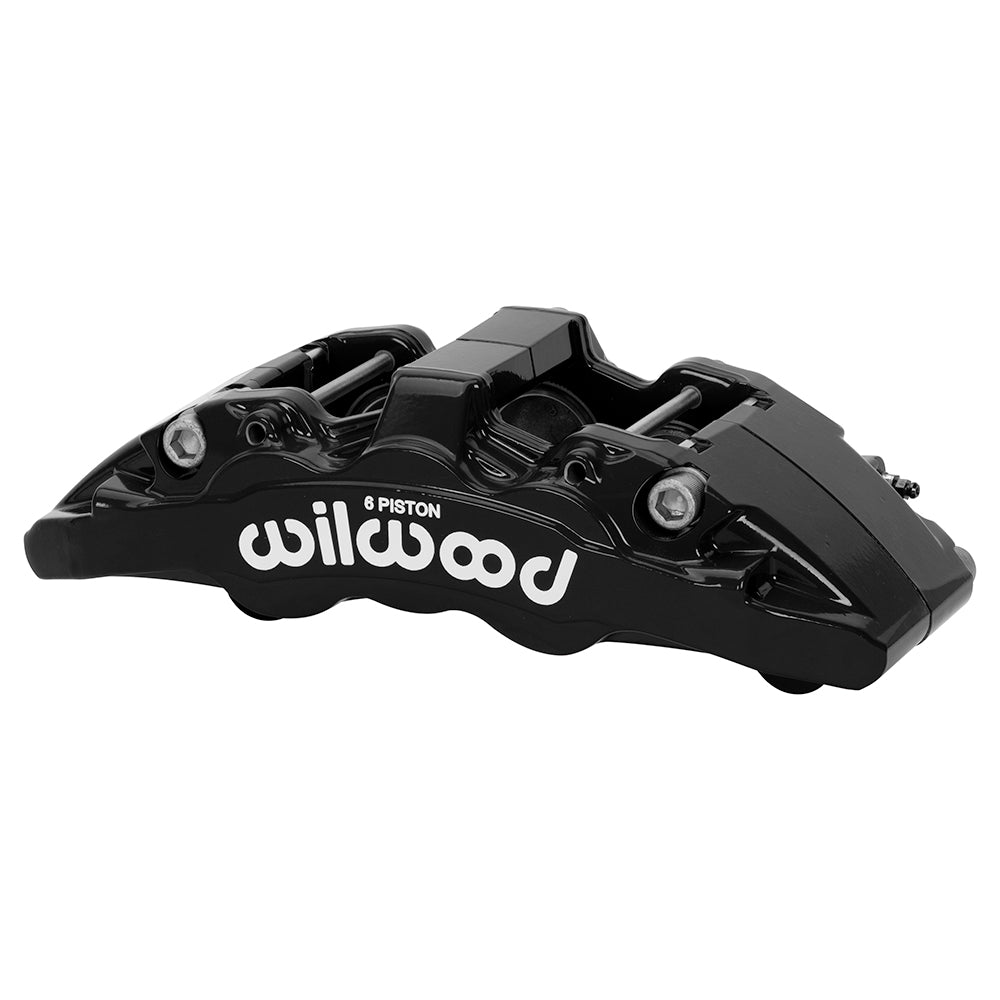

Wilwood Black Front Right Aero6-DM Caliper, Toyota LC300 / Tundra, 7.09-Inch Lug Centers: Black Aero6-DM housing showing its logo side, open pad channel and metal bridge fasteners.

Wilwood Black Front Right Aero6-DM Caliper, Toyota LC300 / Tundra, 7.09-Inch Lug Centers

SKU: 120-17458-BK

$796.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The black front right Aero6-DM supplies six-piston hydraulic clamping in the Wilwood LC300/Tundra conversion. Its 6.52-square-inch effective area and nominal 1.30-inch rotor-width specification distinguish it from the smaller-bore Tacoma hardware. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc braking systems for motorsport, street-performance and specialized applications, with a component range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-17458-BK. Type: AeroDM Lug Mount caliper.
  • Construction and surface: forged aluminum, finished in Black Powder Coat.
  • Attachment geometry: lug mount with 7.09-inch centers; right hand. 0.55-inch holes.
  • Bore sequence 1.75/1.62/1.62 inches across 6 pistons. Piston construction: stainless steel; specified effective area 6.52 square inches.
  • Pad fit uses shape 6617. Match the pad to the rotor and intended operating conditions.
  • Rotor dimensions: outside diameter 12.19–13.56 inches; nominal width 1.30 inch, with width limits of 1.10–1.30 inch.
  • Piston dust boots: no.
  • Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
  • Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
  • Caliper component weight: approximately 8.9 lb.

Fitment & Compatibility

Match the documented 2022–2024 Toyota LC300/Tundra package, including rotor dimensions and hose geometry. Check the actual wheel against the manufacturer's clearance drawing; the 7.09-inch lug spacing alone is not sufficient to approve the installation.

With 20+ years of experience, PMB Performance can help assess the brake hardware. Provide the caliper number, rotor dimensions and bracket measurements when asking about compatibility.
