Product details

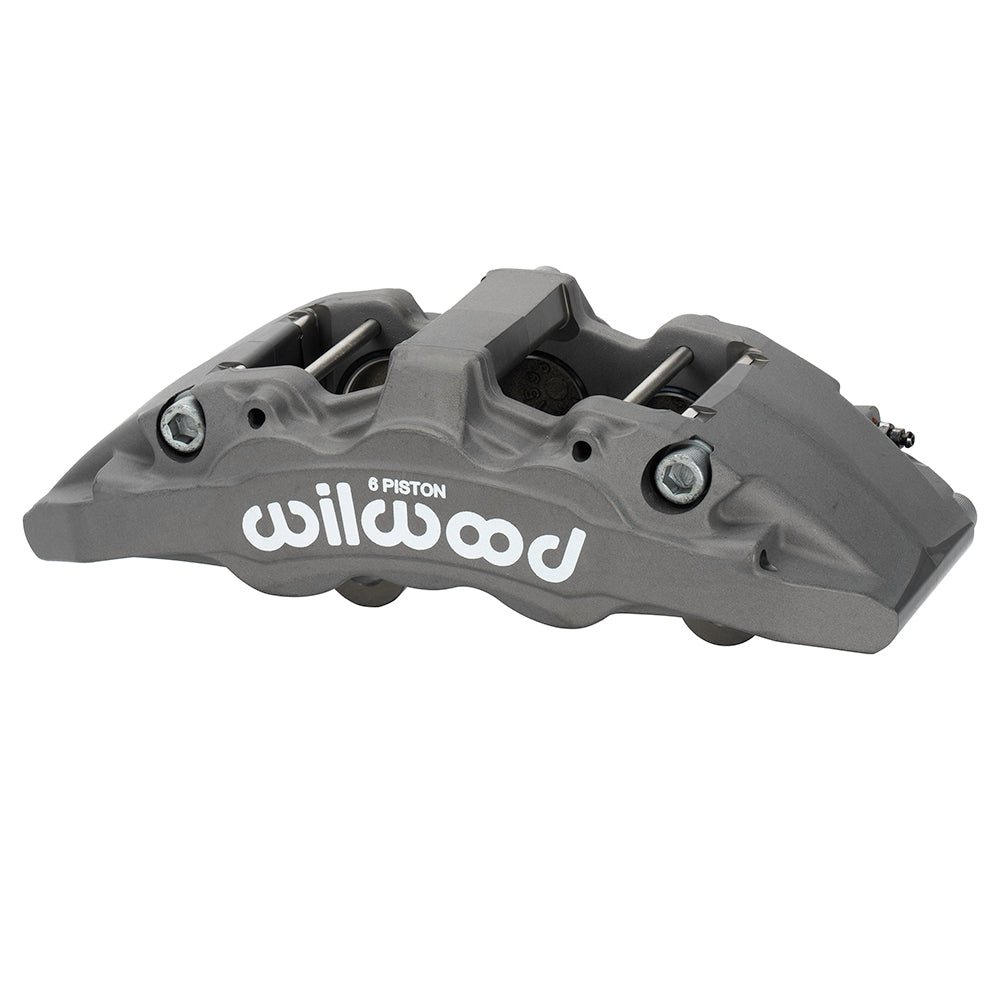

This anodized right front Wilwood Aero6-DM is used in the specified 2022–2024 Toyota LC300 and Tundra brake package. The forged housing has six stainless pistons and a 7.09-inch lug pattern, with a nominal 1.30-inch rotor-width channel. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-17458. Type: AeroDM Lug Mount caliper.
- 6-piston hydraulic layout with 1.75/1.62/1.62-inch bores and 6.52 sq in of effective area; piston type: stainless steel.
- Nominal rotor width 1.30 inch; compatible width range 1.10–1.30 inch. Rotor diameter specification: 12.19–13.56 inches.
- 7.09-inch-center lug attachment, right hand orientation. 0.55-inch holes.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Type III Anodize finish on a forged aluminum body.
- Compatible pad profile 6617; confirm thickness and compound for the installation.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Piston dust boots: no.
- Caliper component weight: approximately 8.9 lb.
Fitment & Compatibility
Confirm the LC300/Tundra application through the matching package and its 13.56-inch Wilwood rotor. Rotor offset, flexline attachment and wheel clearance must be checked alongside the piston area; this is a single caliper rather than the complete axle kit.
PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and mounting details for help comparing this configuration.
