Product details

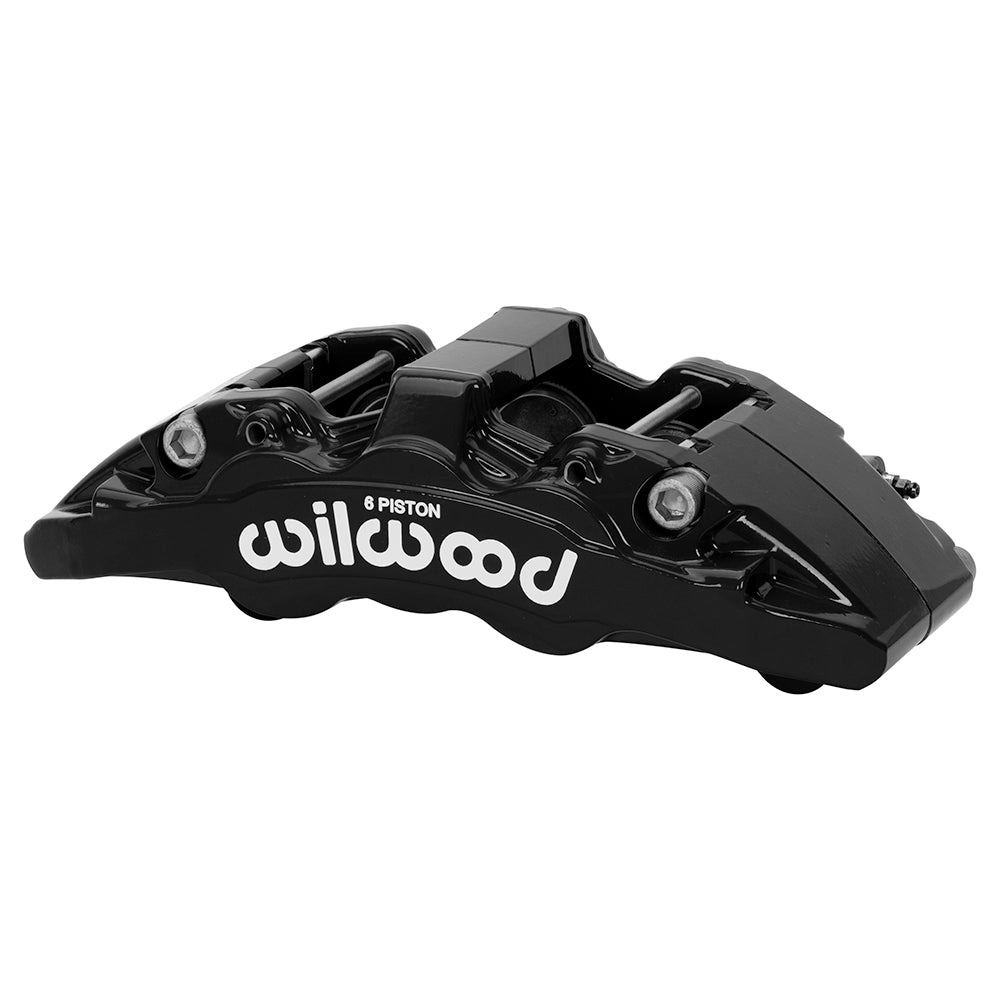

A black forged Aero6-DM body provides the left front caliper in this Wilwood Toyota Tacoma application. Its 5.06-square-inch effective area and six differential pistons need to be maintained when replacing a component in the existing conversion. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977; its motorsport, street-performance and specialized range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17432-BK. Type: AeroDM Lug Mount caliper.
- Construction and surface: forged aluminum, finished in Black Powder Coat.
- Bore sequence 1.62/1.38/1.38 inches across 6 pistons. Piston construction: stainless steel; specified effective area 5.06 square inches.
- Attachment geometry: lug mount with 5.04-inch centers; left hand. 0.48-inch holes.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Rotor dimensions: outside diameter 12.19–13.38 inches; nominal width 1.25 inch, with width limits of 1.10–1.28 inch.
- Pad fit uses shape 6617. Match the pad to the rotor and intended operating conditions.
- Caliper component weight: approximately 8.9 lb.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Piston dust boots: no.
Fitment & Compatibility
Check the 2005–2023 six-lug Tacoma brake package, rotor offset and 5.04-inch lug centers together. The correct wheel drawing, flexline arrangement and dust-shield clearance remain part of the fit even when the caliper side and finish agree.
PMB Performance brings over 20 years of experience to brake-component selection. Share the installed caliper, rotor size and mounting arrangement so the relevant dimensions can be compared.
