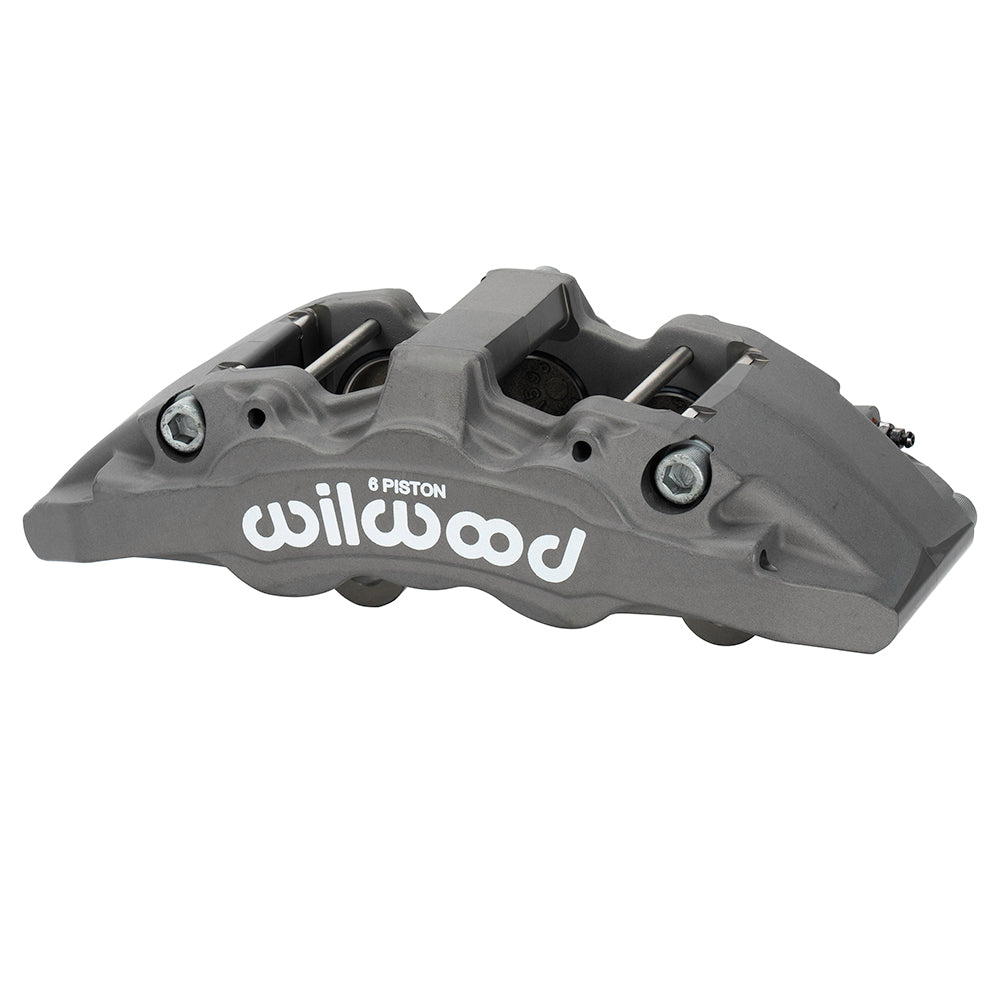

Wilwood Front Left Anodized Aero6-DM Caliper for Toyota Tacoma (2005–2023), Six-Piston Body

The anodized left front Wilwood Aero6-DM is a component of the documented six-lug Tacoma brake conversion. A forged body carries six differential stainless pistons, while the nominal 1.25-inch rotor channel and 5.04-inch mounting centers establish the caliper's interface. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc braking systems for motorsport, street-performance and specialized applications, with a component range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 120-17432. Type: AeroDM Lug Mount caliper.
• Compatible pad profile 6617; confirm thickness and compound for the installation.
• Type III Anodize finish on a forged aluminum body.
• Nominal rotor width 1.25 inch; compatible width range 1.10–1.28 inch. Rotor diameter specification: 12.19–13.38 inches.
• Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
• 6-piston hydraulic layout with 1.62/1.38/1.38-inch bores and 5.06 sq in of effective area; piston type: stainless steel.
• 5.04-inch-center lug attachment, left hand orientation. 0.48-inch holes.
• Piston dust boots: no.
• Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
• Caliper component weight: approximately 8.9 lb.

Fitment & Compatibility

Verify Toyota Tacoma 2005–2023 eligibility and the complete Wilwood package before selecting this left-hand unit. The kit uses 13.31-inch-diameter rotors at 1.26-inch width; follow its wheel-clearance and dust-shield instructions rather than assuming stock-rotor fit.

With 20+ years of experience, PMB Performance can help assess the brake hardware. Provide the caliper number, rotor dimensions and bracket measurements when asking about compatibility.
