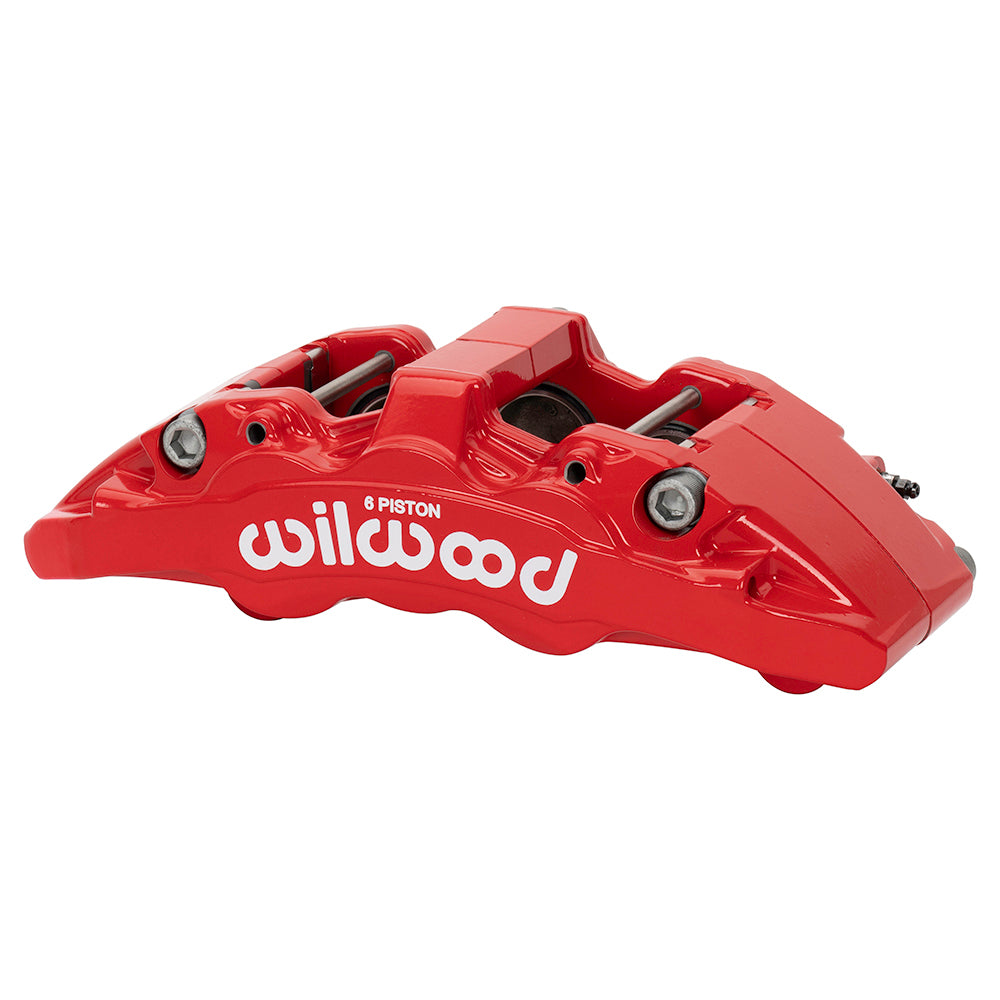

Wilwood Red Front Right Aero6-DM Brake Caliper for Toyota Tacoma, 1.62/1.38/1.38-Inch Bores: Red-brown-toned Aero6-DM body seen at an angle, with white Wilwood lettering and open bridge hardware.

Wilwood Red Front Right Aero6-DM Brake Caliper for Toyota Tacoma, 1.62/1.38/1.38-Inch Bores

SKU: 120-17431-RD

$796.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This red right front Wilwood Aero6-DM uses six stainless pistons and a forged direct-lug housing for the Tacoma conversion arrangement. The 1.62/1.38/1.38-inch bore sequence and 5.04-inch centers identify the selected caliper independently of its finish. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

  • Manufacturer part number: 120-17431-RD. Type: AeroDM Lug Mount caliper.
  • Piston arrangement: 6 stainless steel pistons; bore specification 1.62/1.38/1.38 inches. Effective piston area: 5.06 square inches.
  • Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
  • Mounting: lug, 5.04-inch centers; orientation: right hand. 0.48-inch holes.
  • Caliper body: forged aluminum; finish: Red Powder Coat.
  • Rotor channel: 1.25-inch nominal width. Specified width limits: 1.10–1.28 inch; rotor outside diameter: 12.19–13.38 inches.
  • Caliper component weight: approximately 8.9 lb.
  • Brake pad shape: 6617. Choose pad dimensions and friction material for the brake system.
  • Piston dust boots: no.
  • Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.

Fitment & Compatibility

Use it with the defined 2005–2023 Toyota Tacoma six-lug brake package, including the 13.31-inch-diameter Wilwood rotors with 1.26-inch width. This individual caliper does not make the conversion complete; check lines, fasteners, wheel space and dust-shield clearance against the instructions.

PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and mounting details for help comparing this configuration.
