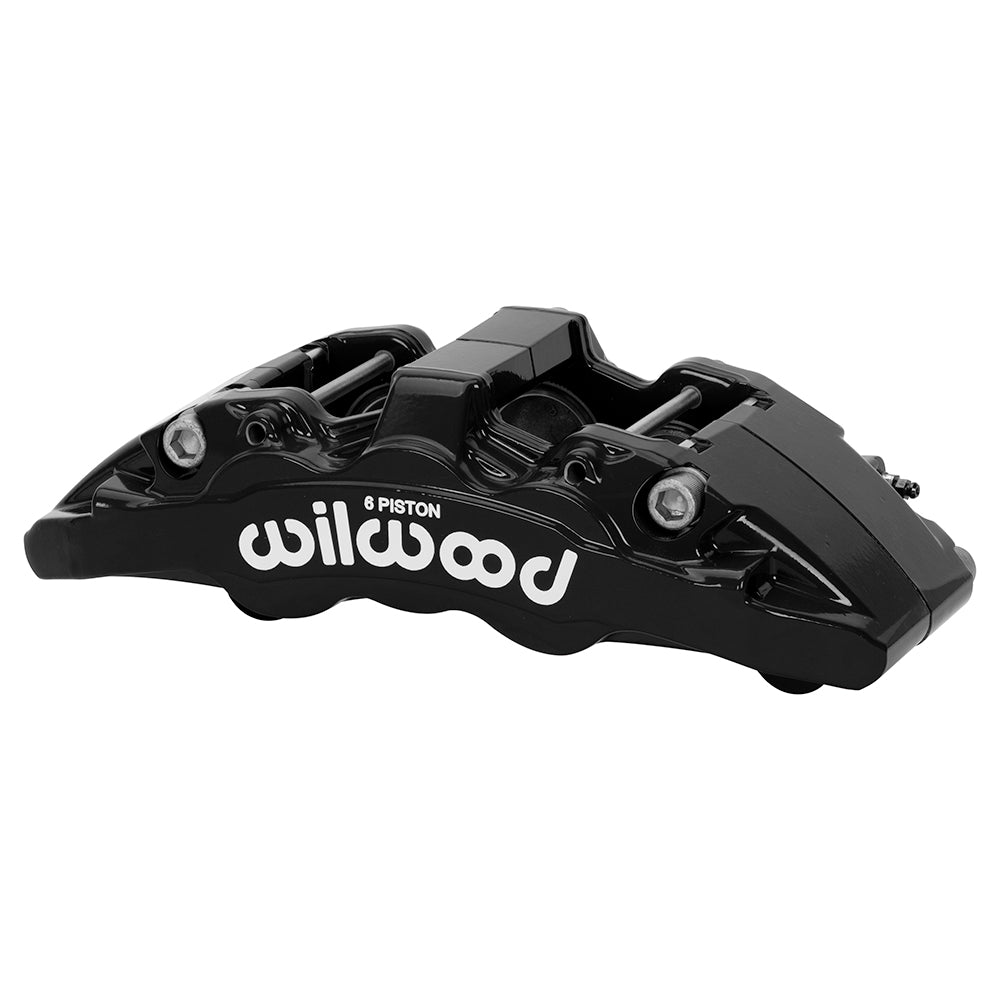

Wilwood Black Front Right Aero6-DM Caliper, Toyota Tacoma Six-Lug Conversion / 5.04-Inch Mount: Black Aero6-DM housing in an angled view, showing white lettering, pad channel and retaining hardware.

Wilwood Black Front Right Aero6-DM Caliper, Toyota Tacoma Six-Lug Conversion / 5.04-Inch Mount

SKU: 120-17431-BK

$796.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black powder coat finishes this front right Wilwood Aero6-DM for the Toyota Tacoma brake conversion. Its six-piston 5.06-square-inch hydraulic configuration and 5.04-inch lug pattern are specific to this hardware, rather than the Ford application associated with a different Aero6-DM pair. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-17431-BK. Type: AeroDM Lug Mount caliper.
  • Attachment geometry: lug mount with 5.04-inch centers; right hand. 0.48-inch holes.
  • Rotor dimensions: outside diameter 12.19–13.38 inches; nominal width 1.25 inch, with width limits of 1.10–1.28 inch.
  • Pad fit uses shape 6617. Match the pad to the rotor and intended operating conditions.
  • Bore sequence 1.62/1.38/1.38 inches across 6 pistons. Piston construction: stainless steel; specified effective area 5.06 square inches.
  • Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
  • Construction and surface: forged aluminum, finished in Black Powder Coat.
  • Caliper component weight: approximately 8.9 lb.
  • Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
  • Piston dust boots: no.

Fitment & Compatibility

The documented installation is the 2005–2023 six-lug Tacoma package with matching Wilwood rotors and flexlines. Compare the wheel drawing and rotor offset, and account for the prescribed dust-shield trimming before installation.

For help matching this caliper, contact PMB Performance with the brake-package details and rotor measurements. Our team has more than 20 years of experience with brake parts and fitment.
