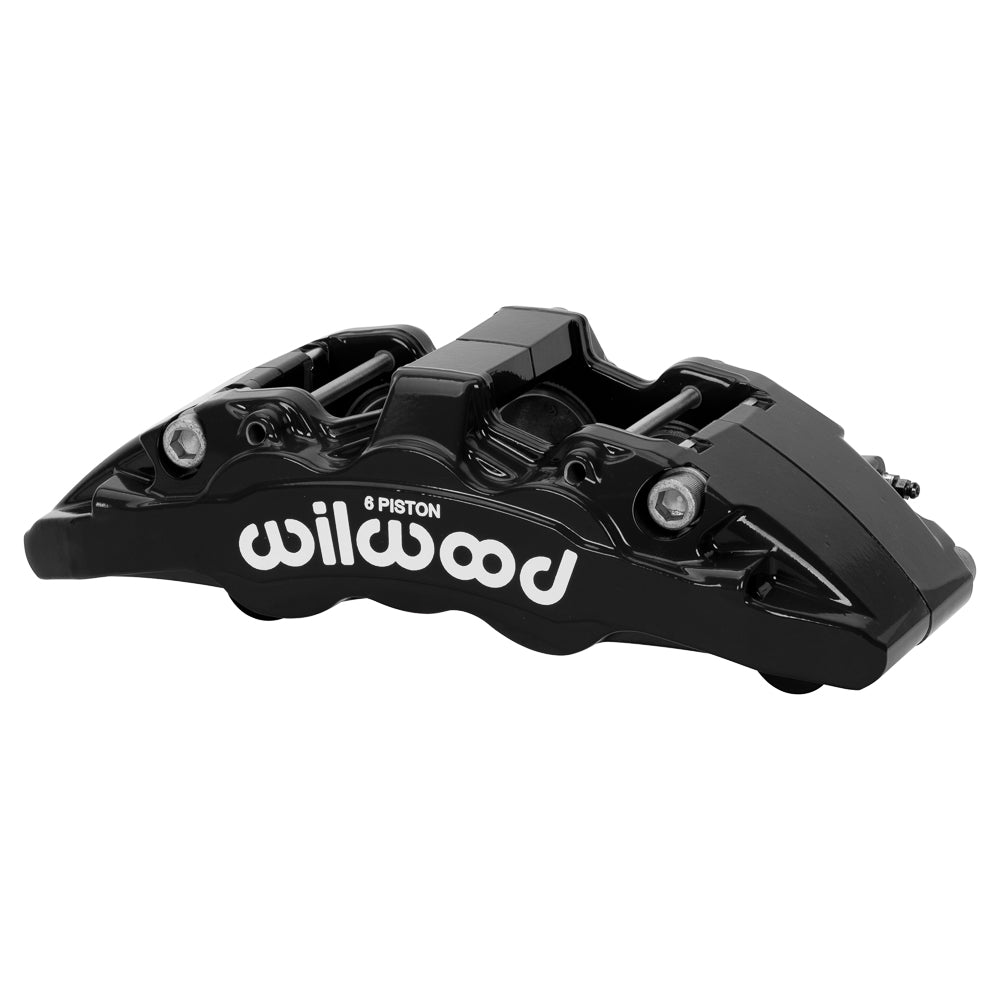

Wilwood Black Front Right Aero6-DM Brake Caliper, Ford Bronco / Ranger Direct-Mount Arrangement: Black Aero6-DM caliper viewed from the logo side at an angle, with exposed retaining hardware across the center.

Wilwood Black Front Right Aero6-DM Brake Caliper, Ford Bronco / Ranger Direct-Mount Arrangement

SKU: 120-17294-BK

$796.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The black Wilwood Aero6-DM supplies the right front six-piston caliper in the documented Bronco/Ranger brake package. Its 1.75/1.62/1.62-inch differential bores and nominal 1.25-inch rotor-width channel must match the installation, rather than being treated as stock-caliper dimensions. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

  • Manufacturer part number: 120-17294-BK. Type: AeroDM Lug Mount caliper.
  • 6-piston hydraulic layout with 1.75/1.62/1.62-inch bores and 6.52 sq in of effective area; piston type: stainless steel.
  • Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
  • 7.48-inch-center lug attachment, right hand orientation. 0.48-inch holes; 3.51-inch mounting height.
  • Black Powder Coat finish on a forged aluminum body.
  • Nominal rotor width 1.25 inch; compatible width range 1.10–1.28 inch. Rotor diameter specification: 12.19–13.38 inches.
  • Caliper component weight: approximately 8.9 lb.
  • Compatible pad profile 6617; confirm thickness and compound for the installation.
  • Piston dust boots: no.
  • Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.

Fitment & Compatibility

The supported package covers Ford Bronco 2021–2024 and Ranger 2019–2022 with the specified companion hardware. On Bronco, confirm the 2.3L engine and vacuum booster; do not use this package on vehicles with an e-booster. Match rotor offset and wheel clearance as well as the caliper side.

PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and mounting details for help comparing this configuration.
