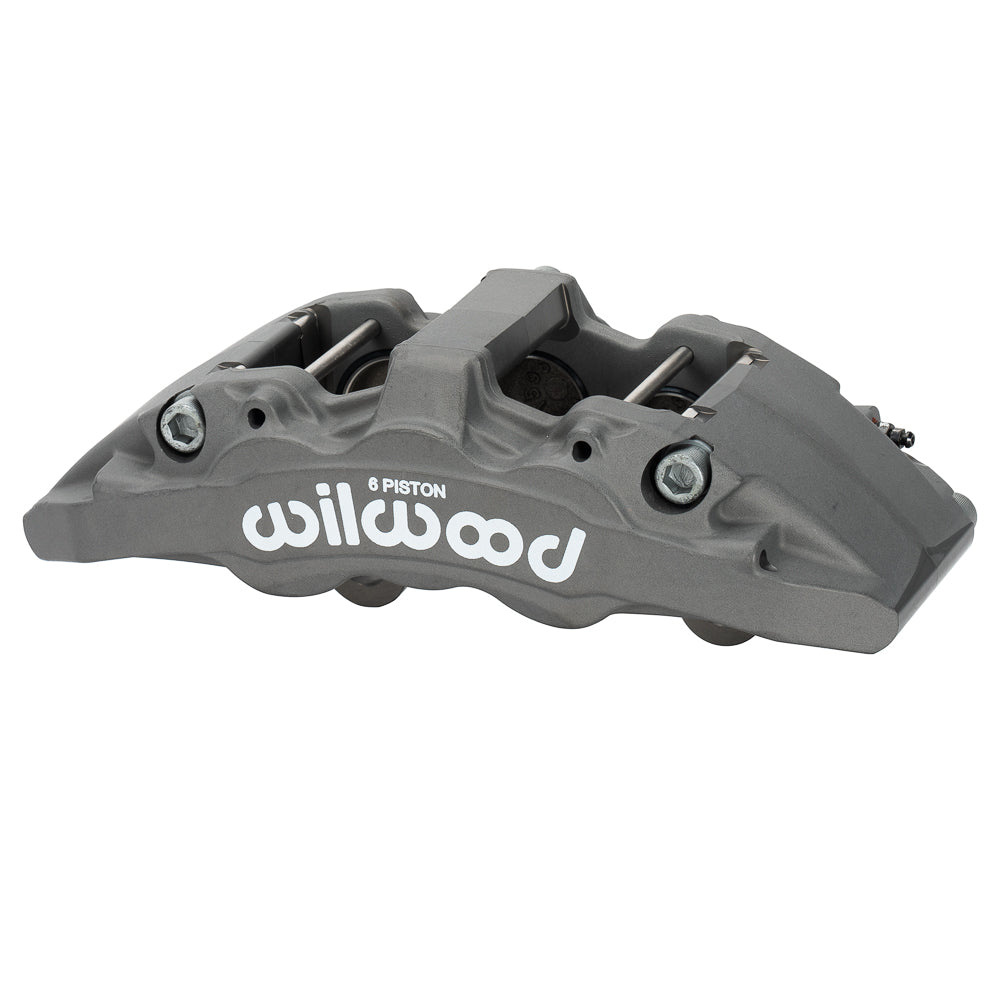

Wilwood Front Right Aero6-DM Anodized Caliper for Ford Bronco (2021–2024) / Ranger (2019–2022): Gray Aero6-DM housing with white Wilwood lettering, six-piston text, an open bridge and visible end fittings.

Wilwood Front Right Aero6-DM Anodized Caliper for Ford Bronco (2021–2024) / Ranger (2019–2022)

SKU: 120-17294

$796.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This anodized front right Wilwood Aero6-DM is the caliper used in the specified 2021–2024 Ford Bronco and 2019–2022 Ranger direct-mount brake arrangements. Six stainless pistons work in a forged body with 7.48-inch lug centers; it is a single replacement component, not the complete conversion kit. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-17294. Type: AeroDM Lug Mount caliper.
  • Mounting: lug, 7.48-inch centers; orientation: right hand. 0.48-inch holes; 3.51-inch mounting height.
  • Rotor channel: 1.25-inch nominal width. Specified width limits: 1.10–1.28 inch; rotor outside diameter: 12.19–13.38 inches.
  • Brake pad shape: 6617. Choose pad dimensions and friction material for the brake system.
  • Piston arrangement: 6 stainless steel pistons; bore specification 1.75/1.62/1.62 inches. Effective piston area: 6.52 square inches.
  • Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
  • Caliper body: forged aluminum; finish: Type III Anodize.
  • Caliper component weight: approximately 8.9 lb.
  • Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
  • Piston dust boots: no.

Fitment & Compatibility

Use only the matched Wilwood rotor, hose and mounting package for the application. Bronco fitment is limited to the 2.3L vacuum-booster configuration: e-booster-equipped models, including the 2.7L arrangement, are excluded. Check the applicable wheel-clearance drawing before installation.

For help matching this caliper, contact PMB Performance with the brake-package details and rotor measurements. Our team has more than 20 years of experience with brake parts and fitment.
