Product details

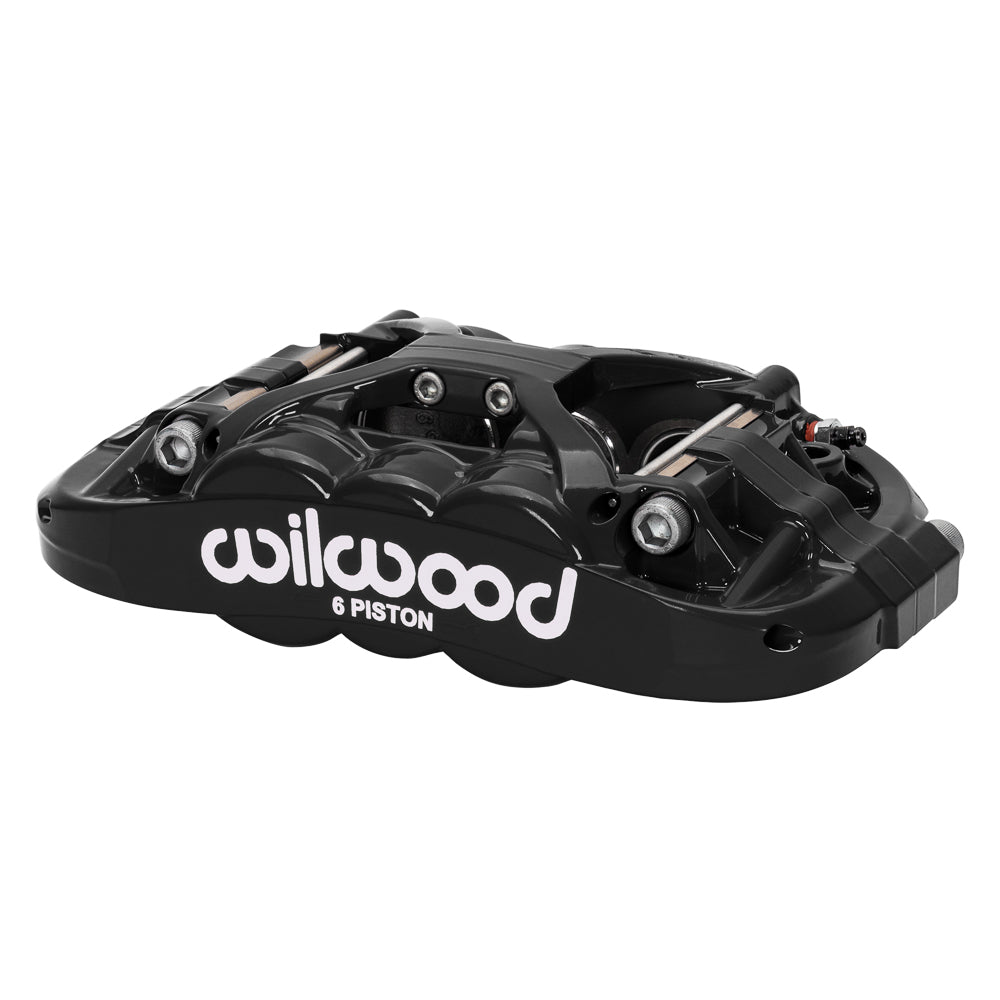

The right-hand black Wilwood XRS6R is the 1.25-inch nominal rotor-width version with a 1.75/1.25/1.25-inch bore sequence. Its forged body and 5.98-inch radial centers address the mechanical interface, while the six-piston area determines its hydraulic requirements. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-17219-BK. Type: Forged XRS6R Radial Mount caliper.
- 6-piston hydraulic layout with 1.75/1.25/1.25-inch bores and 4.86 sq in of effective area; piston type: stainless steel.
- Nominal rotor width 1.25 inch; compatible width range 1.19–1.25 inch. Rotor diameter specification: 11.75–14.00 inches.
- 5.98-inch-center radial attachment, right hand orientation. 0.39-inch holes; 1.45-inch mounting height.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Black Powder Coat finish on a forged aluminum body.
- Compatible pad profile 10416; confirm thickness and compound for the installation.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Piston dust boots: no.
- Caliper component weight: approximately 5.2 lb.
Fitment & Compatibility
Confirm bracket height and pad placement on an 11.75–14.00-inch rotor. The complete setup must also provide clearance for the X-bridge body, wheel spokes and the hose connection at the 1/8-27 NPT inlet.
PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and mounting details for help comparing this configuration.
