Product details

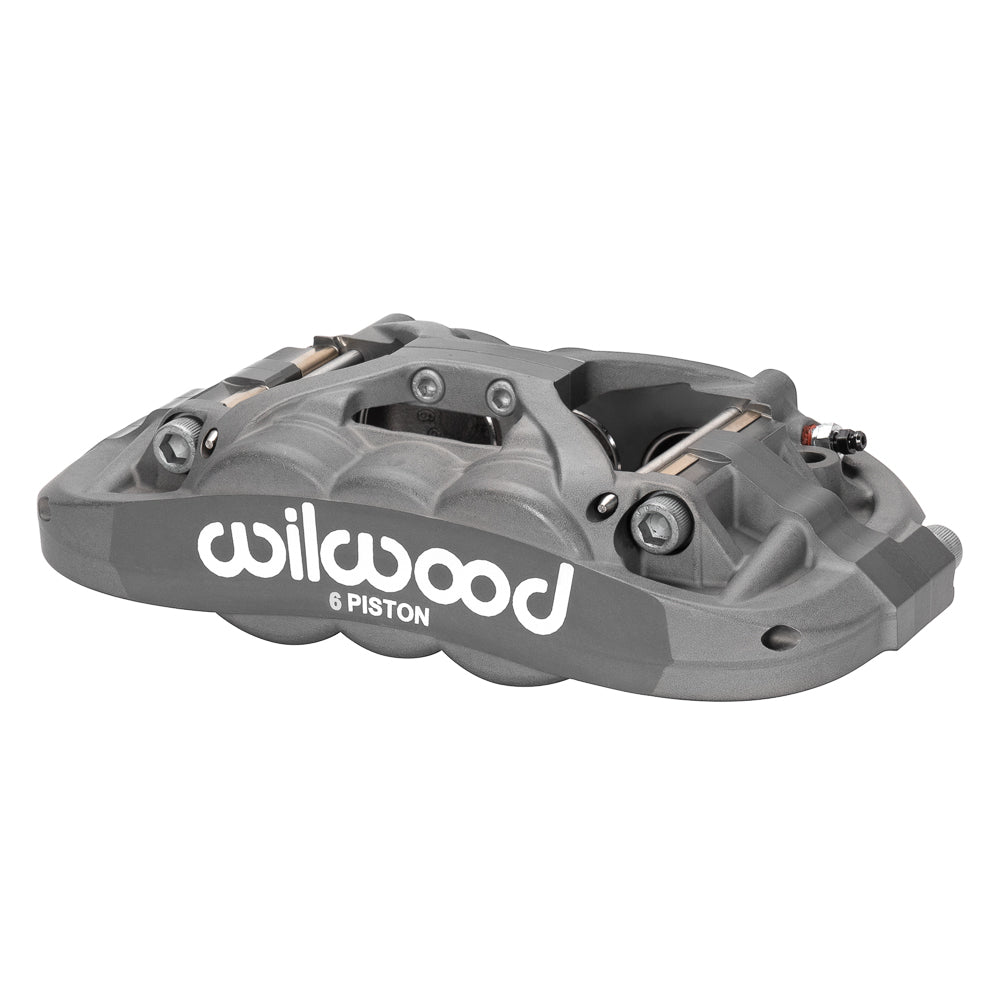

A nominal 1.25-inch rotor channel pairs with the larger 4.86-square-inch piston area on this anodized Wilwood XRS6R. Its right-hand body uses six stainless pistons, with differential sizes that must follow the intended direction of rotor travel. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17219. Type: Forged XRS6R Radial Mount caliper.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Mounting: radial, 5.98-inch centers; orientation: right hand. 0.39-inch holes; 1.45-inch mounting height.
- Piston arrangement: 6 stainless steel pistons; bore specification 1.75/1.25/1.25 inches. Effective piston area: 4.86 square inches.
- Rotor channel: 1.25-inch nominal width. Specified width limits: 1.19–1.25 inch; rotor outside diameter: 11.75–14.00 inches.
- Caliper body: forged aluminum; finish: Type III Anodize.
- Piston dust boots: no.
- Brake pad shape: 10416. Choose pad dimensions and friction material for the brake system.
- Caliper component weight: approximately 5.2 lb.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Check the rotor against the 1.19–1.25-inch width limits and confirm its friction diameter with the radial bracket. Retain the hydraulic design's intended effective piston area when replacing a caliper in an existing installation.
