Product details

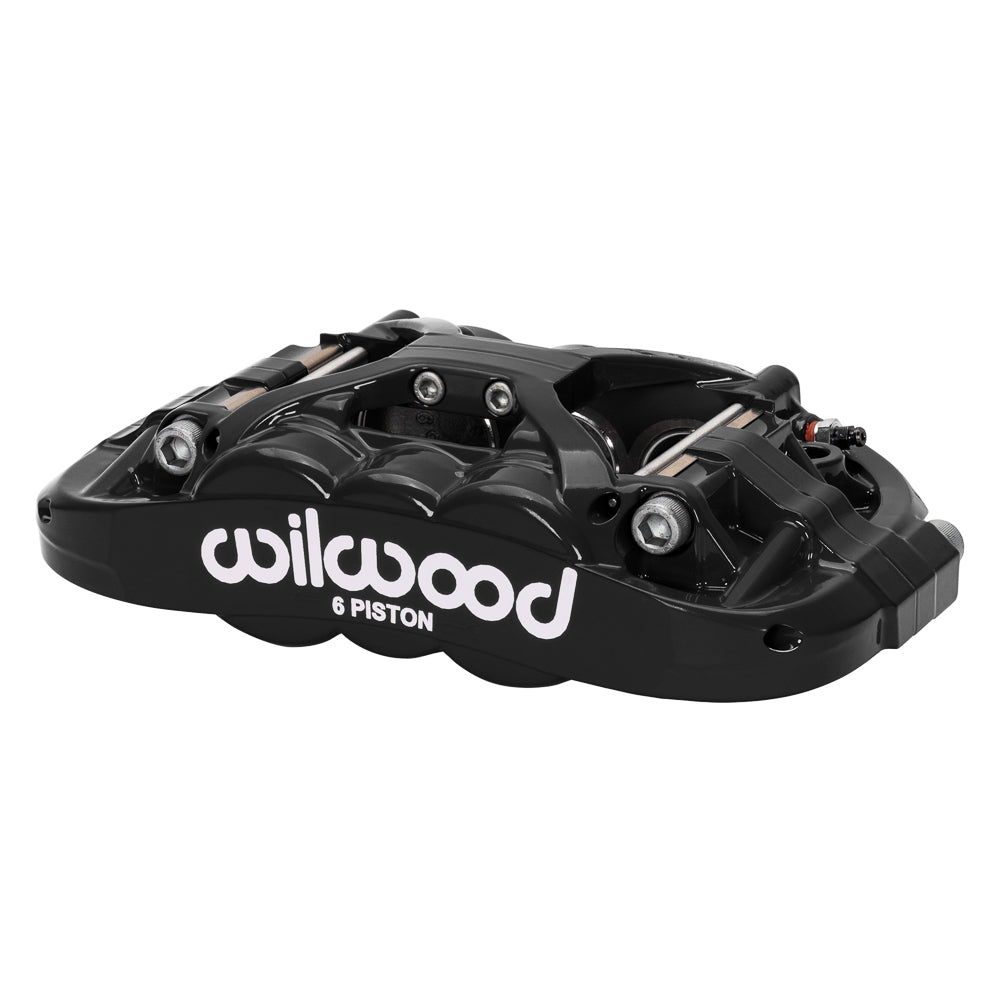

Black powder coat finishes this left-hand Wilwood XRS6R for the 1.10-inch nominal rotor-width arrangement. The forged body houses six differential pistons with 4.86 square inches of effective area and retains the X-shaped bridge across the pad opening. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc braking systems for motorsport, street-performance and specialized applications, with a component range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17218-BK. Type: Forged XRS6R Radial Mount caliper.
- Compatible pad profile 10416; confirm thickness and compound for the installation.
- Black Powder Coat finish on a forged aluminum body.
- Nominal rotor width 1.10 inch; compatible width range 1.00–1.10 inch. Rotor diameter specification: 11.75–14.00 inches.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- 6-piston hydraulic layout with 1.75/1.25/1.25-inch bores and 4.86 sq in of effective area; piston type: stainless steel.
- 5.98-inch-center radial attachment, left hand orientation. 0.39-inch holes; 1.45-inch mounting height.
- Piston dust boots: no.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Caliper component weight: approximately 5.2 lb.
Fitment & Compatibility
Use the 11.75–14.00-inch rotor envelope as a dimensional check, not a chassis-fit guarantee. The bracket must establish the correct height and offset while preserving hose, wheel and bleed-screw clearance.
With 20+ years of experience, PMB Performance can help assess the brake hardware. Provide the caliper number, rotor dimensions and bracket measurements when asking about compatibility.
