Product details

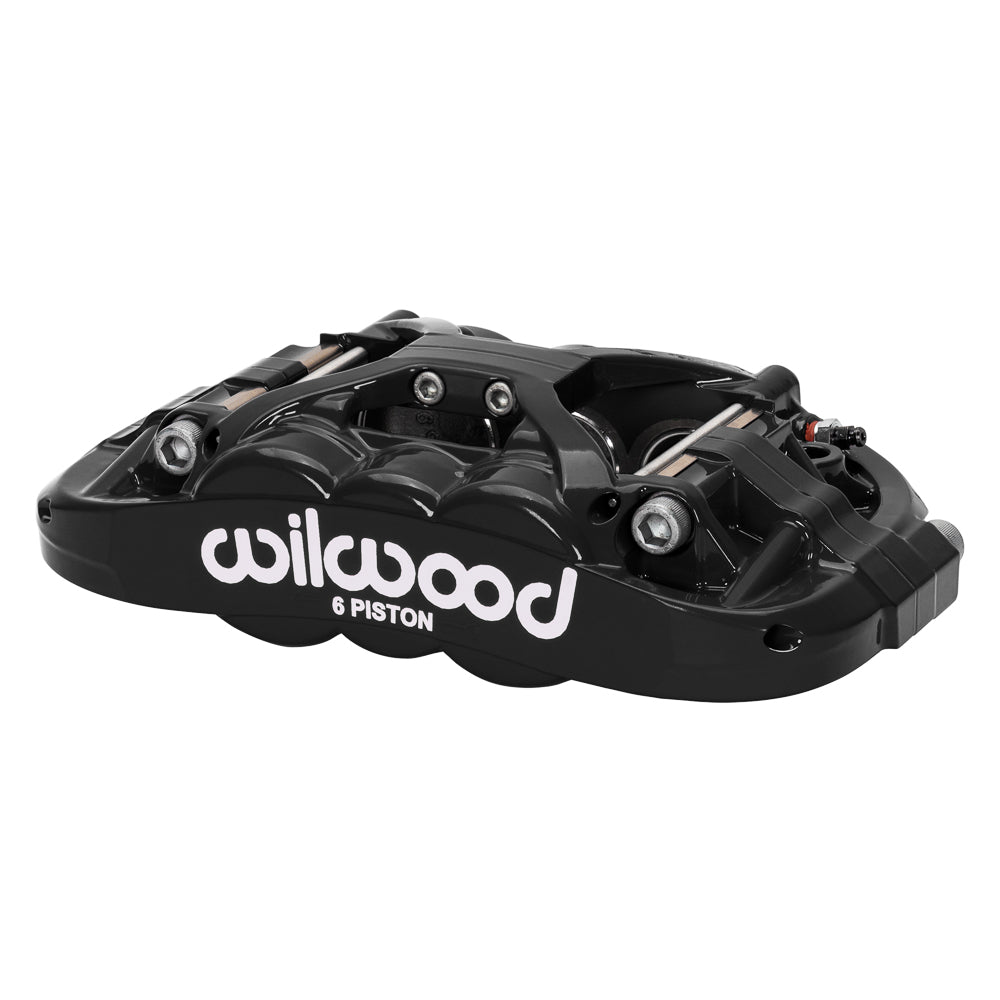

A black powder-coated XRS6R housing contains six stainless pistons in this right-hand Wilwood caliper. The larger 4.86-square-inch effective area accompanies a nominal 1.10-inch rotor-width channel, distinguishing it from smaller-bore members of the same family. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977; its motorsport, street-performance and specialized range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17217-BK. Type: Forged XRS6R Radial Mount caliper.
- Nominal rotor width 1.10 inch; compatible width range 1.00–1.10 inch. Rotor diameter specification: 11.75–14.00 inches.
- 6-piston hydraulic layout with 1.75/1.25/1.25-inch bores and 4.86 sq in of effective area; piston type: stainless steel.
- Black Powder Coat finish on a forged aluminum body.
- 5.98-inch-center radial attachment, right hand orientation. 0.39-inch holes; 1.45-inch mounting height.
- Compatible pad profile 10416; confirm thickness and compound for the installation.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Piston dust boots: no.
- Caliper component weight: approximately 5.2 lb.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
Confirm an actual rotor width within 1.00–1.10 inches and its offset relative to the bracket. Check the wheel barrel around the caliper body and ensure the chosen inlet fitting clears adjacent hardware.
