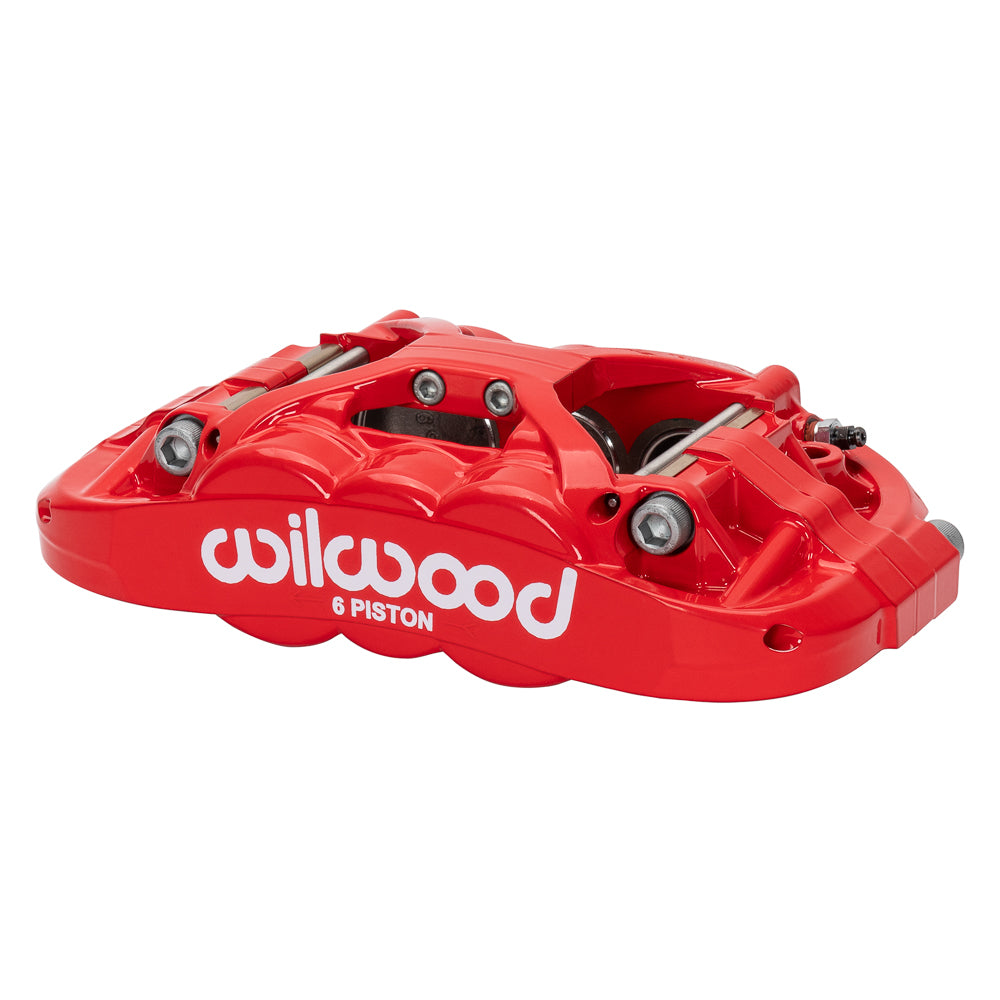

Wilwood Red Left XRS6R Radial Brake Caliper, 1.10-Inch Rotor Width / 4.04-Square-Inch Area: Red XRS caliper in an angled logo-side view, with an open X-shaped center bridge, retaining hardware and visible six-piston lettering.

Wilwood Red Left XRS6R Radial Brake Caliper, 1.10-Inch Rotor Width / 4.04-Square-Inch Area

SKU: 120-17212-RD

$677.99 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The red left-hand Wilwood XRS6R combines a 4.04-square-inch effective piston area with a nominal 1.10-inch rotor width. Internal fluid ports link the opposing banks, and the radial mount allows its alignment to be established through the correct caliper bracket. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977; its motorsport, street-performance and specialized range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-17212-RD. Type: Forged XRS6R Radial Mount caliper.
  • Rotor dimensions: outside diameter 11.75–14.00 inches; nominal width 1.10 inch, with width limits of 1.00–1.10 inch.
  • Bore sequence 1.62/1.12/1.12 inches across 6 pistons. Piston construction: stainless steel; specified effective area 4.04 square inches.
  • Construction and surface: forged aluminum, finished in Red Powder Coat.
  • Attachment geometry: radial mount with 5.98-inch centers; left hand. 0.39-inch holes; 1.45-inch mounting height.
  • Pad fit uses shape 10416. Match the pad to the rotor and intended operating conditions.
  • Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
  • Piston dust boots: no.
  • Caliper component weight: approximately 5.2 lb.
  • Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.

Fitment & Compatibility

Use a rotor diameter between 11.75 and 14.00 inches with the appropriate pad sweep and hat offset. Check inlet-fitting clearance and access to the bleeders after determining the final mounting position.
