Product details

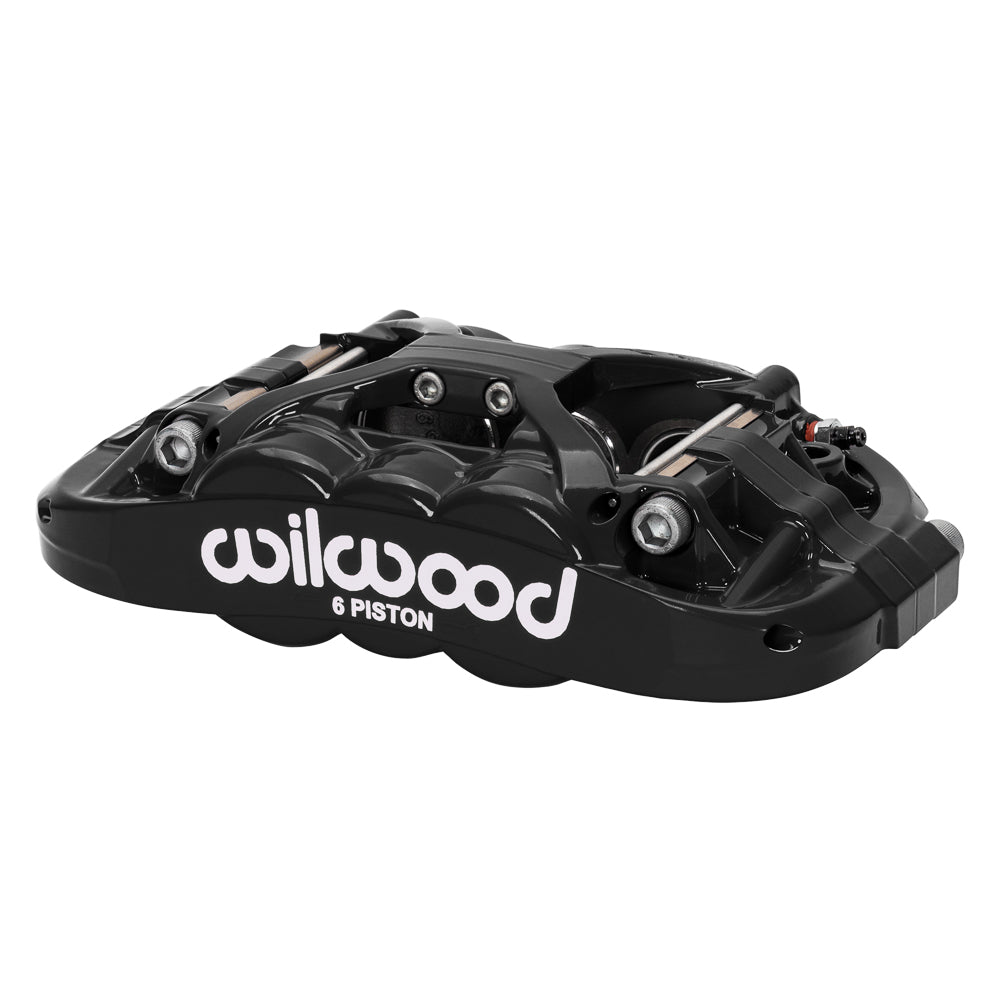

Black powder coat covers the forged housing of this left-hand Wilwood XRS6R. Its six stainless pistons use 1.62/1.12/1.12-inch bores, while the nominal 1.10-inch rotor-width bridge and internal passages complete the selected configuration. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc braking systems for motorsport, street-performance and specialized applications, with a component range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17212-BK. Type: Forged XRS6R Radial Mount caliper.
- Black Powder Coat finish on a forged aluminum body.
- 5.98-inch-center radial attachment, left hand orientation. 0.39-inch holes; 1.45-inch mounting height.
- 6-piston hydraulic layout with 1.62/1.12/1.12-inch bores and 4.04 sq in of effective area; piston type: stainless steel.
- Compatible pad profile 10416; confirm thickness and compound for the installation.
- Nominal rotor width 1.10 inch; compatible width range 1.00–1.10 inch. Rotor diameter specification: 11.75–14.00 inches.
- Piston dust boots: no.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Caliper component weight: approximately 5.2 lb.
Fitment & Compatibility
Confirm that the caliper's left-hand designation suits the bracket and rotor direction. Check the 1.00–1.10-inch width allowance and wheel clearance without assuming all XRS6R variants share the same hydraulic area.
