Product details

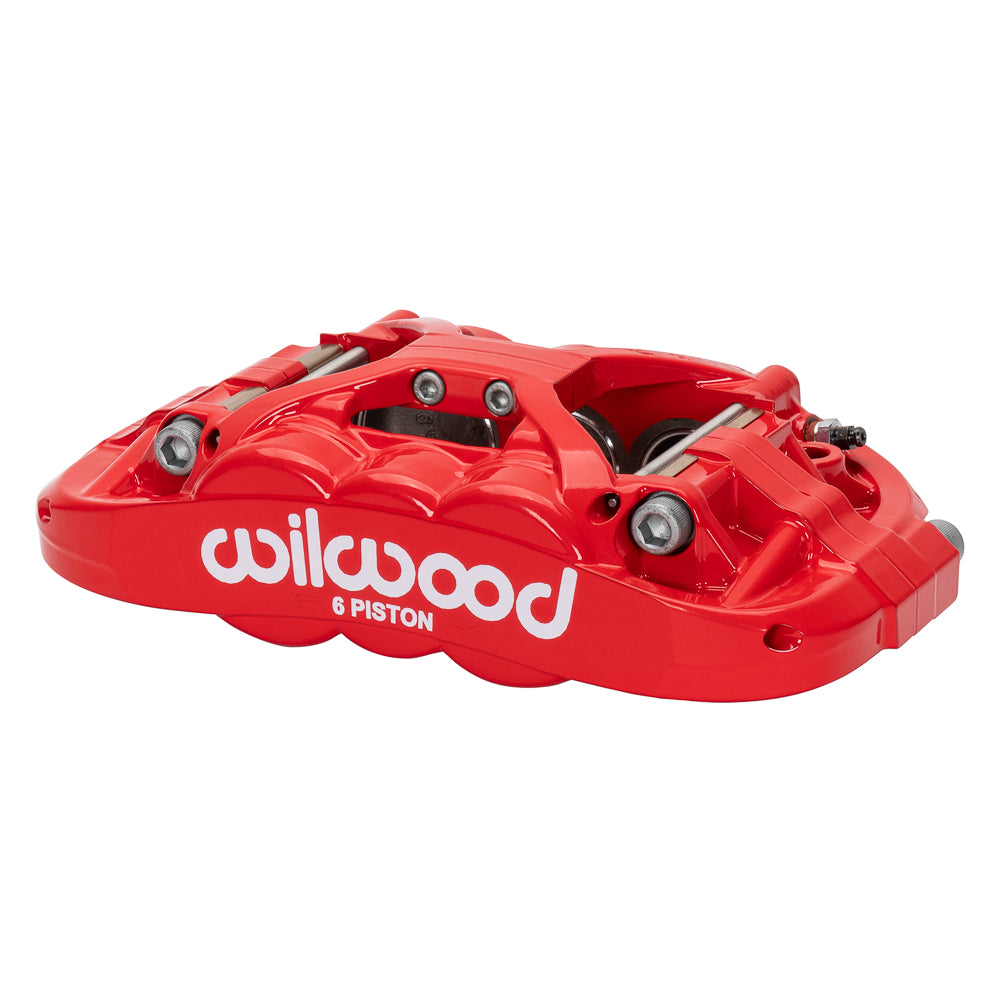

This red Wilwood XRS6R uses a 1.62-inch piston followed by two 1.12-inch bores on each opposing bank. The right-hand caliper is selected for its 4.04-square-inch effective area and 1.10-inch nominal rotor-width specification, not simply the number of pistons. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17211-RD. Type: Forged XRS6R Radial Mount caliper.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Attachment geometry: radial mount with 5.98-inch centers; right hand. 0.39-inch holes; 1.45-inch mounting height.
- Bore sequence 1.62/1.12/1.12 inches across 6 pistons. Piston construction: stainless steel; specified effective area 4.04 square inches.
- Rotor dimensions: outside diameter 11.75–14.00 inches; nominal width 1.10 inch, with width limits of 1.00–1.10 inch.
- Construction and surface: forged aluminum, finished in Red Powder Coat.
- Piston dust boots: no.
- Pad fit uses shape 10416. Match the pad to the rotor and intended operating conditions.
- Caliper component weight: approximately 5.2 lb.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
Fitment & Compatibility
The matching bracket must center the housing over a rotor within the listed diameter limits. Keep the differential-piston orientation correct when choosing a mounting location ahead of or behind the spindle.
