Product details

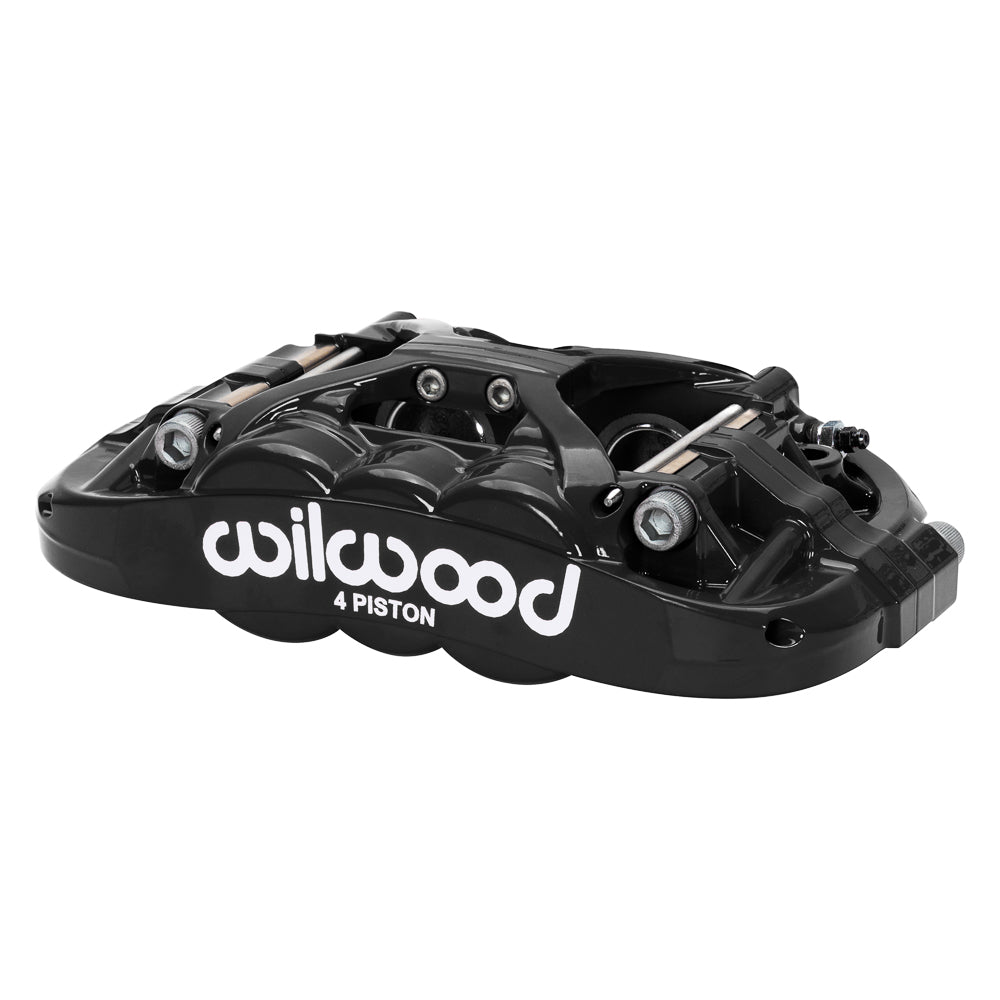

Check the 5.98-inch mounting centers before fitting this black Wilwood XRS4R brake caliper. The component is sold individually and uses 1.12/1.12-inch bores in its 0.81-inch rotor-width configuration. The forged XRS4R is a four-piston radial caliper with an X-shaped center bridge and internal fluid passages. Its 10416 pad outline differs from the older Narrow Superlite pad shape. Match the radial bracket, rotor width and hydraulic bore before choosing this individual component. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another.
Technical Details
- Manufacturer part number: 120-17200-BK
- Component: Forged XRS4R Radial Mount; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Black Powder Coat
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.84 inches
- Rotor diameter range: 11.75–14.00 inches
- Caliper weight reference: 4.9 lb
- Mounting interface: Radial; mounting centers 5.98 inches
- Mounting-hole diameter: 0.39 inches
- Mount height: 1.45 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Pistons: 4; stainless steel; bore dimensions 1.12/1.12 inches
- Hydraulic piston area: 1.98 square inches
- Dust boots: No
- Brake pad shape: 10416; shape number does not specify a friction compound
Fitment & Compatibility
Compare the caliper drawing with your radial bracket before ordering. The 5.98-inch mounting centers and 1.12/1.12-inch bores must suit the installed rotor offset and hydraulic system. Axle placement is determined by the engineered brake package, not by a generic caliper designation. A suitable pad sweep and clearance inside the wheel must be verified independently of rotor width.
Wilwood caliper specifications
For a modified brake system, provide its existing component specifications along with the vehicle details. PMB Performance has over 20 years of parts and fitment experience to help check the assembly before purchase.
