Product details

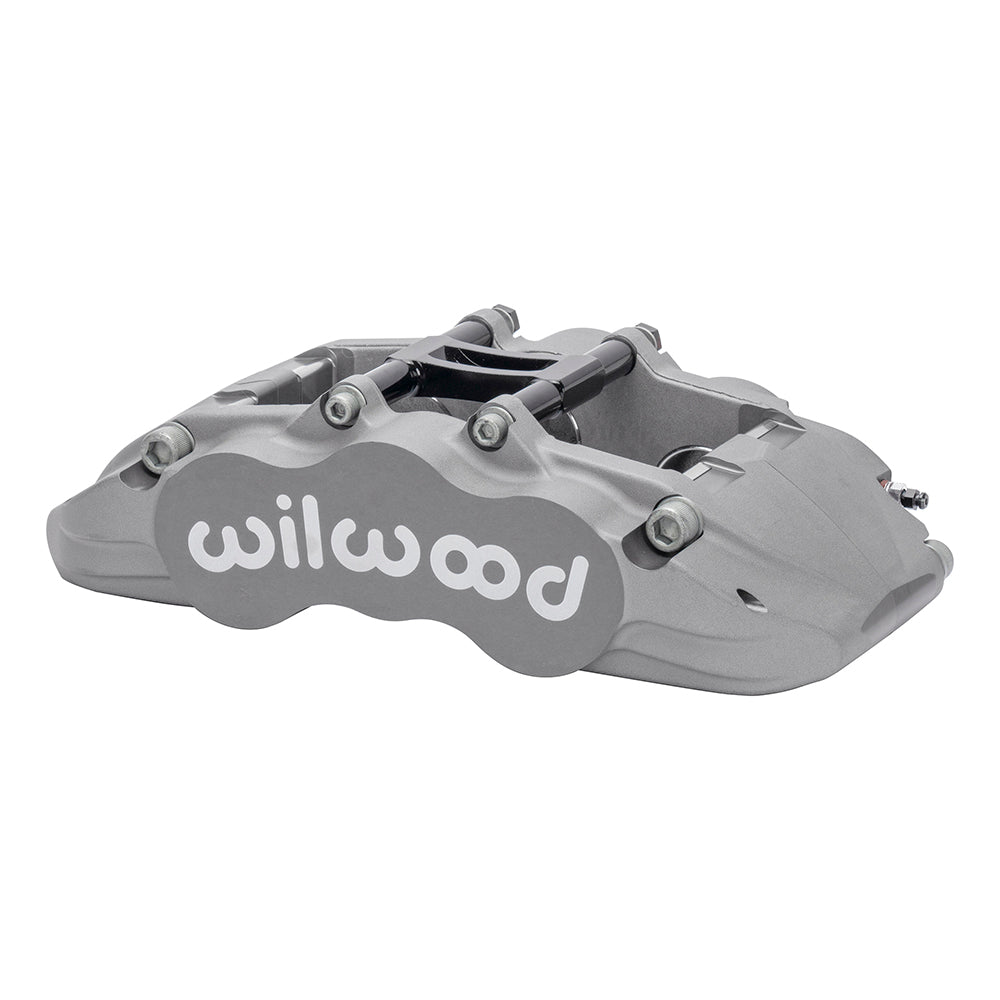

This anodized Wilwood AV6R right brake caliper uses a 7.09-inch radial mount and the 1.30-inch rotor-width configuration. It is sold as one caliper, with its piston and mounting specification selected for the complete brake assembly. AV6R is a forged six-piston radial caliper with a specific bracket offset. This exact unit must be selected by its piston material and bore combination as well as rotor width; the AV6R range contains configurations that are not interchangeable. Based in Camarillo, California, Wilwood Engineering has its origins in the company Bill Wood founded in 1977. Its designs and manufactured disc brake products cover calipers and rotors alongside master cylinders, valves, fittings and lines. Motorsport, street-performance and specialized installations each require components selected for the complete system.
Technical Details
- Manufacturer part number: 120-17179
- Component: AV6R Radial Mount; one individual caliper
- Placement: Right
- Construction and finish: Forged aluminum; Type III Anodize
- Mounting interface: Radial; mounting centers 7.09 inches
- Mounting-hole diameter: 0.45 inches
- Mount height: 2.33 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Nominal rotor width: 1.30 inches
- Rotor width range: 1.25–1.30 inches
- Rotor diameter range: 11.75–13.28 inches
- Caliper weight reference: 7.8 lb
- Pistons: 6; stainless steel; bore dimensions 1.62/1.38/1.38 inches
- Hydraulic piston area: 5.06 square inches
- Dust boots: No
- Brake pad shape: 7520; shape number does not specify a friction compound
Fitment & Compatibility
Match the 7.09-inch radial attachment to the existing bracket, then check caliper centering over the 1.30-inch nominal-width rotor. Use the right-hand caliper and keep the bleed arrangement in the specified orientation. The 1/8-27 NPT connection must use the correct fitting and seal. Check the full wheel envelope with the actual bracket and rotor installed.
Wilwood caliper specifications
Contact PMB Performance for a component comparison using the actual caliper, bracket and rotor measurements. Our team has over 20 years of experience with parts and fitment details.
