Product details

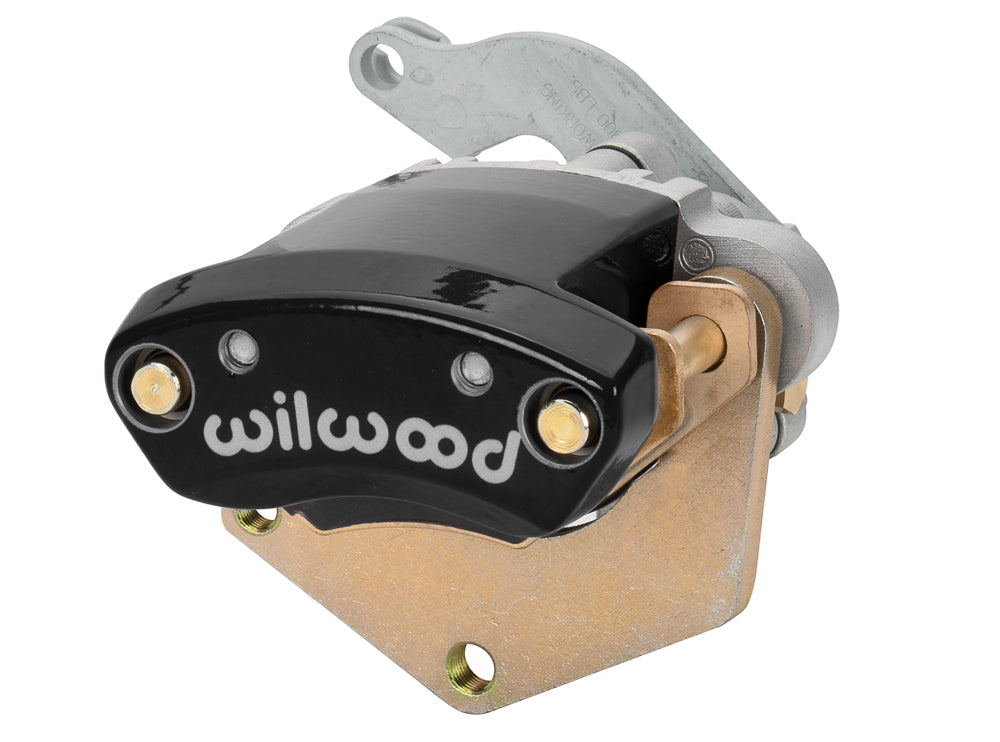

Wilwood MC4 calipers must be matched by width and mounting configuration. This black left mechanical parking brake caliper has 1.19-inch bore dimensions, a 2.00-inch mounting span and the 1.10-inch-wide rotor specification. MC4 is a separate cable-operated parking caliper with a manual wear adjuster and return spring. Its lever accepts a 0.310-inch barrel-ended cable and can be clocked for routing. Pads and the caliper mounting plate are supplied; parking cables and a vehicle-specific conversion are separate. The Wilwood disc brake range is designed and manufactured for motorsport, street-performance and specialized applications. It includes brake lines, fittings, valves and master cylinders together with calipers and brake rotors. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California; its components must be matched to the complete braking system.
Technical Details
- Manufacturer part number: 120-17144-BK
- Component: MC4 Mechanical; one individual caliper
- Placement: Left
- Construction and finish: Cast aluminum; Black Powder Coat
- Nominal rotor width: 1.10 inches
- Rotor width range: 0.99–1.10 inches
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 3.8 lb
- Mounting interface: Floating; mounting centers 2.00 inches
- Mounting-hole diameter: 0.67 inches
- Hydraulic inlet: none; this is a separate parking caliper
- Pistons: 1; aluminum; bore dimensions 1.19 inches
- Actuation: mechanical cable with manual wear adjustment
- Dust boots: Yes
- Brake pad shape: 6407; shape number does not specify a friction compound
Supplied as one mechanical caliper with pads and its mounting plate. The parking cable and any vehicle-specific mounting adapters are separate.
Fitment & Compatibility
Confirm the cable pull direction, the 2.00-inch offset mounting plate and the rotor centerline. Check that the cable has the required 0.310-inch barrel end and that the lever can return fully. This is one parking caliper; it does not replace the hydraulic service caliper.
