Product details

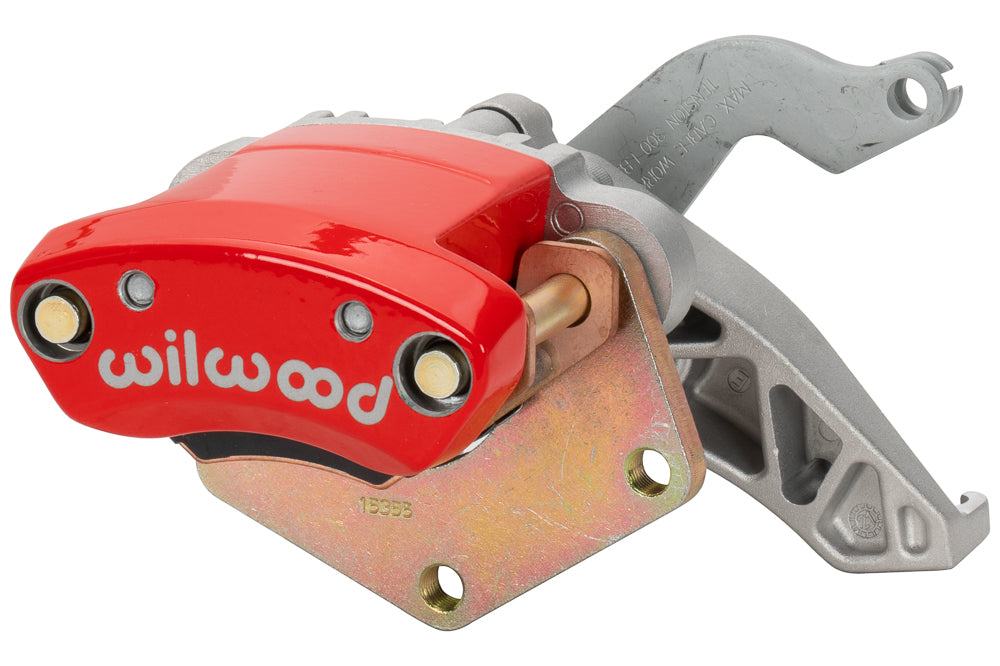

This red Wilwood MC4 right mechanical parking brake caliper uses a 2.00-inch floating mount and the 1.10-inch rotor-width configuration. It is sold as one caliper, with its piston and mounting specification selected for the complete brake assembly. MC4 is a separate cable-operated parking caliper with a manual wear adjuster and return spring. Its lever accepts a 0.310-inch barrel-ended cable and can be clocked for routing. Pads and the caliper mounting plate are supplied; parking cables and a vehicle-specific conversion are separate. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures calipers, rotors, master cylinders, valves, fittings and brake lines as part of its disc brake range. Its motorsport, street-performance and specialized products are chosen around the requirements of the whole braking system.
Technical Details
- Manufacturer part number: 120-17143-RD
- Component: MC4 Mechanical; one individual caliper
- Placement: Right
- Construction and finish: Cast aluminum; Red Powder Coat
- Pistons: 1; aluminum; bore dimensions 1.19 inches
- Actuation: mechanical cable with manual wear adjustment
- Dust boots: Yes
- Brake pad shape: 6407; shape number does not specify a friction compound
- Nominal rotor width: 1.10 inches
- Rotor width range: 0.99–1.10 inches
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 3.8 lb
- Mounting interface: Floating; mounting centers 2.00 inches
- Mounting-hole diameter: 0.67 inches
- Hydraulic inlet: none; this is a separate parking caliper
Supplied as one mechanical caliper with pads and its mounting plate. The parking cable and any vehicle-specific mounting adapters are separate.
Fitment & Compatibility
Confirm the cable pull direction, the 2.00-inch offset mounting plate and the rotor centerline. Check that the cable has the required 0.310-inch barrel end and that the lever can return fully. This is one parking caliper; it does not replace the hydraulic service caliper.
