Product details

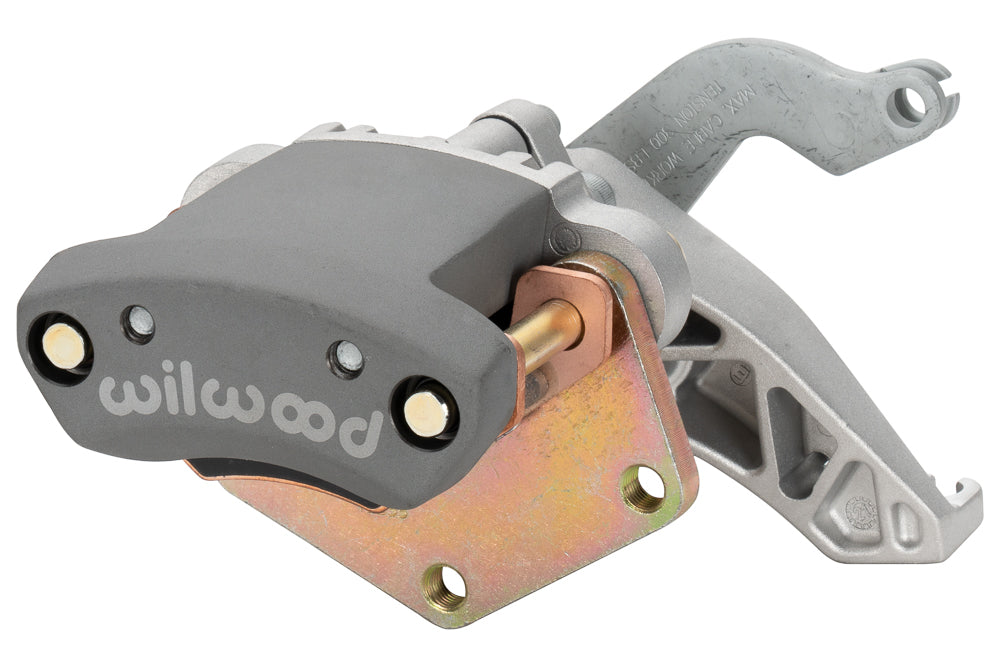

Wilwood supplies this right MC4 mechanical parking brake caliper with an anodized finish. Its 2.00-inch mounting span and 1.10-inch-wide rotor configuration are key checks when selecting a single caliper for an existing system. MC4 is a separate cable-operated parking caliper with a manual wear adjuster and return spring. Its lever accepts a 0.310-inch barrel-ended cable and can be clocked for routing. Pads and the caliper mounting plate are supplied; parking cables and a vehicle-specific conversion are separate. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another.
Technical Details
- Manufacturer part number: 120-17143
- Component: MC4 Mechanical; one individual caliper
- Placement: Right
- Construction and finish: Cast aluminum; Type III Anodize
- Pistons: 1; aluminum; bore dimensions 1.19 inches
- Actuation: mechanical cable with manual wear adjustment
- Dust boots: Yes
- Brake pad shape: 6407; shape number does not specify a friction compound
- Mounting interface: Floating; mounting centers 2.00 inches
- Mounting-hole diameter: 0.67 inches
- Hydraulic inlet: none; this is a separate parking caliper
- Nominal rotor width: 1.10 inches
- Rotor width range: 0.99–1.10 inches
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 3.8 lb
Supplied as one mechanical caliper with pads and its mounting plate. The parking cable and any vehicle-specific mounting adapters are separate.
Fitment & Compatibility
Confirm the cable pull direction, the 2.00-inch offset mounting plate and the rotor centerline. Check that the cable has the required 0.310-inch barrel end and that the lever can return fully. This is one parking caliper; it does not replace the hydraulic service caliper.
