Product details

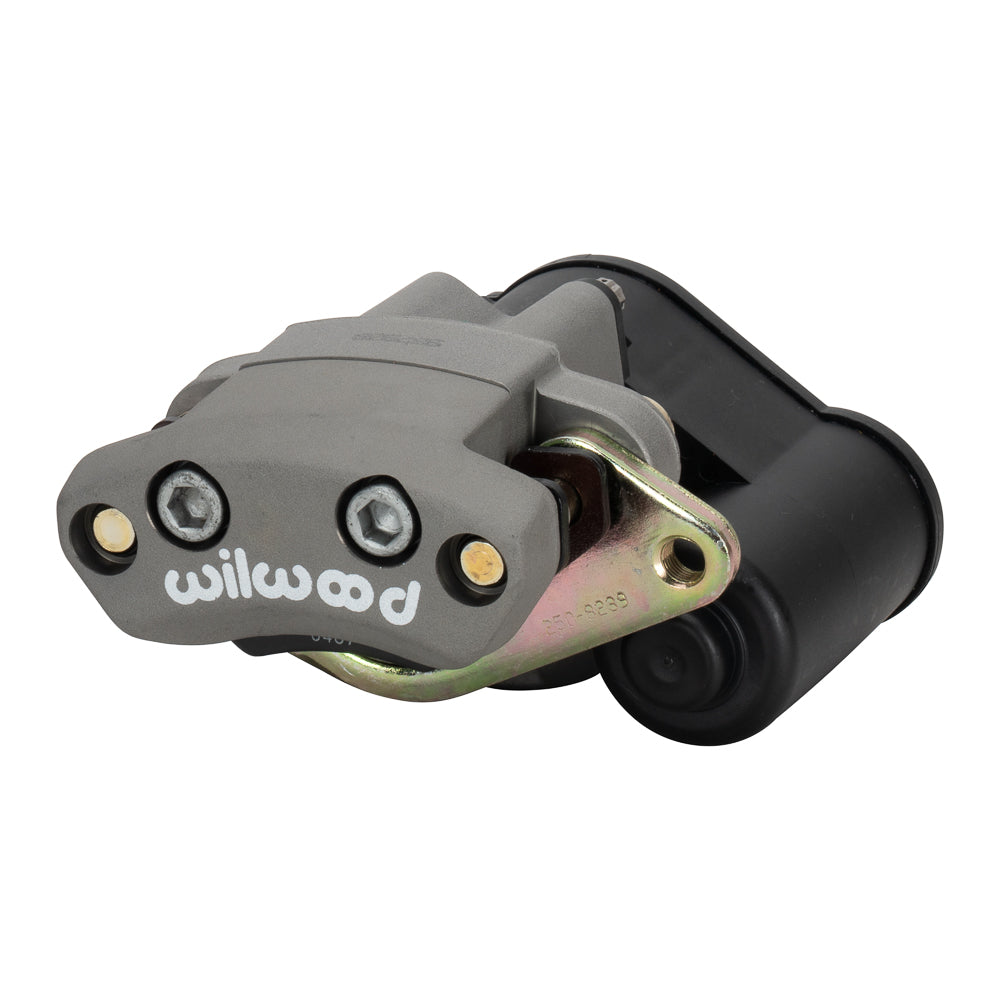

A nominal 0.62-inch rotor-width specification and 1.25-inch piston bore identify this left Wilwood EPB electric parking brake caliper. The anodized finish is applied to the exact component described below; match the mounting bracket before replacement. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures calipers, rotors, master cylinders, valves, fittings and brake lines as part of its disc brake range. Its motorsport, street-performance and specialized products are chosen around the requirements of the whole braking system. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion.
Technical Details
- Manufacturer part number: 120-16981
- Component: Electric Parking Brake; one individual caliper
- Placement: Left
- Construction and finish: aluminum / Steel; Type III Anodize
- Nominal rotor width: 0.62 inches; usable range requires confirmation
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 5.0 lb
- Mounting interface: Lug; mounting centers 4.75 inches
- Mount height: 0.36 inches
- Hydraulic inlet: none; this is a separate parking caliper
- Pistons: 1; steel; bore dimensions 1.25 inches
- Actuation: electric motor and gear drive
- Dust boots: No
- Brake pad shape: 6407; shape number does not specify a friction compound
One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.
Fitment & Compatibility
This is the nominal 0.62-inch EPB configuration, not a guarantee that a 0.62-inch-wide rotor is usable. Confirm the permitted width range directly with Wilwood before ordering: its product-page limits and FL567 do not agree. Verify the 4.75-inch mounting plate, motor side and separate controller, wiring and switch. Do not fabricate the installation until the rotor clearance is confirmed.
