Product details

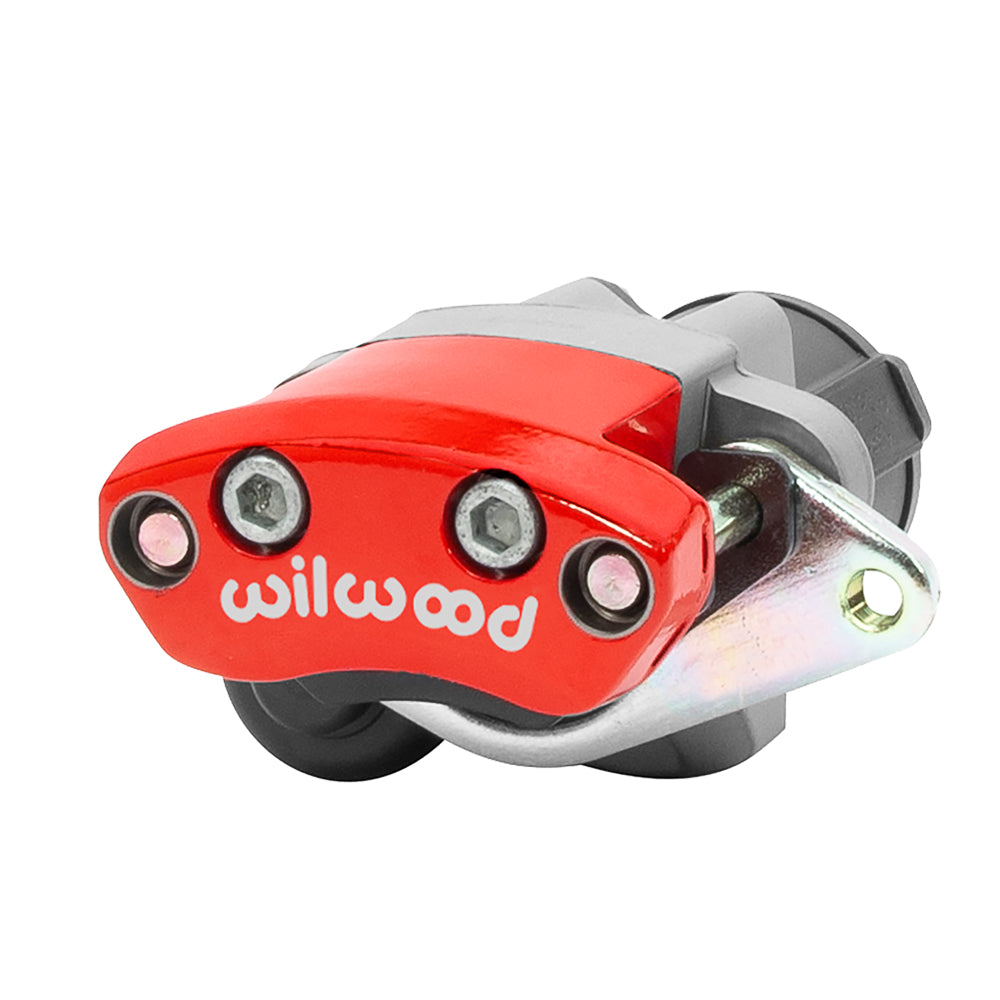

An individual Wilwood EPB right electric parking brake caliper, finished in red, is specified here. Use the 1.25-inch piston bore, 4.75-inch mounting centers and nominal 0.62-inch rotor width to compare it with the existing brake assembly. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion.
Technical Details
- Manufacturer part number: 120-16980-RD
- Component: Electric Parking Brake; one individual caliper
- Placement: Right
- Construction and finish: aluminum / Steel; Red Powder Coat
- Pistons: 1; steel; bore dimensions 1.25 inches
- Actuation: electric motor and gear drive
- Dust boots: No
- Brake pad shape: 6407; shape number does not specify a friction compound
- Nominal rotor width: 0.62 inches; usable range requires confirmation
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 5.0 lb
- Mounting interface: Lug; mounting centers 4.75 inches
- Mount height: 0.36 inches
- Hydraulic inlet: none; this is a separate parking caliper
One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.
Fitment & Compatibility
This is the nominal 0.62-inch EPB configuration, not a guarantee that a 0.62-inch-wide rotor is usable. Confirm the permitted width range directly with Wilwood before ordering: its product-page limits and FL567 do not agree. Verify the 4.75-inch mounting plate, motor side and separate controller, wiring and switch. Do not fabricate the installation until the rotor clearance is confirmed.
