Product details

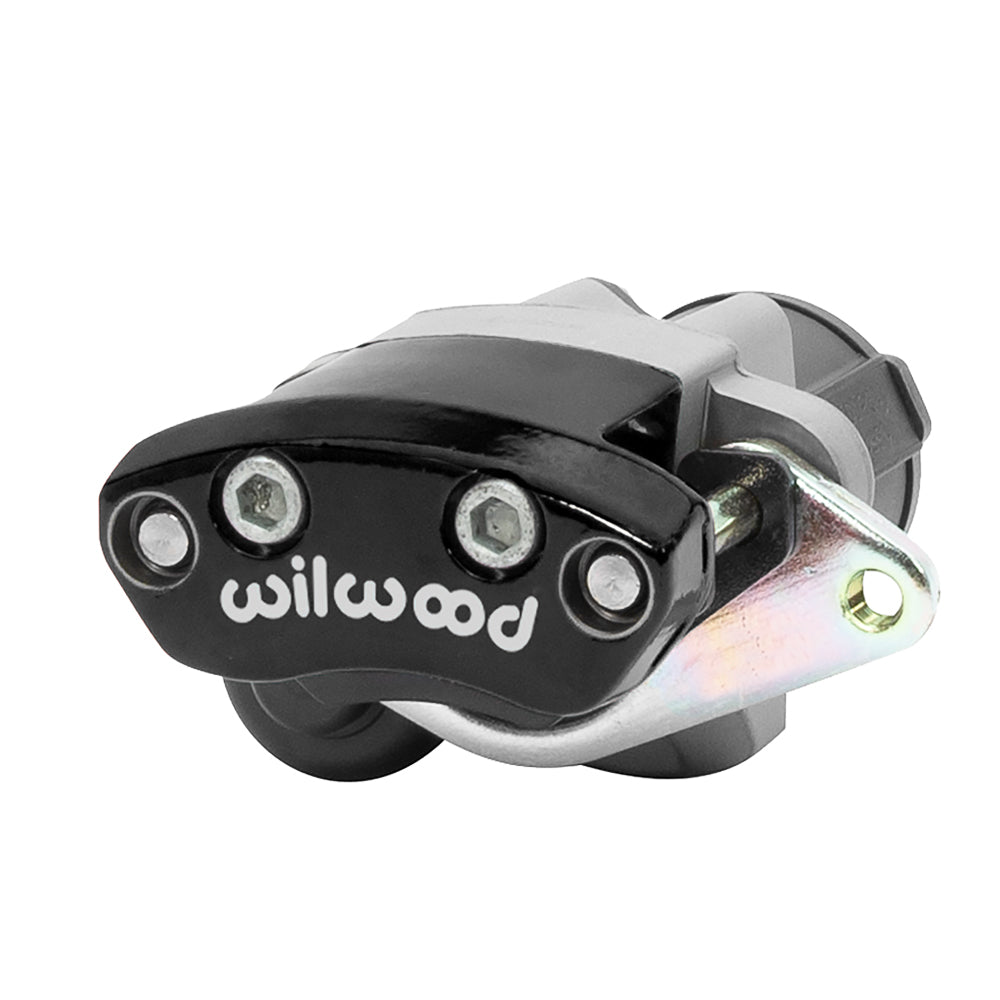

Select this black right Wilwood EPB electric parking brake caliper by the actual lug mounting geometry, not just its appearance. The 1-piston unit uses 1.25-inch bore dimensions and is configured around a nominal 0.62-inch-wide rotor. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion.
Technical Details
- Manufacturer part number: 120-16980-BK
- Component: Electric Parking Brake; one individual caliper
- Placement: Right
- Construction and finish: aluminum / Steel; Black Powder Coat
- Nominal rotor width: 0.62 inches; usable range requires confirmation
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 5.0 lb
- Pistons: 1; steel; bore dimensions 1.25 inches
- Actuation: electric motor and gear drive
- Dust boots: No
- Brake pad shape: 6407; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 4.75 inches
- Mount height: 0.36 inches
- Hydraulic inlet: none; this is a separate parking caliper
One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.
Fitment & Compatibility
This is the nominal 0.62-inch EPB configuration, not a guarantee that a 0.62-inch-wide rotor is usable. Confirm the permitted width range directly with Wilwood before ordering: its product-page limits and FL567 do not agree. Verify the 4.75-inch mounting plate, motor side and separate controller, wiring and switch. Do not fabricate the installation until the rotor clearance is confirmed.
