Product details

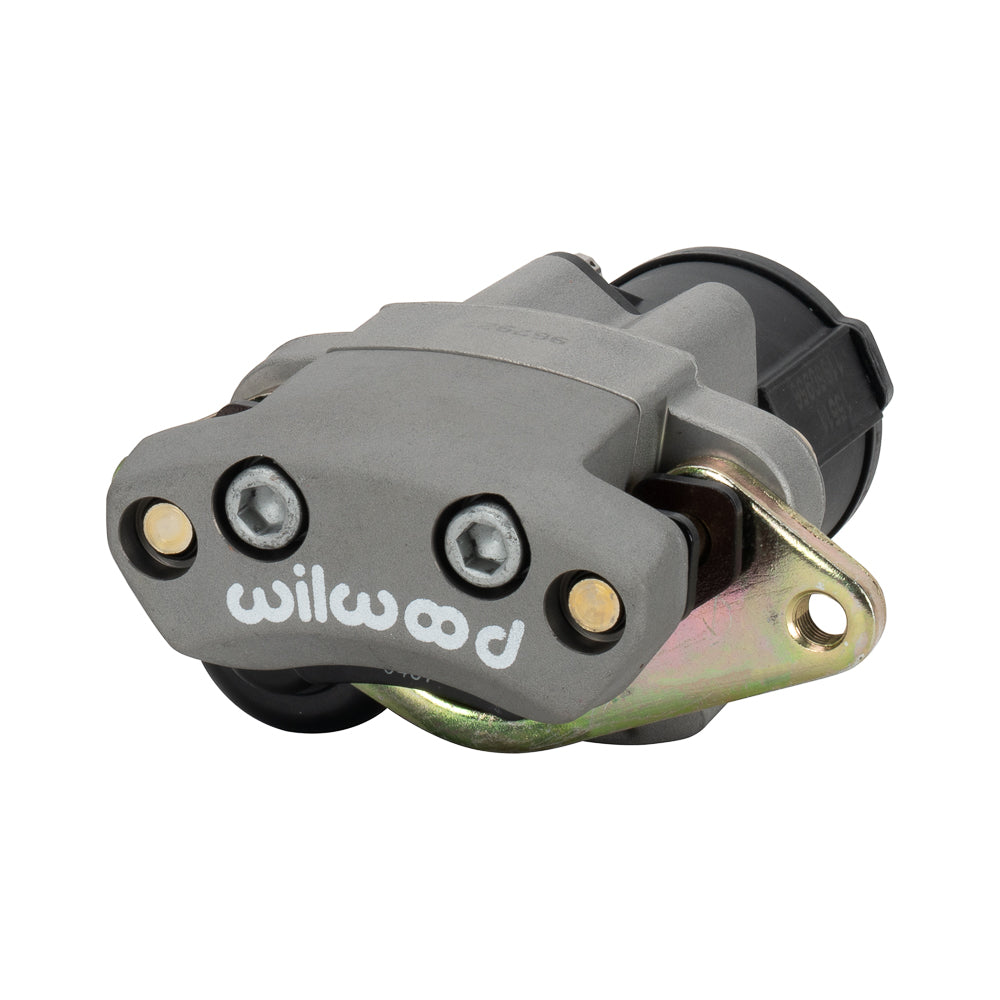

Wilwood EPB calipers must be matched by width and mounting configuration. This anodized right electric parking brake caliper has 1.25-inch bore dimensions, a 4.75-inch mounting span and the nominal 0.62-inch-wide rotor specification. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc brake design and manufacturing work includes master cylinders, valves, fittings and brake lines as well as rotors and calipers. The company serves motorsport, street-performance and specialized applications in which the entire brake system determines component choice. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion.
Technical Details
- Manufacturer part number: 120-16980
- Component: Electric Parking Brake; one individual caliper
- Placement: Right
- Construction and finish: aluminum / Steel; Type III Anodize
- Pistons: 1; steel; bore dimensions 1.25 inches
- Actuation: electric motor and gear drive
- Dust boots: No
- Brake pad shape: 6407; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 4.75 inches
- Mount height: 0.36 inches
- Hydraulic inlet: none; this is a separate parking caliper
- Nominal rotor width: 0.62 inches; usable range requires confirmation
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 5.0 lb
One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.
Fitment & Compatibility
This is the nominal 0.62-inch EPB configuration, not a guarantee that a 0.62-inch-wide rotor is usable. Confirm the permitted width range directly with Wilwood before ordering: its product-page limits and FL567 do not agree. Verify the 4.75-inch mounting plate, motor side and separate controller, wiring and switch. Do not fabricate the installation until the rotor clearance is confirmed.
Wilwood caliper specifications · Wilwood technical reference
Contact PMB Performance for a component comparison using the actual caliper, bracket and rotor measurements. Our team has over 20 years of experience with parts and fitment details.
