Product details

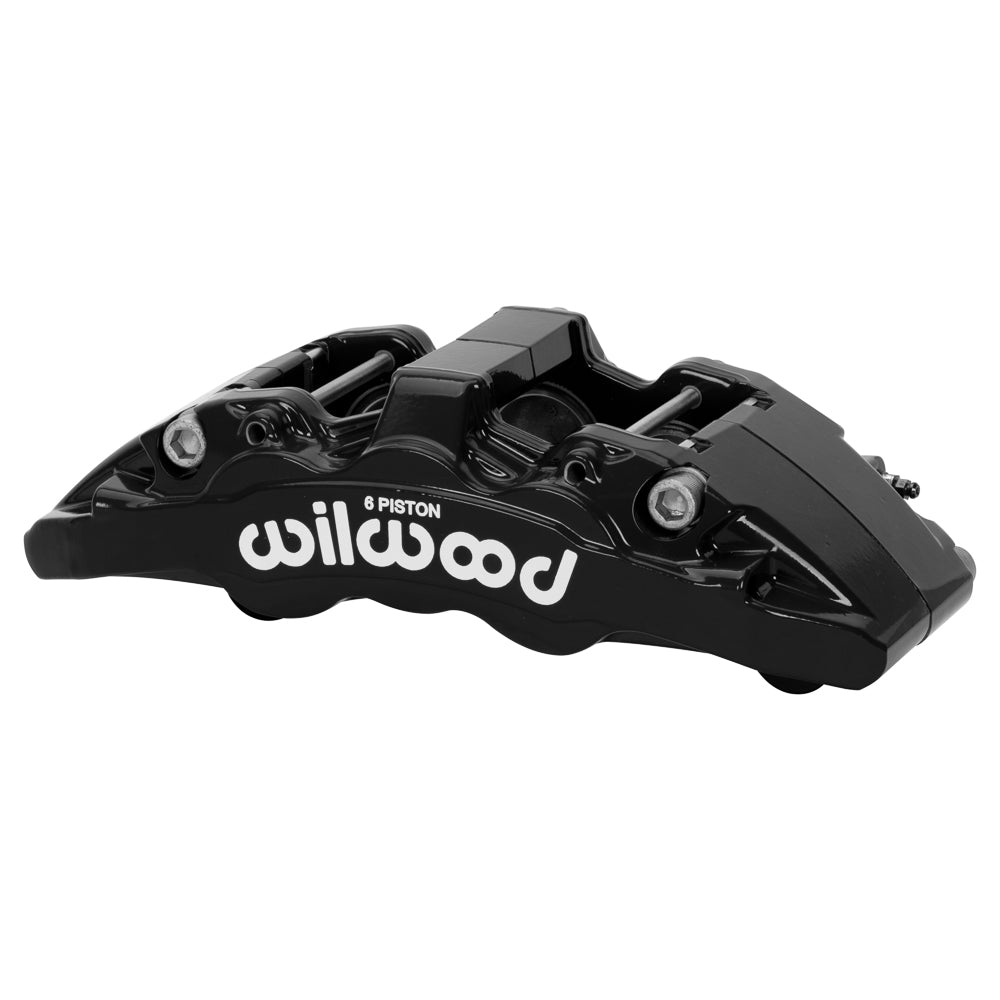

Select this black front right Wilwood AeroDM brake caliper for Jeep Wrangler JL/Gladiator JT by the actual lug mounting geometry, not just its appearance. The 6-piston unit uses 1.75/1.62/1.62-inch bore dimensions and is configured around a 1.25-inch-wide rotor. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures calipers, rotors, master cylinders, valves, fittings and brake lines as part of its disc brake range. Its motorsport, street-performance and specialized products are chosen around the requirements of the whole braking system. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement.
Technical Details
- Manufacturer part number: 120-16956-BK
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Black Powder Coat
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.7 lb
- Mounting interface: Lug; mounting centers 5.75 inches
- Mounting-hole diameter: 0.55 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
For the matching Wilwood AeroDM front conversion on Jeep Wrangler JL and Gladiator JT. Wilwood DS1550 identifies the 2018–2025 JL/JT platform range; verify the actual model year and Wilwood kit. Use the specified 13.38 × 1.25-inch-wide rotor and 5.75-inch lug arrangement; this caliper is not the JK bore configuration.
Wilwood caliper specifications · Wilwood technical reference
PMB Performance brings over 20 years of parts and fitment experience to brake component selection. A photograph of the existing brake and its mounting measurements helps us check the required configuration.
