Product details

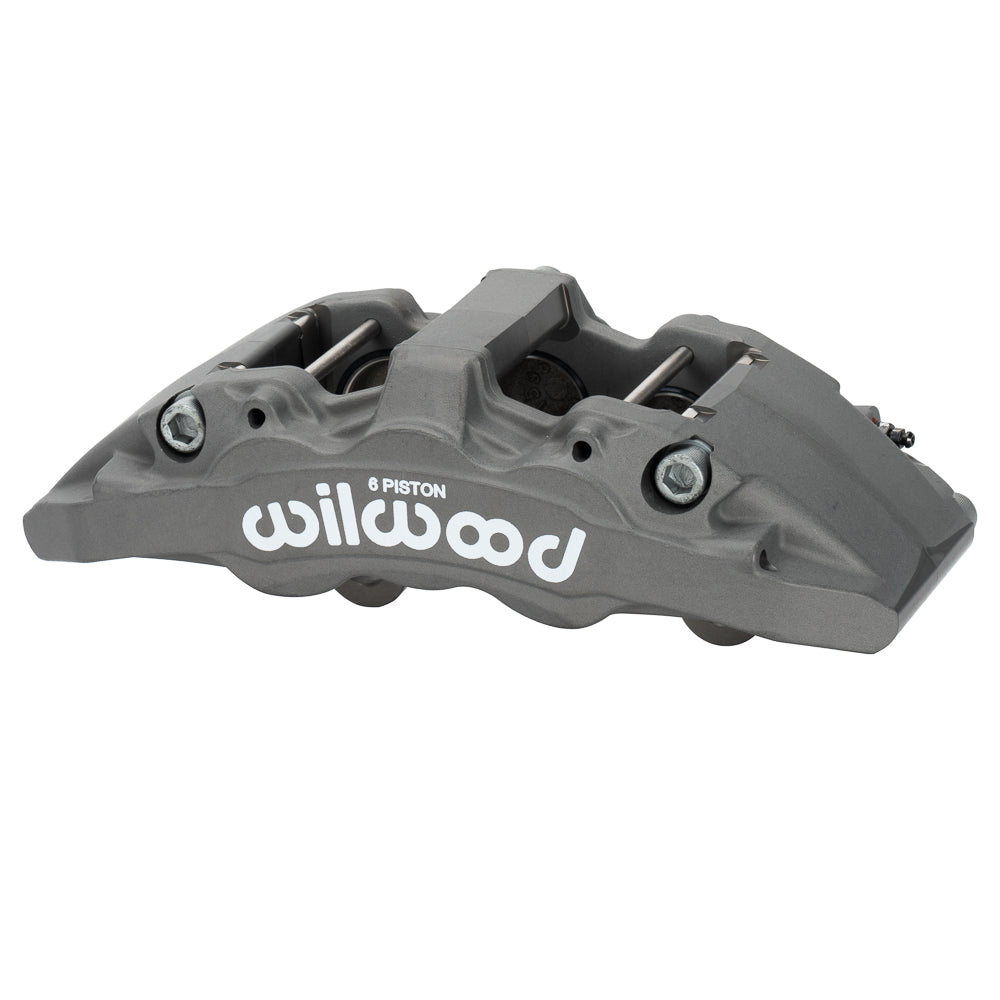

Wilwood AeroDM calipers must be matched by width and mounting configuration. This anodized front right brake caliper for Jeep Wrangler JL/Gladiator JT has 1.75/1.62/1.62-inch bore dimensions, a 5.75-inch mounting span and the 1.25-inch-wide rotor specification. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement.
Technical Details
- Manufacturer part number: 120-16956
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Type III Anodize
- Mounting interface: Lug; mounting centers 5.75 inches
- Mounting-hole diameter: 0.55 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.7 lb
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
Fitment & Compatibility
For the matching Wilwood AeroDM front conversion on Jeep Wrangler JL and Gladiator JT. Wilwood DS1550 identifies the 2018–2025 JL/JT platform range; verify the actual model year and Wilwood kit. Use the specified 13.38 × 1.25-inch-wide rotor and 5.75-inch lug arrangement; this caliper is not the JK bore configuration.
