Product details

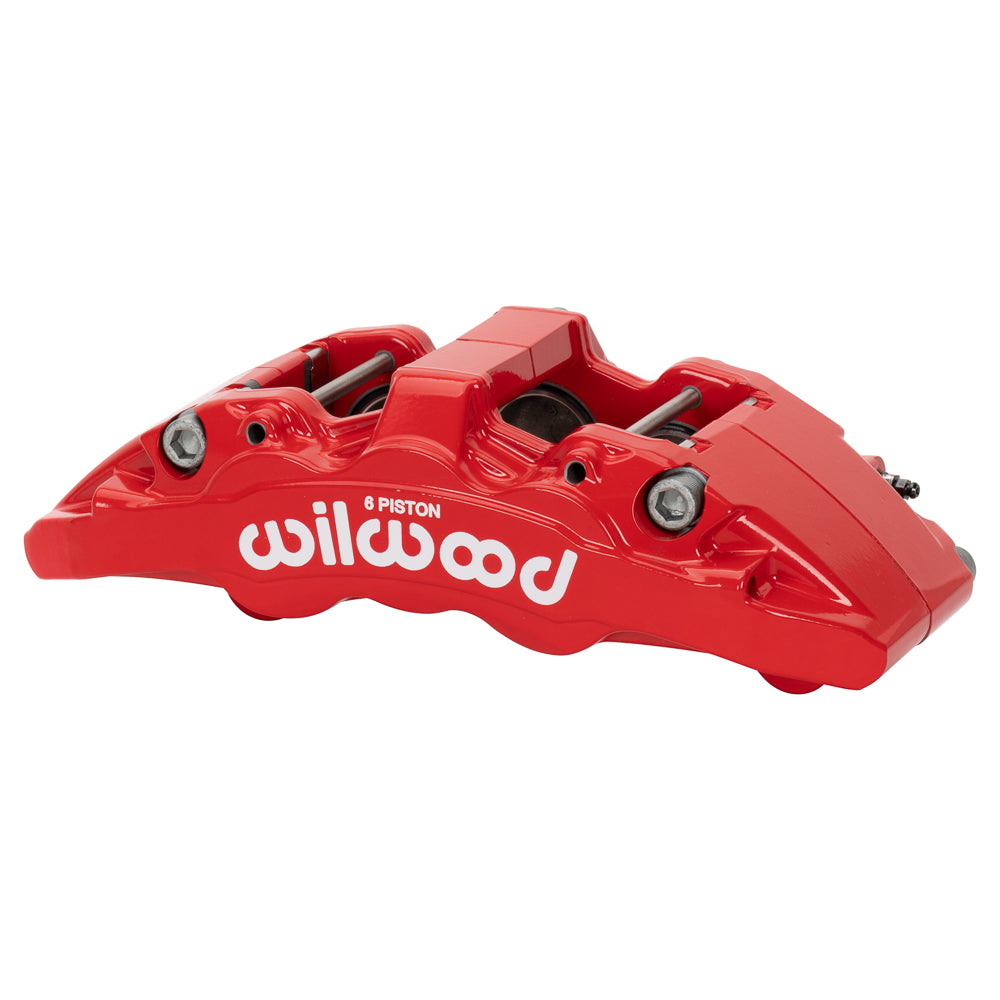

For a brake assembly requiring the 1.25-inch rotor-width version, this Wilwood AeroDM front left brake caliper for Jeep Wrangler JK provides the red configuration. Compare its lug mount and piston area with the component being replaced. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement.
Technical Details
- Manufacturer part number: 120-16953-RD
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Left
- Construction and finish: Forged aluminum; Red Powder Coat
- Pistons: 6; stainless steel; bore dimensions 1.75/1.38/1.38 inches
- Hydraulic piston area: 5.40 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 5.75 inches
- Mounting-hole diameter: 0.55 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.7 lb
Fitment & Compatibility
Replacement for the Wilwood AeroDM front conversion on Jeep Wrangler JK (2007–2018). Check the exact kit, 13.38 × 1.25-inch Wilwood rotor and 5.75-inch lug attachment. The JK piston combination differs from the JL/JT caliper despite the shared nominal rotor width.
