Product details

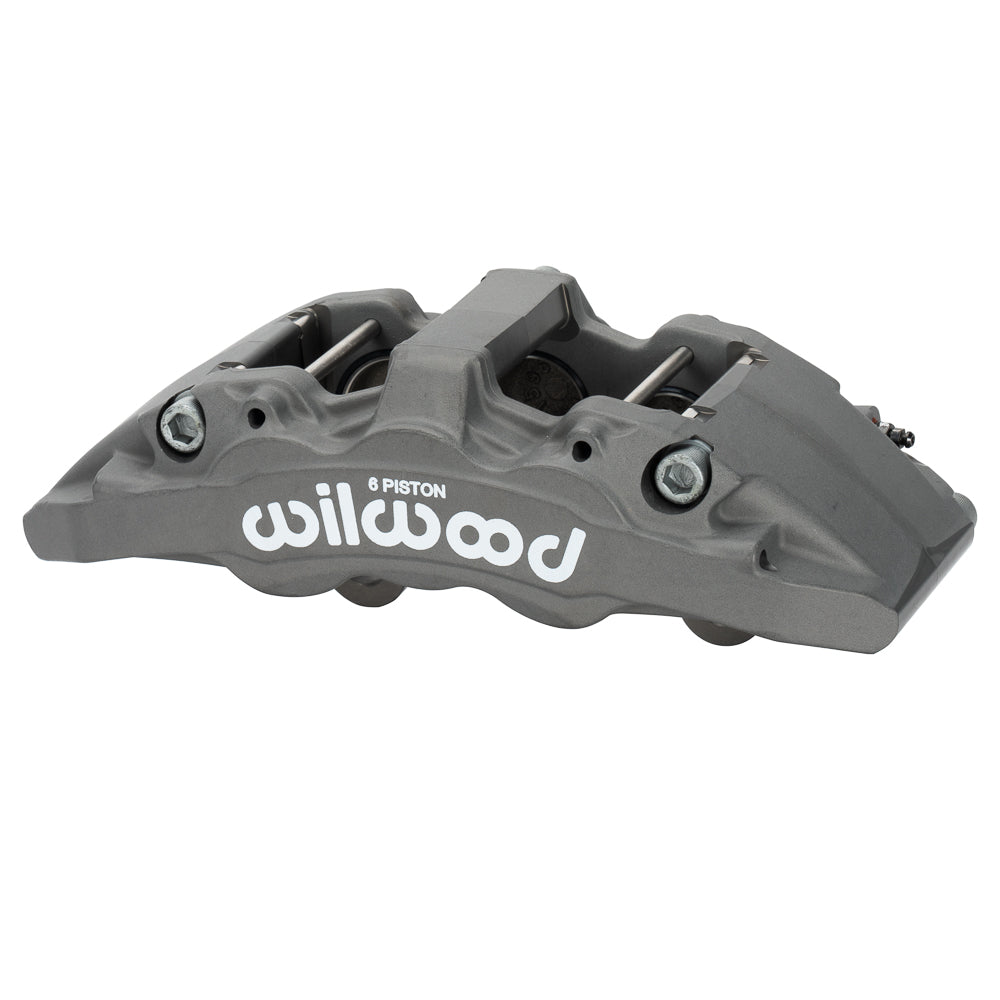

The 5.75-inch lug attachment distinguishes this front left Wilwood AeroDM brake caliper for Jeep Wrangler JK. This individual anodized unit is built for the 1.25-inch-wide rotor configuration and requires accurate alignment with the mating rotor and bracket. Based in Camarillo, California, Wilwood Engineering has its origins in the company Bill Wood founded in 1977. Its designs and manufactured disc brake products cover calipers and rotors alongside master cylinders, valves, fittings and lines. Motorsport, street-performance and specialized installations each require components selected for the complete system. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement.
Technical Details
- Manufacturer part number: 120-16953
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Left
- Construction and finish: Forged aluminum; Type III Anodize
- Pistons: 6; stainless steel; bore dimensions 1.75/1.38/1.38 inches
- Hydraulic piston area: 5.40 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.7 lb
- Mounting interface: Lug; mounting centers 5.75 inches
- Mounting-hole diameter: 0.55 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Replacement for the Wilwood AeroDM front conversion on Jeep Wrangler JK (2007–2018). Check the exact kit, 13.38 × 1.25-inch Wilwood rotor and 5.75-inch lug attachment. The JK piston combination differs from the JL/JT caliper despite the shared nominal rotor width.
Wilwood caliper specifications · Wilwood technical reference
With over 20 years of experience in parts and fitment, PMB Performance can help you compare the actual brake assembly. Include rotor width, mounting centers and the existing caliper details when requesting assistance.
