Product details

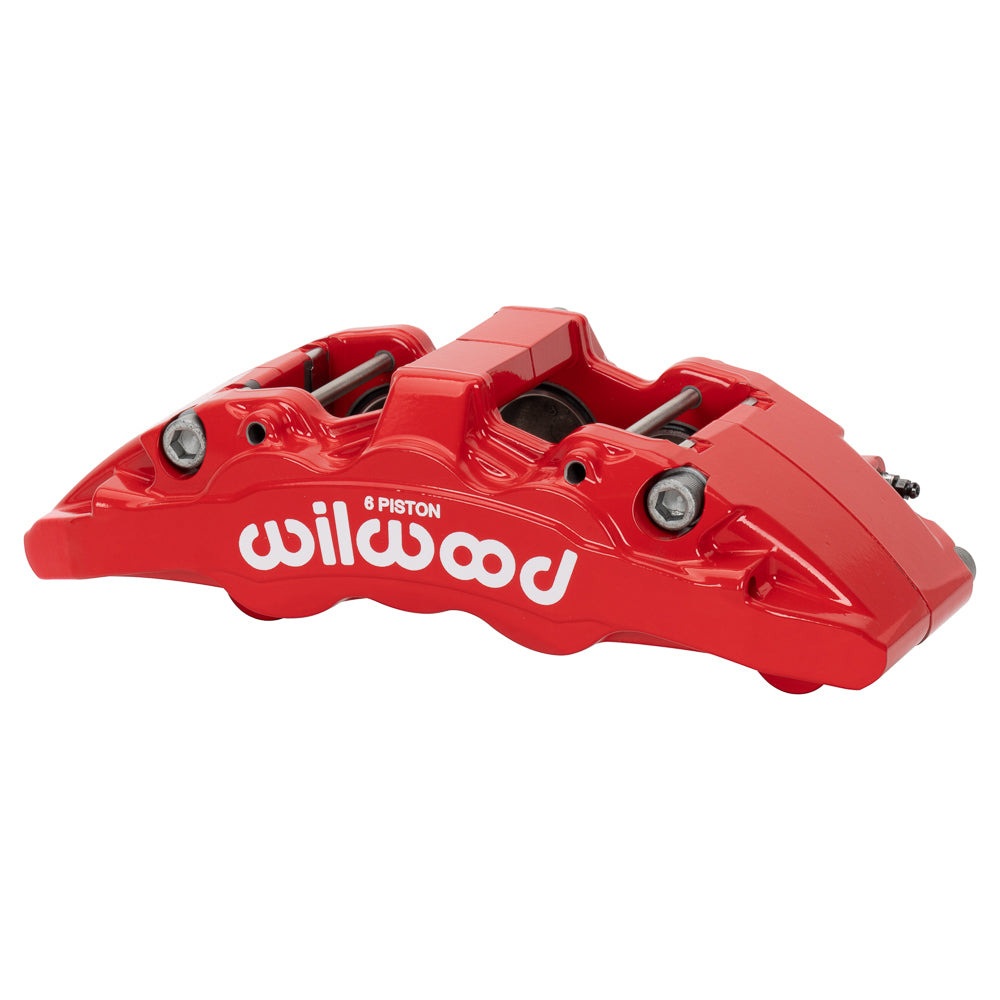

Wilwood supplies this front right AeroDM brake caliper for Jeep Wrangler JK with a red finish. Its 5.75-inch mounting span and 1.25-inch-wide rotor configuration are key checks when selecting a single caliper for an existing system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Components must be selected to suit the complete brake system. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement.
Technical Details
- Manufacturer part number: 120-16952-RD
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Red Powder Coat
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.7 lb
- Pistons: 6; stainless steel; bore dimensions 1.75/1.38/1.38 inches
- Hydraulic piston area: 5.40 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 5.75 inches
- Mounting-hole diameter: 0.55 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Replacement for the Wilwood AeroDM front conversion on Jeep Wrangler JK (2007–2018). Check the exact kit, 13.38 × 1.25-inch Wilwood rotor and 5.75-inch lug attachment. The JK piston combination differs from the JL/JT caliper despite the shared nominal rotor width.
Wilwood caliper specifications · Wilwood technical reference
With over 20 years of experience in parts and fitment, PMB Performance can help you compare the actual brake assembly. Include rotor width, mounting centers and the existing caliper details when requesting assistance.
