Product details

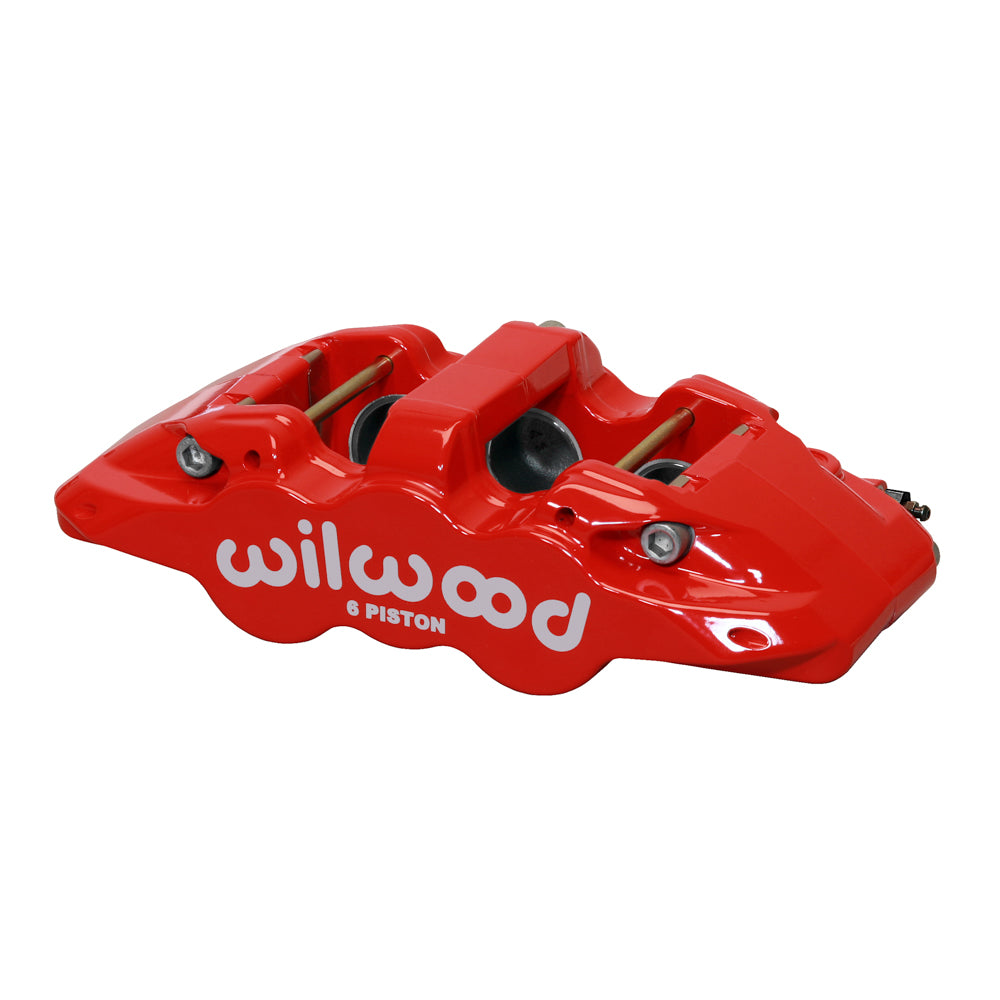

Check the 7.09-inch mounting centers before fitting this red Wilwood Aero6 left brake caliper. The component is sold individually and uses 1.75/1.62/1.62-inch bores in its 1.25-inch rotor-width configuration. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system. Aero6 is a forged six-piston hydraulic caliper with internal fluid passages. Differential piston bores, radial bracket spacing and rotor dimensions determine the assembly. Select the pad compound separately for the operating temperature and use of the complete brake system.
Technical Details
- Manufacturer part number: 120-16893-RD
- Component: Aero6 Radial Mount; one individual caliper
- Placement: Left
- Construction and finish: Forged aluminum; Red Powder Coat
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6620; shape number does not specify a friction compound
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–15.00 inches
- Caliper weight reference: 6.9 lb
- Mounting interface: Radial; mounting centers 7.09 inches
- Mounting-hole diameter: 0.45 inches
- Mount height: 2.09 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Compare the caliper drawing with your radial bracket before ordering. The 7.09-inch mounting centers and 1.75/1.62/1.62-inch bores must suit the installed rotor offset and hydraulic system. Use the left-hand caliper and keep the bleed arrangement in the specified orientation. A suitable pad sweep and clearance inside the wheel must be verified independently of rotor width.
