Product details

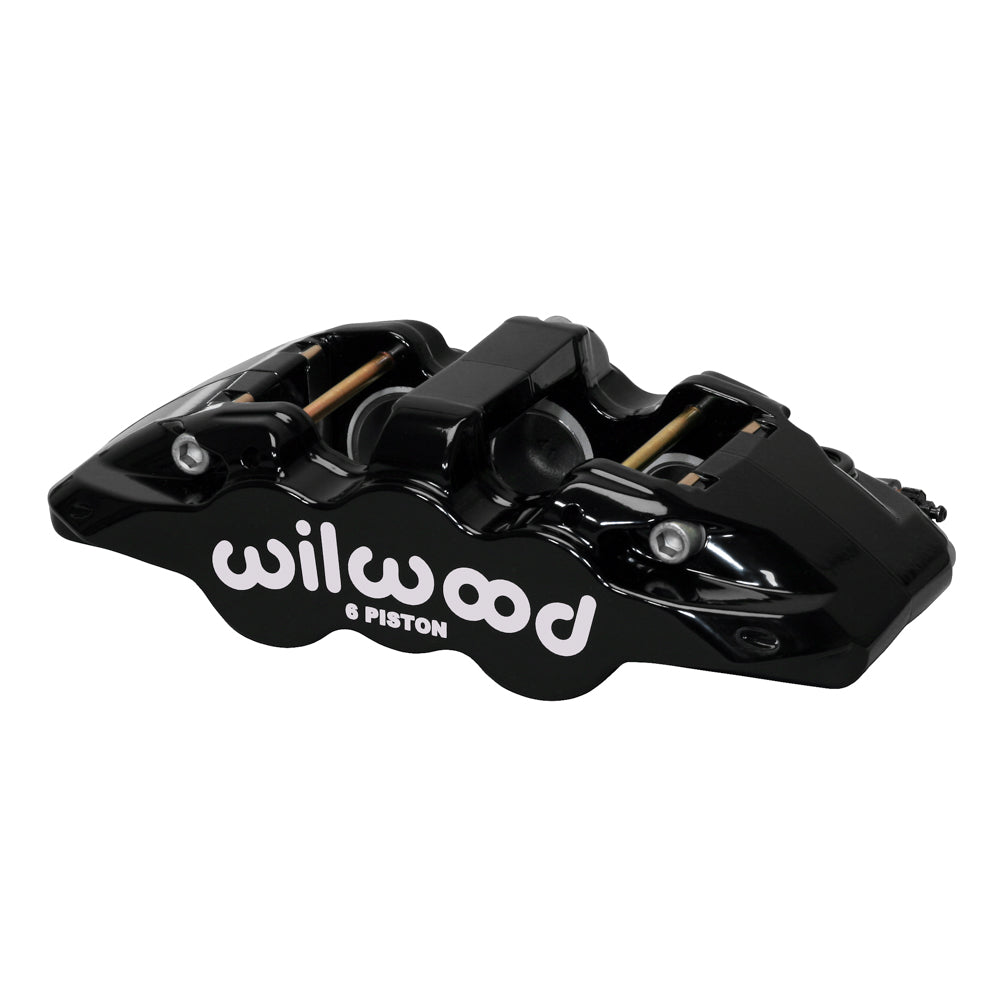

With 6 pistons and 1.75/1.62/1.62-inch bore dimensions, the black Wilwood Aero6 left brake caliper must be matched to the brake system rather than selected by finish alone. Its 1.25-inch rotor-width specification is separate from rotor diameter. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another. Aero6 is a forged six-piston hydraulic caliper with internal fluid passages. Differential piston bores, radial bracket spacing and rotor dimensions determine the assembly. Select the pad compound separately for the operating temperature and use of the complete brake system.
Technical Details
- Manufacturer part number: 120-16893-BK
- Component: Aero6 Radial Mount; one individual caliper
- Placement: Left
- Construction and finish: Forged aluminum; Black Powder Coat
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–15.00 inches
- Caliper weight reference: 6.9 lb
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6620; shape number does not specify a friction compound
- Mounting interface: Radial; mounting centers 7.09 inches
- Mounting-hole diameter: 0.45 inches
- Mount height: 2.09 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Compare the caliper drawing with your radial bracket before ordering. The 7.09-inch mounting centers and 1.75/1.62/1.62-inch bores must suit the installed rotor offset and hydraulic system. Use the left-hand caliper and keep the bleed arrangement in the specified orientation. A suitable pad sweep and clearance inside the wheel must be verified independently of rotor width.
Wilwood caliper specifications
For help selecting the correct caliper, contact PMB Performance with the brake package and measured mounting arrangement. Our over 20 years of parts and fitment experience supports a configuration check before purchase.
